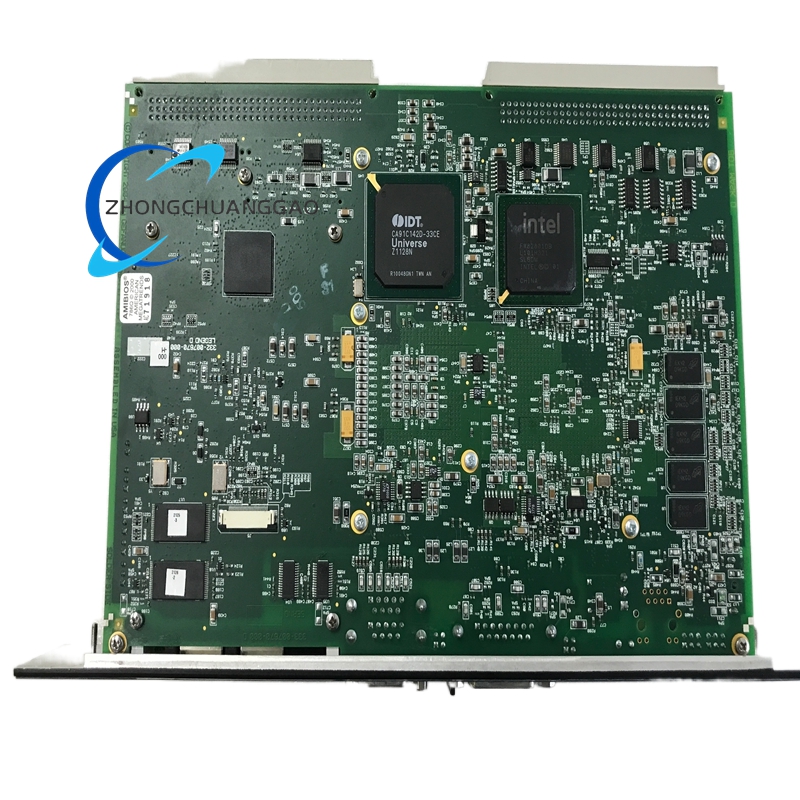

GE IC698CPE030-GK High-Performance CPU Module

Description

Technical Specifications

• Manufacturer: General Electric (GE Fanuc, now Emerson Automation)
• Model Number: IC698CPE030-GK
• Product Series: PACSystems RX7i
• Module Type: CPU Controller Module
• Microprocessor: 600 MHz Intel Pentium‑M (with floating‑point support)
• User Memory (RAM): 64 MB battery‑backed (volatile)
• Flash Memory: 64 MB non‑volatile (program/data storage)
• Boolean Execution Speed: 0.069 ms per 1000 contacts/coils
• I/O Capacity:
  • Discrete: 32,768 bits (32K)
  • Analog: 32,768 words (32K)
• Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C
• Program Blocks: Up to 512 blocks; 128 KB max per block
• Communication Interfaces:
  • Ethernet: Dual 10/100 Mbps RJ45 (auto‑sensing, half/full duplex)
  • Serial: 1 × RS‑232, 1 × RS‑485, 1 × dedicated RS‑232 Station Manager port
• Ethernet Protocols: SRTP, Modbus TCP/IP (Server/Client), Ethernet Global Data (EGD), Web Server/FTP (16 connections max)
• Serial Protocols: Modbus RTU Slave, SNP, Serial I/O
• Backplane Compatibility: VME64 standard (ANSI/VITA 1), supports Series 90‑70 I/O and VME modules
• Power Requirements: +5 VDC @ 3.2 A; ±12 VDC @ 0.003 A each
• Operating Temperature: 0°C to 50°C (32°F to 122°F); up to 60°C (140°F) with fan tray
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Real‑Time Clock (RTC): ±2 seconds/day drift; battery‑backed
• Dimensions (H × W × D): 166.6 mm × 39.1 mm × 177.8 mm (6.56″ × 1.54″ × 7.00″)
• Weight: 0.82 kg (1.81 lbs)
• Certifications: UL, CE, IEC 61131‑2, RoHS
• Warranty: 12 months

Key Features

1. Powerful Processing: 600 MHz Pentium‑M CPU with floating‑point math delivers fast execution for complex control algorithms and real‑time tasks.
2. Dual High‑Density Memory: 64 MB battery‑backed RAM preserves data during outages; 64 MB flash provides non‑volatile storage for programs, configurations, and recipes.
3. Extensive I/O Support: Controls up to 32K discrete and 32K analog points, accommodating large, complex automation systems.
4. Dual Ethernet Ports: Redundant 10/100 Mbps interfaces support SRTP, Modbus TCP/IP, and EGD for reliable plant‑floor and HMI communication.
5. Three Isolated Serial Ports: RS‑232, RS‑485, and dedicated Station Manager port enable flexible connectivity to legacy devices, HMIs, and programming tools.
6. Multi‑Language Programming: Supports Ladder Diagram, Structured Text, Function Block Diagram, and C for diverse developer preferences.
7. Battery‑Backed RTC: Maintains accurate timekeeping for event logging, timestamping, and scheduled operations during power failures.
8. VME64 Backplane Compatibility: Integrates with RX7i racks, Series 90‑70 I/O, and third‑party VME modules for seamless system expansion.
9. Web Server & FTP: Built‑in web server supports up to 16 concurrent connections for remote monitoring, diagnostics, and file transfers.
10. Rugged Industrial Design: Wide temperature tolerance and robust construction ensure reliable operation in harsh factory environments.

Application Scenarios

• Process Automation: Core controller for chemical, oil and gas, and pharmaceutical plants, managing complex loops, safety interlocks, and batch processes.
• Power Generation: Controls boiler systems, turbine auxiliaries, and balance‑of‑plant automation in thermal and renewable power facilities.
• Discrete Manufacturing: Drives automotive assembly lines, metalworking machinery, and packaging equipment with high‑speed, precise motion and logic control.
• Water & Wastewater Treatment: Manages pumping stations, filtration processes, and chemical dosing systems in municipal and industrial water facilities.
• Building Automation: Controls HVAC, lighting, and security systems in large commercial and industrial buildings.
• Material Handling: Oversees conveyor systems, cranes, and warehouse automation in logistics and distribution centers.
• Critical Infrastructure: Supports data centers, transportation systems, and smart grids requiring high availability and real‑time control.
