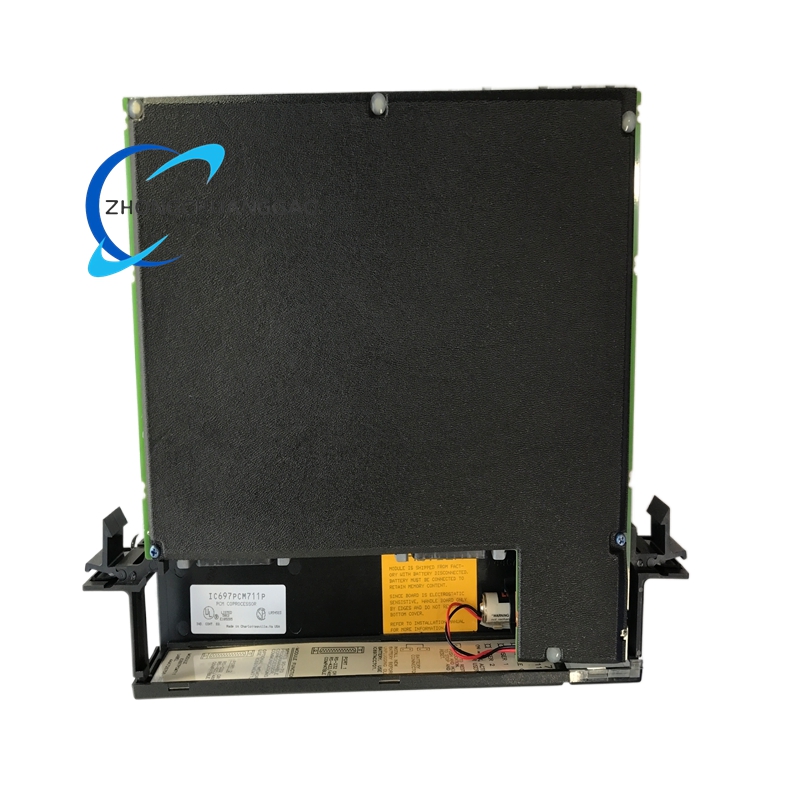

GE IC697PCM711P

Description

Technical Specifications

• Manufacturer: GE Fanuc (now Emerson)
• Series: Series 90‑70 PLC
• Model: IC697PCM711P
• Module Type: Programmable Coprocessor Module
• Processor: 16‑bit 80C186 microprocessor
• Clock Speed: 12 MHz
• Performance: 90% of IBM AT (80286) performance
• Base Memory: 96 KB battery‑backed CMOS RAM (user/program/data)
• Expansion Memory: Up to 512 KB (via optional daughterboard; 64/128/256/512 KB options)
• Programming Language: MegaBasic (extended BASIC for industrial control)
• Onboard Serial Ports: 2 (software‑configurable: RS‑232, RS‑422, or RS‑485)
• Baud Rate: Up to 19.2 Kbaud (individual ports); up to 9.6 Kbaud (simultaneous dual‑port)
• Communication Protocol: CCM2 (Coprocessor Communication Module 2)
• Backplane Interface: High‑speed parallel bus (direct access to PLC memory)
• Real‑Time Clock: Integrated, synchronized to PLC system clock
• Power Consumption: 1.0 A @ 5 VDC (from PLC backplane)
• Battery Type: Lithium (onboard, user‑replaceable)
• Battery Life: 10 years at 20°C (shelf life)
• Memory Retention: 6 months (nominal, no external power)
• Configuration: Software‑based (no DIP switches or jumpers)
• Status Indicators: 3 front‑panel LEDs (Power, Run, Fault)
• Reset Function: Momentary pushbutton (front panel)
• Operating Temperature: ‑10°C to +60°C
• Storage Temperature: ‑25°C to +70°C
• Humidity: 5%–95% non‑condensing
• Dimensions (W×H×D): 44 mm × 292 mm × 222 mm
• Weight: 0.5 kg (1.1 lbs)
• Compatibility: All Series 90‑70 CPUs, VME‑based backplanes

Key Features

1. Dual‑Tasking Processing: Offloads complex tasks from the main PLC CPU, enabling parallel execution of control logic and specialized applications (e.g., data analysis, protocol conversion).
2. MegaBasic Programming: Supports high‑level MegaBasic language for custom algorithm development, reducing programming time compared to ladder logic for complex math or communication tasks.
3. Dual Serial Communication Ports: Two independently configurable ports support simultaneous connection to HMIs, printers, barcode scanners, or third‑party devices, with flexible RS‑232/422/485 selection.
4. High‑Speed Backplane Access: Direct, high‑performance access to PLC system and user memory enables fast data exchange between the coprocessor and main CPU without network overhead.
5. Expandable Memory: Base 96 KB RAM supports small applications; optional 512 KB expansion enables large program storage, data logging, and recipe management.
6. Software Configuration: No hardware jumpers or DIP switches—all port and memory settings are configured via software, reducing setup time and errors.
7. Long‑Term Data Protection: Lithium battery provides 10‑year shelf life and 6‑month memory retention during power outages, ensuring program and data integrity.
8. Integrated Real‑Time Clock: Synchronized with the PLC’s clock for time‑stamped data logging, event scheduling, and sequence control.
9. Diagnostic LEDs & Reset: Three LEDs provide immediate status (power, operation, faults); a front‑panel reset button enables quick module restart without rack power‑down.
10. Industrial‑Grade Reliability: Conformal‑coated PCB, wide temperature tolerance, and vibration resistance ensure stable operation in harsh manufacturing and process environments.

Application Scenarios

• Complex Process Control: Executes advanced PID loops, statistical process control (SPC), and mathematical modeling in chemical, pharmaceutical, and food/beverage plants.
• Data Logging & Analytics: Collects, processes, and stores high‑volume production data for quality control, compliance reporting, and predictive maintenance.
• Custom Communication Gateways: Converts between industrial protocols (e.g., RS‑232 to RS‑485) or interfaces legacy devices (scanners, printers) with modern PLC systems.
• Operator Interface (HMI) Support: Runs custom HMI logic, data formatting, and display management to reduce main CPU load in large systems.
• Motion Control Preprocessing: Performs trajectory planning, position calculations, and axis synchronization for multi‑axis motion systems (packaging, textiles, robotics).
• Batch Management: Manages recipe storage, batch sequencing, and event logging for pharmaceutical, chemical, and food processing batch operations.
• Legacy System Integration: Connects older serial‑based equipment to Series 90‑70 PLCs, extending the life of existing machinery without full system replacement.

Compliance & Certifications

• CE Marking (Compliant with European EMC and Low Voltage Directives)
• UL Listed, CSA Certified
• Designed to meet global industrial safety and reliability standards
