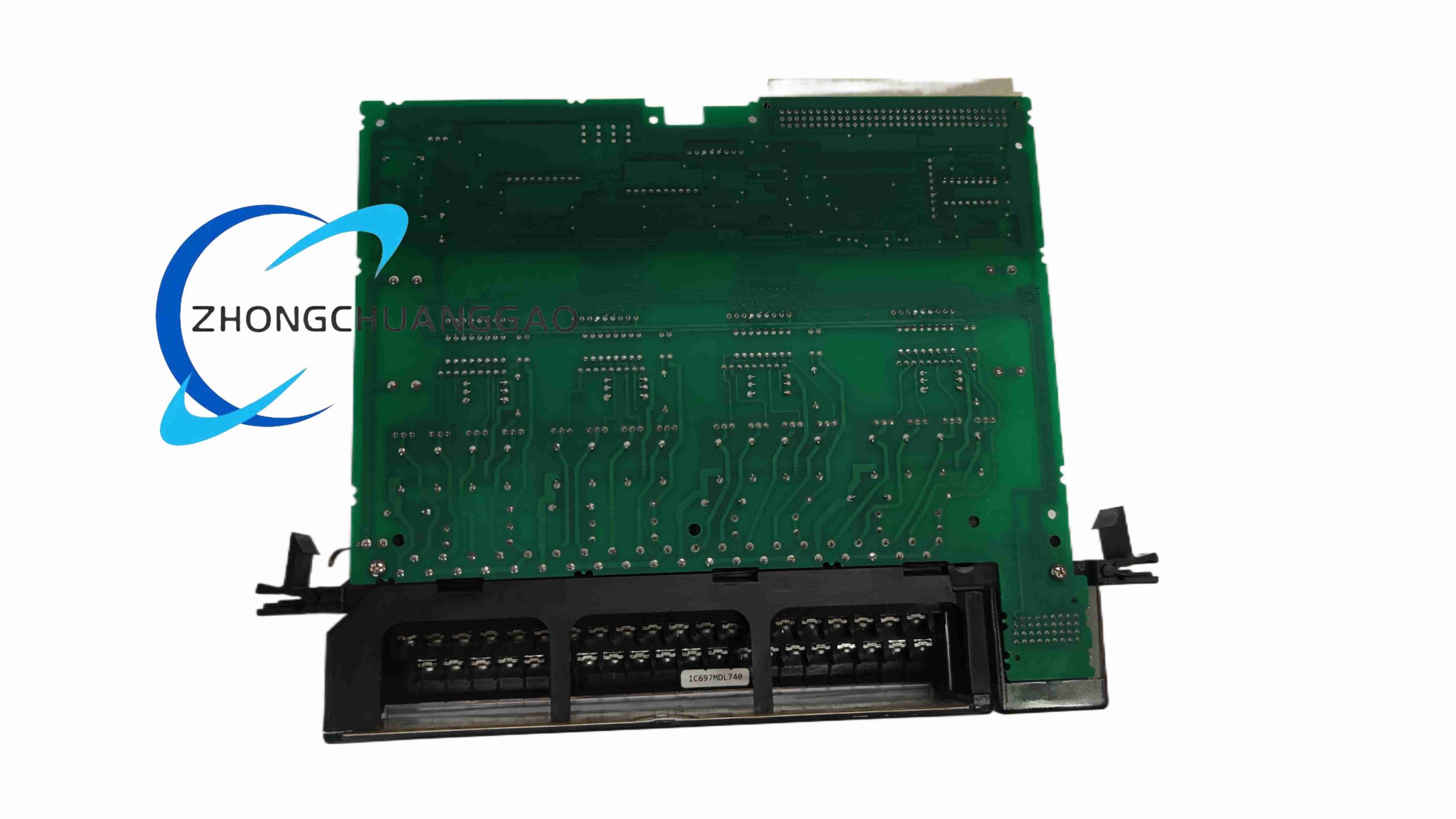

GE IC697MDL740

Core Technical Specifications

1. Channel Configuration
   • Total input channels: 16 independent AC input points, grouped into 4 isolated banks (4 channels per bank)
   • Rated field input voltage: 120V AC, 50/60Hz
   • Turn-on threshold voltage: Min 74V AC; Turn-off threshold voltage: Max 20V AC
2. Isolation & Electrical Safety
   • Galvanic isolation voltage per bank: 2500V AC between field side and logic backplane side
   • Input leakage current: ≤1.5mA at 120V AC input state
   • Internal transient surge suppression: Varistor + RC absorption circuit on each channel input terminal
3. Backplane Communication
   • Compatible with all Series 90-70 CPU units (IC697CPU789, IC697CPU772, IC697CPU760)
   • Data refresh cycle: Synchronized with PLC main scan cycle, max scan delay 0.8ms
4. Mechanical & Environmental
   • Form factor: Standard 90-70 single-slot plug-in rack module
   • Dimension: 32(W) × 340(H) × 130(D) mm
   • Operating ambient temperature: 0°C ~ +60°C
   • Storage temperature: -40°C ~ +85°C
   • Relative humidity: 5%–95%, non-condensing
   • Protection rating: IP20 for PLC cabinet installation
   • Certification: UL508, CE, RoHS industrial control compliance

Function & Performance Features

• Four isolated channel banks separate different field equipment signal circuits; fault short-circuit on one bank cannot damage signals on other banks
• Built-in overvoltage transient suppression components resist industrial power grid lightning surge, contactor switching voltage spike interference
• Front panel individual LED status indicator for each input channel; LED lights solid when corresponding field switch closes, convenient on-site wiring troubleshooting
• Hot-swappable rack design: Module can be removed and replaced without shutting down the entire Series 90-70 PLC rack system, minimizing production line downtime
• Reverse input voltage protection circuit prevents wiring polarity reversal damage to internal channel chips
• High noise immunity digital filtering algorithm configurable via PLC programming software to filter short transient false trigger signals from field contact bounce
• Backplane data parity check function automatically detects communication error between module and CPU, generates system fault alarm upon parity mismatch
• Wide voltage tolerance adapts unstable factory 120V AC control power supply fluctuation caused by heavy motor startup current draw

Working Principle

Material & Structural Characteristics

• Module Housing: Black UL94-V0 flame retardant rigid plastic rack frame, anti-static coating to reduce static electricity accumulation in dry cabinet environment
• Internal Circuit Board: Double-sided industrial PCB with reinforced isolation creepage distance between AC field circuit and low-voltage logic circuit, conformal coating for dust and moisture resistance
• Optocoupler Isolation Components: High breakdown voltage optoelectronic isolators for 2500V AC isolation rating
• Front Terminal Block: Screw-locking nickel-plated copper terminals for secure field cable connection, terminal label printing for channel number identification
• Backplane Connector: Gold-plated multi-pin edge connector to maintain stable electrical contact during long-term rack vibration from workshop machinery operation
• Status Indicators: Long-lifespan green LED lights with dust-proof transparent plastic window on front panel

Installation Requirements

1. Insert IC697MDL740 module into any empty single slot of GE Series 90-70 9-slot / 16-slot / 32-slot PLC rack, push fully forward until backplane connector clicks locked
2. Field 120V AC signal wiring must separate from 24V DC low-voltage control cables with minimum 6cm routing clearance to avoid cross-coupling interference
3. Each isolated bank group shall share unified field neutral ground; do not cross-connect neutral wires between different isolated banks
4. Install external 3A slow-blow fuse on each bank’s common input power line for overload short-circuit protection of field wiring
5. PLC cabinet must be equipped with air circulation fan to ensure internal temperature does not exceed 60°C under full 16-channel load operation
6. Avoid mounting PLC rack within 1m distance of large frequency converters, hydraulic power units to reduce electromagnetic noise affecting AC input signal accuracy
7. Torque terminal block screws to specified 0.8–1.0 N·m to prevent loose wiring contact resistance and false input trigger signals

Typical Application Scenarios

• Paper mill winding machine AC limit switch signal collection, matched with Magnetek HP4 DC drive control system
• Metal forming hydraulic press safety door, stroke limit 120V AC contact status monitoring
• Packaging conveyor belt AC proximity switch, material presence detection signal input
• Boiler and thermal equipment SAACKE burner auxiliary AC fault contact signal acquisition
• Mining hoist safety limit, overspeed interlock AC discrete signal monitoring
• General factory fan, pump, conveyor motor auxiliary AC contact running status feedback

Operation & Maintenance Precautions

1. Verify field input voltage is strictly 120V AC before wiring; direct connection of 240V AC will permanently burn internal channel optocoupler circuits
2. Quarterly visual inspection of front terminal blocks for oxidation, dust accumulation or loose screw terminals; clean terminals with dry brush if dust builds up
3. When replacing module hot-swap, confirm PLC rack CPU is not executing critical safety interlock logic to avoid temporary signal loss triggering equipment emergency stop
4. Do not apply conductive cleaning spray to front LED window or terminal blocks during cabinet maintenance; liquid ingress causes channel short-circuit failure
5. Annual isolation voltage withstand test between field side and logic backplane side to check optocoupler insulation aging
6. Configure digital input filter time in PLC programming software for high vibration workshop to eliminate contact bounce false triggering
7. If multiple channels show permanent off status with field switches closed, check bank common fuse first before module replacement
8. Store spare modules in dust-free, low-humidity warehouse environment to prevent PCB terminal oxidation before installation
