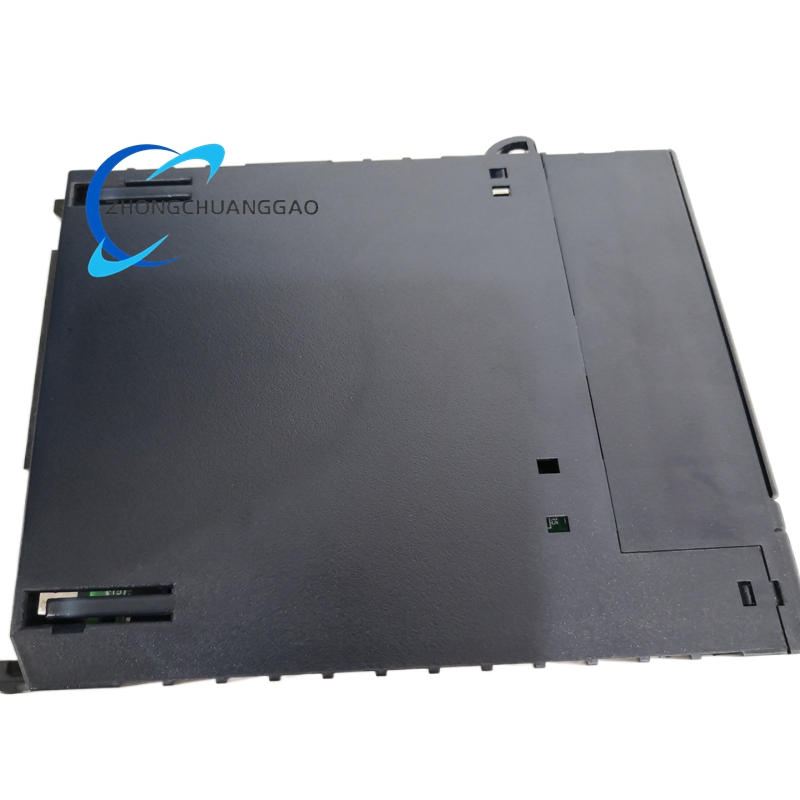

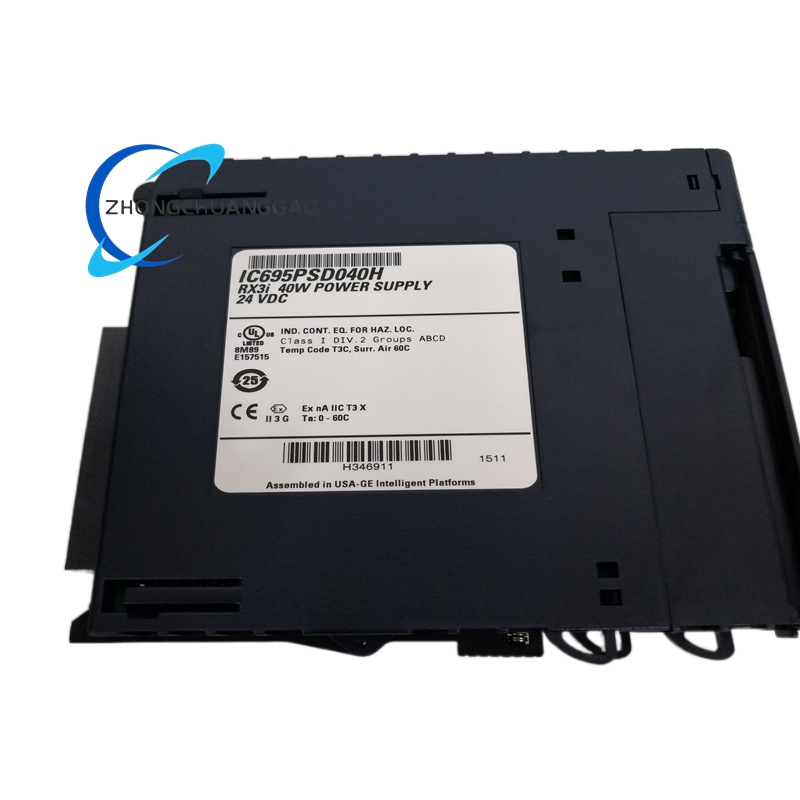

GE IC695PSD040‑F

Description

Technical Specifications

• Manufacturer: GE Fanuc (now Emerson)
• Series: PACSystems RX3i
• Model: IC695PSD040‑F
• Module Type: Universal Base Power Supply
• Input Voltage (Nominal): 24 VDC
• Input Voltage Range:
  • Start Mode: 18 VDC to 30 VDC
  • Run Mode: 12 VDC to 30 VDC
• Maximum Input Power: 60 Watts
• Output Power (Max): 40 Watts
• Output Voltages:
  • +5.1 VDC (main backplane power)
  • +3.3 VDC (internal module logic)
  • +24 VDC (auxiliary relay output)
• Output Current: 0–6 A (5.1 VDC)
• Efficiency: ≥90%
• Inrush Current: 100 A for 1 second
• Operating Temperature: ‑10°C to +60°C
• Storage Temperature: ‑25°C to +70°C
• Humidity: 5% to 95% non‑condensing
• Protection Rating: IP20
• Dimensions: 190 mm × 60 mm × 35 mm
• Weight: 0.34 kg (0.75 lbs)
• Backplane Compatibility: Universal Backplane Only

Key Features

1. High Reliability: Constructed with industrial‑grade components to ensure stable operation in harsh conditions, including electrical noise, vibration, and temperature fluctuations.
2. Wide Input Voltage Range: Accepts 12–30 VDC during operation and 18–30 VDC for startup, providing flexibility in power source selection and tolerance to voltage variations.
3. Multi‑Output Design: Delivers +5.1 VDC, +3.3 VDC, and +24 VDC to power various system components, eliminating the need for additional external power supplies.
4. Comprehensive Protection: Integrates over‑current, over‑voltage, short‑circuit, and over‑temperature protection mechanisms to safeguard the module and connected devices from damage.
5. LED Status Indicators: Equipped with dedicated LEDs for power status, power supply fault, over‑temperature, and overload, enabling real‑time monitoring and quick diagnostics.
6. Redundancy Support: Capable of being configured in redundant setups to enhance system availability and prevent downtime due to power supply failure.
7. Compact & Modular Design: Features a slim form factor and plugs directly into the RX3i backplane, facilitating easy installation, replacement, and maintenance.
8. High Efficiency: Boasts an efficiency rating of 90% or higher, reducing energy consumption and operational costs while minimizing heat generation.

Application Scenarios

• Manufacturing Automation: Powers assembly lines, robotic systems, and machine control in automotive, electronics, and consumer goods production.
• Process Industries: Used in chemical, oil and gas, pharmaceutical, and food and beverage plants for distributed control systems (DCS) and PLC‑based process control.
• Infrastructure & Transportation: Applied in railway signaling, subway control systems, and building automation (HVAC, lighting, security).
• Energy Sector: Supports power generation (gas turbines, wind turbines, solar inverters) and grid monitoring systems.
• Water & Wastewater: Powers pump stations, treatment plant controls, and remote monitoring units in municipal and industrial water systems.

Compliance & Certifications

• CE Marking (Compliant with European EMC and Low Voltage Directives).
• Designed to meet industrial safety and reliability standards for global deployment.
