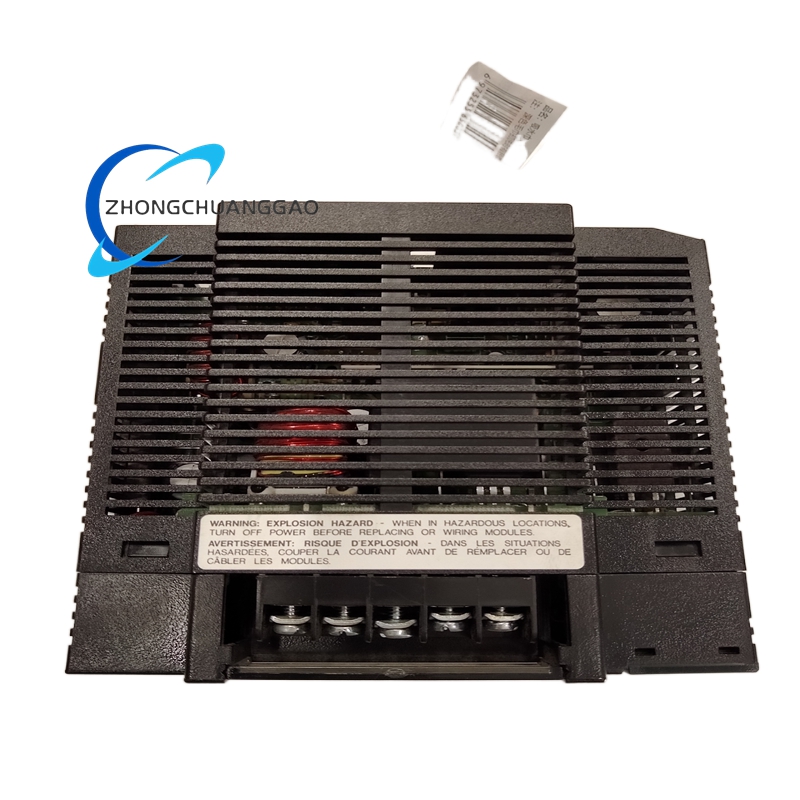

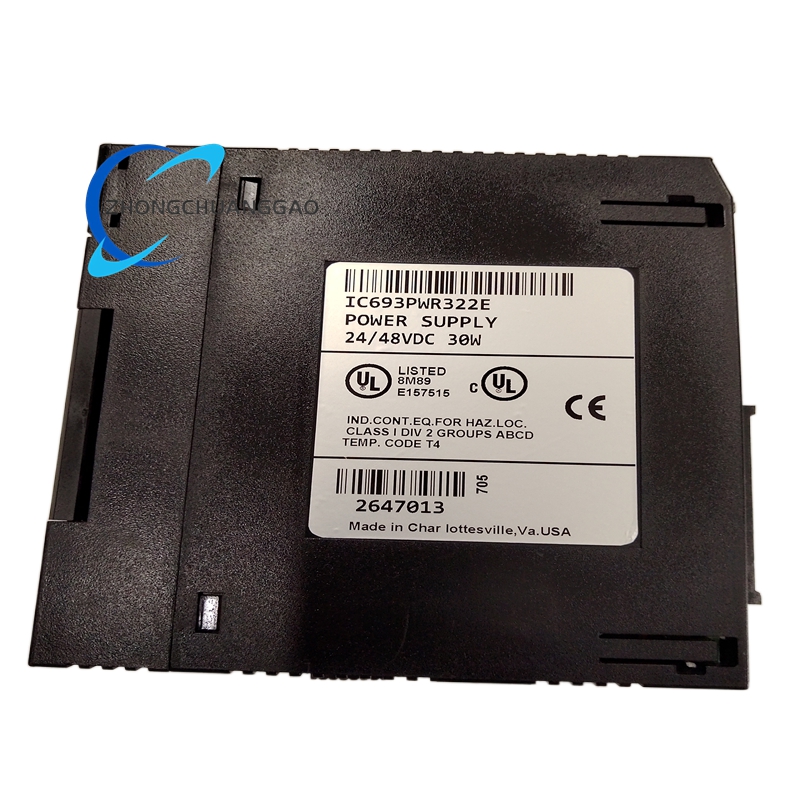

GE IC693PWR322E Series 90-30 24/48VDC Standard Power Supply Module

Description

Technical Specifications

• Manufacturer: General Electric (GE Fanuc / Emerson Automation Solutions)
• Series: Series 90-30 PLC System
• Model: IC693PWR322E
• Type: Standard DC Input Power Supply (Non‑Redundant)
• Input Voltage:
  • Nominal: 24VDC / 48VDC
  • Operating Range: 18–56VDC (Run); 21–56VDC (Start)
• Input Power: 50W maximum at full load
• Inrush Current: 4A peak, 100ms maximum duration
• Total Output Power: 30W (combined for all outputs)
• Outputs (Isolated):
  • +5VDC (Logic): 15W max, for CPU and backplane circuitry
  • +24VDC (Relay, Non‑Isolated): 20W max, for relay output modules
  • +24VDC (Isolated): 15W max, for digital input modules
• Output Voltage Tolerance: ±5% for all outputs
• Hold‑Up Time: ≥14ms at full load (maintains outputs during brief input interruptions)
• Isolation Voltage: 1500VAC between input and outputs; 1500VAC between output groups
• LED Indicators:
  • PWR: Input power present (green)
  • OK: Outputs within regulation (green)
  • RUN: System operational (green)
  • BATT: Low battery (if applicable, amber)
• Backplane Interface: Gold‑plated edge connector for reliable power distribution
• Mounting: Dedicated left‑side slot in Series 90-30 baseplates (e.g., IC693CHS397, IC693CHS398)
• Dimensions (H×W×D): 125mm × 40mm × 163mm (4.92in × 1.57in × 6.42in)
• Weight: 0.57kg (1.26lbs)
• Operating Temperature: -10°C to +60°C (14°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95%, non‑condensing
• Enclosure Rating: IP20 (protects against finger contact and solid debris)
• Certifications: CE, UL 508, CSA C22.2 No. 142
• Construction: Rugged black flame‑retardant plastic housing (UL 94 V‑0)

Key Features

1. 24/48VDC Wide Input Range: Accepts 18–56VDC, compatible with standard industrial DC power distribution systems.
2. Three Isolated Outputs: Dedicated +5VDC for logic, +24VDC non‑isolated for relays, and +24VDC isolated for inputs eliminates ground loops and noise.
3. 30W High‑Efficiency Output: Delivers sufficient power for full 5‑slot or 10‑slot Series 90-30 racks with mixed digital/analog I/O.
4. Enhanced Revision “E”: Upgraded components for improved reliability, longer service life, and extended cold‑temperature operation.
5. 14ms Hold‑Up Time: Maintains stable outputs during brief input voltage dips, preventing PLC resets and data loss.
6. LED Diagnostic Indicators: Clear visual status for input power, output regulation, system run, and battery health simplifies troubleshooting.
7. Industrial‑Grade Isolation: 1500VAC isolation between input and outputs protects sensitive PLC circuitry from electrical noise and voltage spikes.
8. Plug‑and‑Play Installation: Slides into standard power supply slot; no wiring required for backplane power distribution.
9. Compact Rugged Design: IP20 housing withstands vibration, temperature fluctuations, and harsh industrial environments.
10. Seamless System Compatibility: Works with all Series 90-30 CPUs, baseplates, and I/O modules; configured automatically by the PLC system.

Applications

• Factory Automation: Powers Series 90-30 PLCs controlling assembly lines, material handling, and packaging machinery.
• Process Control: Provides reliable power for water treatment, food & beverage, and chemical processing systems with 24/48VDC plant power.
• Remote I/O Systems: Supplies power to expansion baseplates (e.g., IC693CHS398) in distributed I/O architectures.
• Machine Tools: Powers CNC machines, metalworking equipment, and industrial robots with Series 90-30 control systems.
• Building Automation: Supports HVAC, lighting, and security system PLCs in commercial buildings with 24VDC emergency power.
• Legacy System Upgrades: Replaces older power supplies in existing Series 90-30 installations to improve reliability and extend system life.

Compatibility

• PLC Series: GE Fanuc Series 90-30 (all CPU models: IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU374).
• Baseplates: All Series 90-30 CPU and expansion baseplates (e.g., IC693CHS397, IC693CHS398).
• I/O Modules: All Series 90-30 digital (e.g., IC693MDL752), analog (e.g., IC693ALG221), and communication modules (e.g., IC693CMM311).
• Programming Software: Proficy Machine Edition (PME), Logicmaster 90-30, VersaPro.
