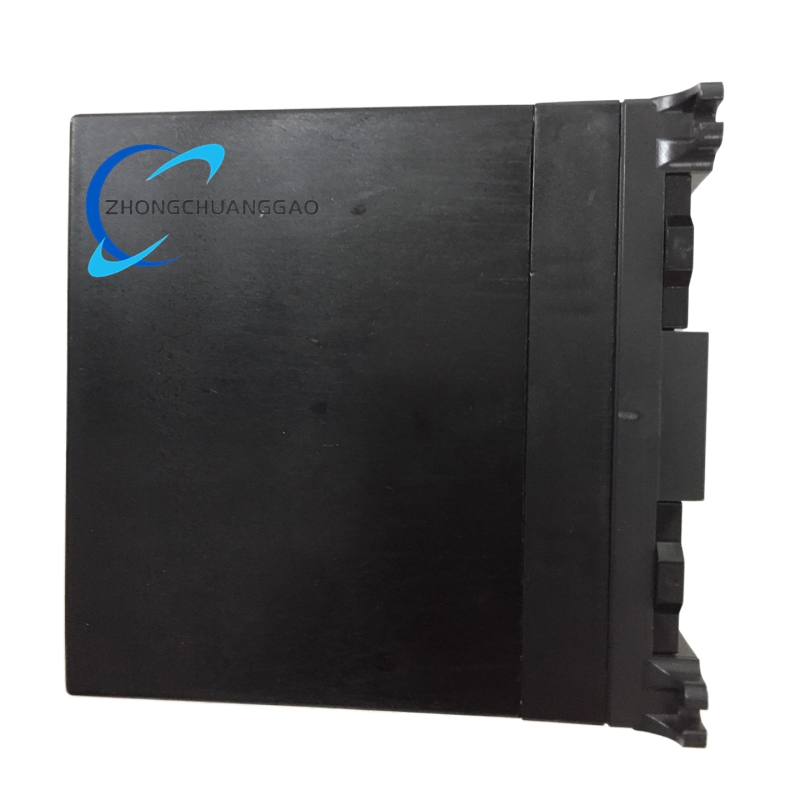

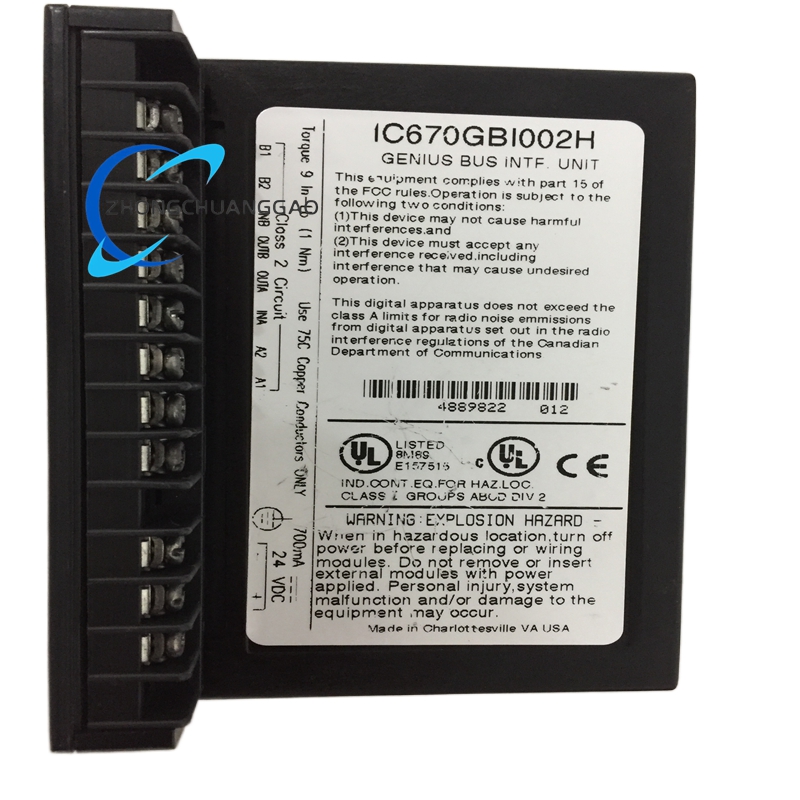

GE IC670GBI002 Genius Bus Interface Unit (BIU) for Field Control I/O

Description

Technical Specifications

• Manufacturer: GE Fanuc / Emerson Automation
• Part Number: IC670GBI002
• Product Type: Genius Bus Interface Unit (BIU)
• Compatible System: GE Field Control I/O, Genius Network, Series 90‑30/70 PLCs
• I/O Capacity: Up to 8 Field Control I/O modules per BIU
• Data Exchange: 128 bytes input / 128 bytes output per bus scan
• Communication Protocol: Genius Protocol (deterministic token‑passing)
• Baud Rate: Configurable up to 153.6 kbps
• Power Input: 18–30 VDC (nominal 24 VDC); 115 VAC optional
• Power Consumption: 16.8 W maximum at full load
• Inrush Current: 15–50 A peak, 3 ms maximum duration
• Backplane Power Output: 6.5 VDC ±5%, up to 1.4 A (24 VDC input)
• Holdup Time: 10 ms minimum
• Isolation: 1500 VAC for 1 minute (bus to logic); 250 VAC continuous
• LED Indicators: PWR, RUN, COM, FAULT
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5%–95% RH, non‑condensing
• MTBF: 183,000 hours
• Mounting: Standard DIN rail or panel mount
• Dimensions: 100 mm × 60 mm × 125 mm (3.9” × 2.4” × 4.9”)
• Weight: 0.68 kg (1.5 lbs)
• Certifications: CE, UL, CSA, RoHS

Key Features

1. Centralized Genius Bus Communication

• Serves as the local bus master for up to 8 I/O modules, managing all token‑passing communication on the Genius network.
• Exchanges 128 bytes input / 128 bytes output per scan, supporting high‑density analog and discrete I/O applications.
• Supports 153.6 kbps maximum baud rate for fast, deterministic data transfer in real‑time control systems.

2. Integrated Power Distribution

• Derives primary power from an external 24 VDC source (18–30 VDC range).
• Supplies 6.5 VDC backplane power to all connected I/O modules, eliminating the need for separate power supplies in the I/O station.
• Features 10 ms holdup time to maintain operation during brief power sags.

3. Redundancy & High Availability

• Supports hot‑standby CPU redundancy on the Genius bus, enabling seamless failover to a backup controller without process interruption.
• Compatible with ** Genius bus redundancy** configurations for mission‑critical applications.

4. Hot‑Swap & Maintainability

• Enables hot‑swap replacement of individual I/O modules (with compatible terminal blocks), allowing maintenance without shutting down the station or Genius network.
• Four on‑board LEDs (PWR, RUN, COM, FAULT) provide immediate visual status of power, operation, communication, and fault conditions.

5. Advanced Diagnostics & Protection

• Detects and reports module‑level faults (loss of communication, I/O errors, overvoltage/overcurrent) to the host PLC.
• Provides fault logging and status reporting for predictive maintenance.
• Industrial‑grade EMI/RFI shielding and electrical isolation protect against noise, spikes, and ground loops in harsh environments.

6. Compact & Flexible Installation

• DIN‑rail mountable with a compact footprint, saving cabinet space.
• Supports panel‑mount alternative for customized control cabinet layouts.

Applications

• Process Industries: Chemical, petrochemical, and pharmaceutical plants for distributed control of reactors, pumps, valves, and analytical instruments.
• Power Generation: Fossil and renewable power plants for boiler controls, turbine auxiliary systems, and balance‑of‑plant monitoring.
• Oil & Gas: Refineries, pipelines, and offshore platforms for monitoring pressure, flow, temperature, and controlling pumping and safety shutdown systems.
• Water & Wastewater: Treatment facilities for controlling pumps, blowers, valves, and monitoring water quality parameters (pH, dissolved oxygen, turbidity).
• Manufacturing: Automotive, food and beverage, and packaging lines for high‑speed assembly, material handling, and machine safety systems.
