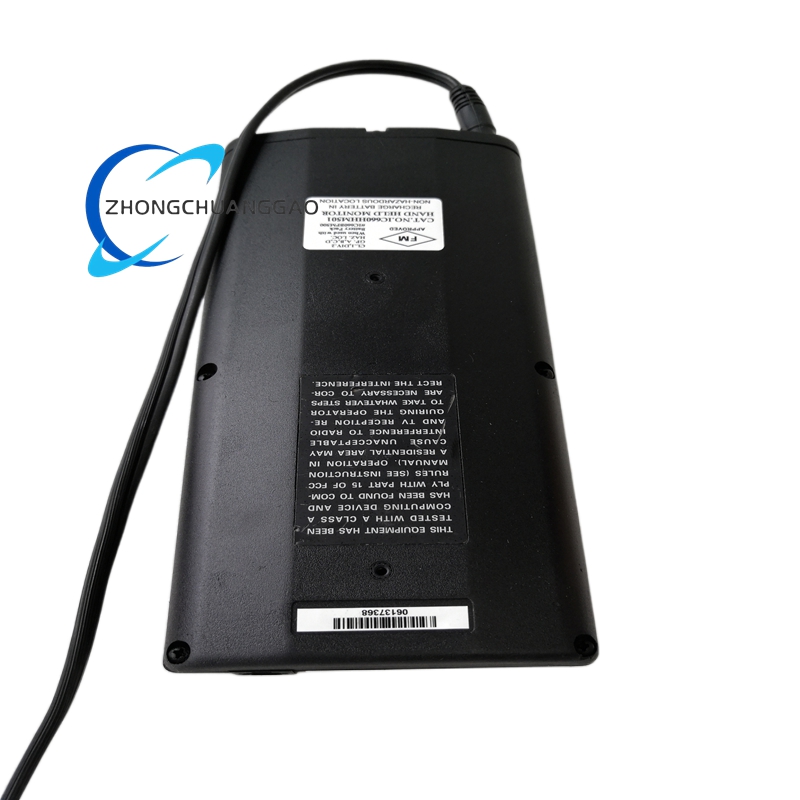

GE IC660HHM501N Genius Handheld Monitor

Description

Technical Specifications

• Manufacturer: GE Fanuc / Emerson Automation
• Model: IC660HHM501N
• Type: Portable Genius Handheld Monitor (HHM)
• Compatible Platforms: GE Genius I/O System, Series 90‑30/90‑70 PLCs
• Display: 4‑line × 16‑character backlit LCD
• Keypad: 20‑key sealed membrane keypad (function, numeric, operation keys)
• Communication: Genius protocol, 153.6 Kbaud standard data rate
• Languages: English, German, French, Italian
• Power Supply:
  • Battery: 4 × AA batteries (alkaline or rechargeable)
  • External: 115 VAC / 230 VAC, 47–63 Hz adapter
• Battery Life: Up to 20 hours continuous use (alkaline batteries)
• Physical Dimensions: 216 mm × 89 mm × 51 mm (8.5 in × 3.5 in × 2.0 in)
• Weight: 0.5 kg (1.1 lbs) including batteries
• Environmental Ratings:
  • Operating Temperature: 0°C to +60°C (32°F to 140°F)
  • Storage Temperature: −40°C to +85°C (−40°F to 185°F)
  • Humidity: 5%–95% non‑condensing
  • Vibration: 1.5 mm p‑p, 10–55 Hz
• Protection Class: IP20 (front panel sealed against dust and moisture)
• Certifications: CE, UL 508
• Security: Key switch for access restriction (prevents unauthorized configuration changes)
• Status: Active; available new, refurbished, or surplus

Key Features

• Portable On‑Site Diagnostics: Compact, lightweight design enables easy transport across factory floors, control rooms, or remote installation sites, eliminating the need for laptops or fixed programming terminals.
• Real‑Time Genius Network Monitoring: Access and display live data from any device on the Genius bus, including I/O block status, analog values, discrete states, and global data addresses.
• Comprehensive Fault Diagnostics: Identify network errors, bus scan time anomalies, device communication failures, and I/O module faults with built‑in diagnostic routines and clear text error messages.
• Hardware Configuration & Setup: Perform on‑site configuration of Genius I/O blocks, including address assignment, parameter tuning, and bus selection, without relying on offline programming software.
• I/O Forcing & Simulation: Manually force discrete and analog I/O values for testing, commissioning, or fault isolation, enabling engineers to verify system behavior under controlled conditions.
• Multi‑Language Support: Operate in English, German, French, or Italian, accommodating global maintenance teams and reducing language barriers in international automation projects.
• Dual Power Operation: Use AA batteries for portable, cable‑free operation or an external AC adapter for extended use in fixed locations, ensuring flexibility across different work scenarios.
• Secure Access Control: Integrated key switch restricts access to sensitive functions (e.g., configuration changes, I/O forcing), preventing unauthorized modifications and enhancing system security.
• Intuitive User Interface: Backlit LCD and dedicated function keys simplify navigation through menus, data screens, and diagnostic logs, reducing training time and minimizing user errors.
• Rugged Industrial Design: Sealed keypad, durable housing, and conformal‑coated internal components withstand dust, moisture, vibration, and temperature fluctuations in harsh factory environments.

Applications

• System Commissioning: Validate Genius I/O network installation, verify device addressing, test I/O point functionality, and calibrate analog sensors during new system setup.
• Routine Maintenance: Perform periodic checks of Genius bus health, monitor I/O device status, and clear minor faults without disrupting production schedules.
• Troubleshooting & Fault Resolution: Rapidly diagnose communication failures, I/O module errors, or wiring faults in distributed control systems, minimizing unplanned downtime.
• Legacy System Upgrades: Support migration and expansion of existing Genius I/O installations by reconfiguring addresses, testing new modules, and verifying network compatibility.
• Remote Site Support: Enable on‑site technicians to access and diagnose Genius network issues in remote or hard‑to‑reach locations, reducing the need for specialist travel.
• Training & Documentation: Assist in training maintenance teams on Genius system operation and providing real‑time data snapshots for system documentation and compliance records.

Additional Notes

• The IC660HHM501N is fully compatible with all Genius I/O blocks (e.g., IC660BBD025, IC660BBD026) and Series 90‑30/90‑70 PLCs, ensuring seamless integration into existing distributed automation architectures.
• It does not require additional software or drivers; direct connection to the Genius bus via a standard cable enables immediate access to network devices.
• For advanced programming or full system configuration, use Proficy Machine Edition software; the HHM is optimized for on‑site monitoring, diagnostics, and minor adjustments.
