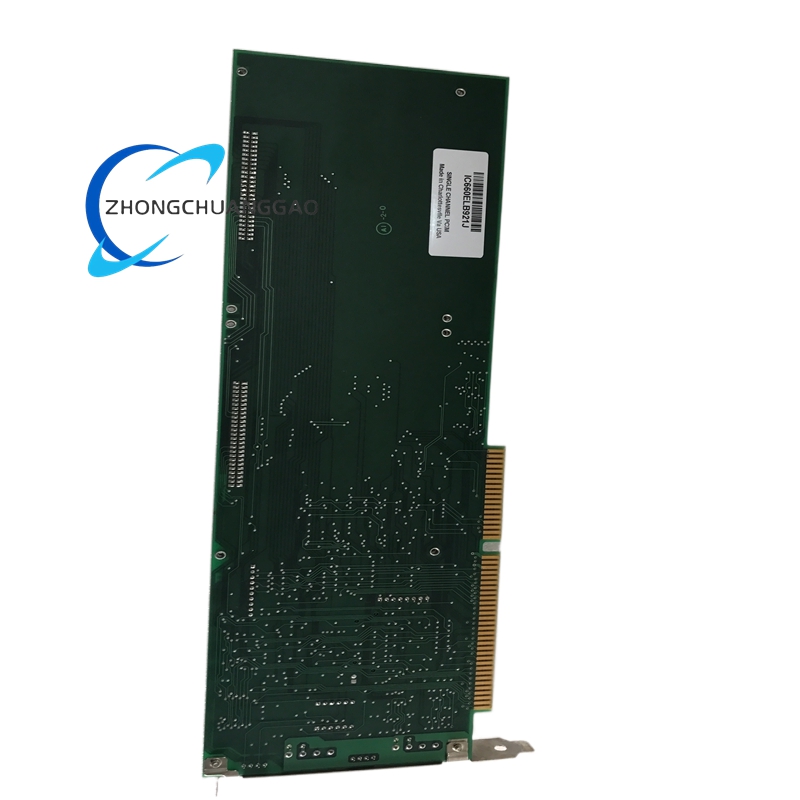

GE IC660ELB921J Single‑Slot PC Interface Module (PCIM) for Genius I/O Network

Description

Technical Specifications

• Manufacturer: GE Fanuc / Emerson Automation
• Part Number: IC660ELB921J
• Product Type: Single‑Slot PCIM (Genius Network Interface Card)
• Host Compatibility: IBM PC/AT/XT; GE Series 90‑30/70 PLCs; PACSystems RX7i/RX3i
• Network Support: 1 × Genius serial bus (up to 30 I/O devices per bus)
• Communication Protocol: Genius Protocol (deterministic token‑passing)
• Baud Rates: 38.4 kbps, 76.8 kbps, 153.6 kbps (user‑configurable)
• I/O Data Capacity: 8,000 input points; 8,000 output points
• Power Supply: 5 VDC ±5% (logic power from host)
• Current Consumption: 1.0 A (max, with one daughterboard)
• Bus Load: Input = 1 × LS TTL load; Output = 10 × LS TTL load
• LED Indicators: SUB OK (daughterboard health); COM OK (network communication)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Humidity: 5%–95% RH, non‑condensing
• Shock/Vibration: 5 G (operating); 10 G (storage)
• Dimensions: 221 mm × 107 mm × 20 mm (8.7” × 4.2” × 0.8”)
• Weight: 0.23 kg (0.51 lbs)
• Certifications: CE, UL, CSA, RoHS (J‑revision compliant)

Key Features

1. Single‑Channel Genius Network Connectivity

• Dedicated interface for one Genius bus, supporting up to 30 distributed I/O devices (analog, discrete, specialty blocks).
• High‑speed 153.6 kbps communication ensures deterministic, low‑latency data exchange for real‑time process control.

2. Robust Industrial Design & Protection

• Conformal coating protects against moisture, dust, and corrosive gases in harsh environments.
• Advanced EMI/RFI filtering suppresses electrical noise, voltage spikes, and interference from motors, drives, and power equipment.
• Wide operating temperature range (0°C to +60°C) ensures reliability in control rooms and field enclosures.

3. Seamless Host Integration & Configurability

• AT‑style single‑slot form factor fits standard industrial PC/PLC expansion slots for easy installation.
• Compatible with MicroGENI daughterboards (e.g., IC660ELB912G) for direct Genius bus connection.
• Software‑configurable as input‑only, output‑only, or bidirectional for flexible data handling.
• Supports CIMPLICITY HMI/SCADA and Genius Configuration Software for centralized monitoring and programming.

4. Comprehensive Diagnostics & Maintenance

• Dual SUB OK and COM OK LEDs provide immediate visual status of daughterboard health and network communication.
• Per‑bus diagnostics detect wiring faults, device failures, and communication errors for proactive maintenance.
• Hot‑swap capable (with compatible system configuration) allows module replacement without host or network shutdown, minimizing downtime.

5. Low Power & Cost‑Effective Operation

• Low 1.0 A (5 VDC) power consumption reduces load on host power supplies, ideal for space‑ and power‑constrained control panels.
• Single‑channel design offers a cost‑effective solution for small‑to‑medium distributed I/O systems, scaling up with dual‑channel PCIM (IC660ELB922) for larger applications.

Applications

• Power Generation: Fossil, nuclear, and renewable power plants for connecting distributed I/O (sensors, valves, actuators) to host PLCs for boiler control, turbine monitoring, and balance‑of‑plant automation.
• Oil & Gas: Offshore platforms, refineries, and pipelines for integrating remote I/O blocks monitoring pressure, flow, and temperature; controlling pumping systems and safety shutdown valves.
• Process Industries: Chemical, petrochemical, and pharmaceutical plants for small‑to‑medium scale distributed control of reactors, mixers, and material handling equipment.
• Manufacturing: Automotive assembly lines, packaging machines, and material handling systems for deterministic control of discrete and analog I/O across single production cells.
• Water & Wastewater: Treatment plants for connecting I/O monitoring pH, dissolved oxygen, and turbidity; controlling chemical dosing pumps and aeration blowers.
