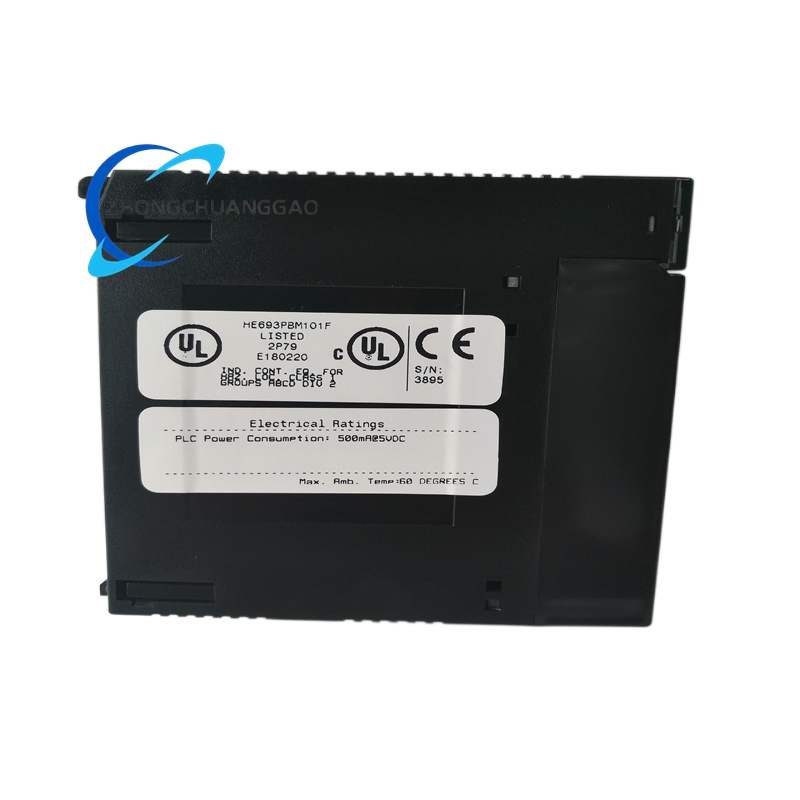

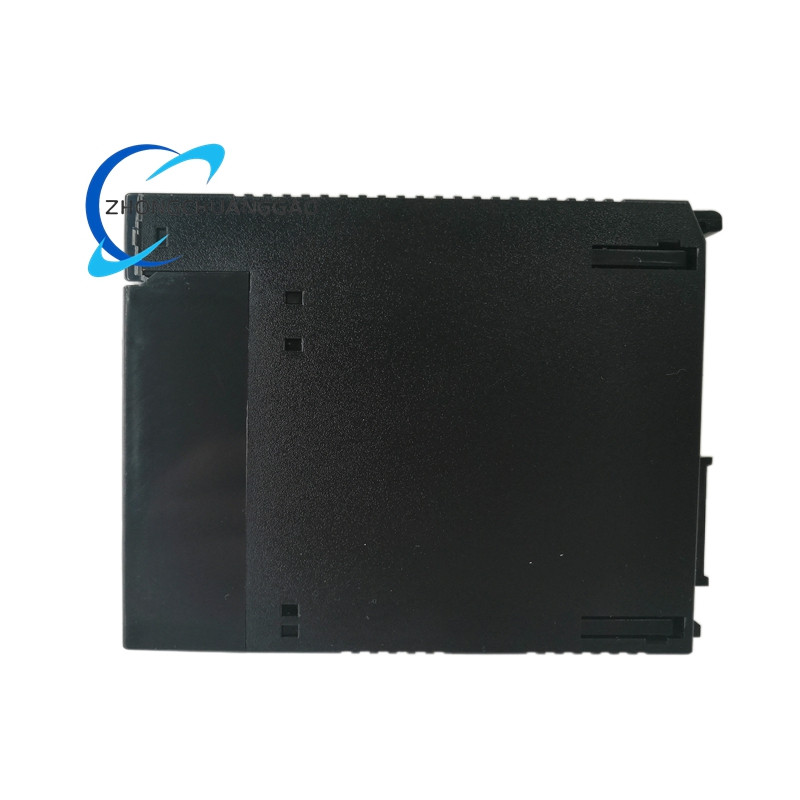

GE HE693PBM101 Profibus DP Master Module

Description

Technical Specifications

• Manufacturer: GE Fanuc / Horner Electric
• Model: HE693PBM101
• Type: Profibus DP Master Communication Module
• Compatible PLC Series: GE Series 90‑30 (CPU350 or higher)
• Processor: 24 MHz dedicated communication processor
• Firmware Requirement: Version 8.0 or higher
• Communication Protocol: Profibus DP (Decentralized Peripherals)
• Baud Rates Supported: 9.6 Kbps, 19.2 Kbps, 93.75 Kbps, 187.5 Kbps, 500 Kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps
• Max Network Distance: 1200 m (9.6 Kbps) down to 100 m (12 Mbps)
• Max Slave Devices: 32 DP slaves per segment (no repeaters); 64 with repeaters
• Data Capacity:
  • Input Data: 504 bytes maximum
  • Output Data: 504 bytes maximum
• Slave Status Area: 64 bits
• Power Supply: 12–48 VDC (from PLC backplane)
• Power Consumption: 1.5 W maximum
• Dimensions (W × H × D): 96 mm × 100 mm × 35 mm
• Weight: 120 g approximately
• Mounting: Standard Series 90‑30 rack slot (except slot 1)
• Environmental Ratings:
  • Operating Temperature: 0°C to +60°C
  • Storage Temperature: −40°C to +70°C
  • Humidity: 5%–95% non‑condensing
  • Vibration: 1.5 mm peak‑to‑peak, 10–55 Hz
• Protection Class: IP20
• Compliance: CE, UL, CSA for industrial control equipment
• Status: Discontinued legacy product; available as new surplus, refurbished, or spare parts

Key Features

• Profibus DP Master Functionality: Operates as a Profibus DP master to control and monitor up to 32 slave devices, enabling seamless integration with drives, remote I/O, and field sensors.
• High‑Speed Deterministic Communication: Supports baud rates up to 12 Mbps with fixed data exchange cycles, ensuring precise, real‑time control for time‑critical industrial applications.
• Extensive Network Compatibility: Interoperates with all standard Profibus DP‑compliant devices from third‑party manufacturers, reducing vendor lock‑in and simplifying system design.
• Robust Diagnostic LEDs: Equipped with POWER, RUN, and OK LEDs for immediate visual status indication of power, module operation, and network communication health.
• Configurable Data Mapping: Allows flexible mapping of Profibus I/O data to PLC memory registers, supporting customized data exchange configurations for diverse application needs.
• Sync and Freeze Modes: Supports Profibus DP Sync (synchronized output) and Freeze (frozen input) modes for coordinated multi‑device control and consistent data sampling.
• Compact Rack‑Mount Design: Fits into standard Series 90‑30 rack slots with a lightweight, space‑saving form factor, minimizing cabinet space and wiring complexity.
• Industrial‑Grade Reliability: Built with conformal‑coated PCBs and rugged components to withstand vibration, dust, and temperature fluctuations in factory floor environments.
• Easy Configuration: Configured via GE VersaPro software (v1.10 or higher) for simple setup, parameter tuning, and network diagnostics.

Applications

• Manufacturing Automation: Connects PLCs to AC drives, servo systems, and remote I/O modules in automotive assembly lines, machine tools, and packaging machinery for coordinated motion control.
• Process Industries: Integrates pressure, temperature, and flow sensors with control systems in chemical, petrochemical, and pharmaceutical plants for real‑time process monitoring and regulation.
• Power Generation: Links GE Series 90‑30 PLCs to turbine governors, generator exciters, and boiler auxiliary equipment in thermal and hydroelectric power stations for reliable plant control.
• Water & Wastewater: Connects PLCs to pump controllers, valve actuators, and level transmitters in water treatment plants and sewage systems for efficient process automation and monitoring.
• Oil & Gas: Deployed in pipeline pumping stations, refineries, and offshore platforms to control and monitor Profibus‑compliant drives, compressors, and safety systems.
• Legacy System Retrofits: Serves as a critical replacement for aging communication modules in existing Series 90‑30 installations, extending the operational life of legacy control systems.

Additional Notes

• The HE693PBM101 is a foundational communication module for GE’s legacy Profibus DP networks, widely deployed in industrial facilities worldwide.
• It is fully compatible with GE’s LogicMaster and VersaPro programming software, enabling seamless integration with Series 90‑30 PLC programs.
• For new installations, GE recommends the IC693PBM200 Profibus DP master module, which supports up to 125 slaves, higher data capacity, and advanced diagnostic features, while maintaining backward compatibility with existing Profibus networks.
