Product Short Description

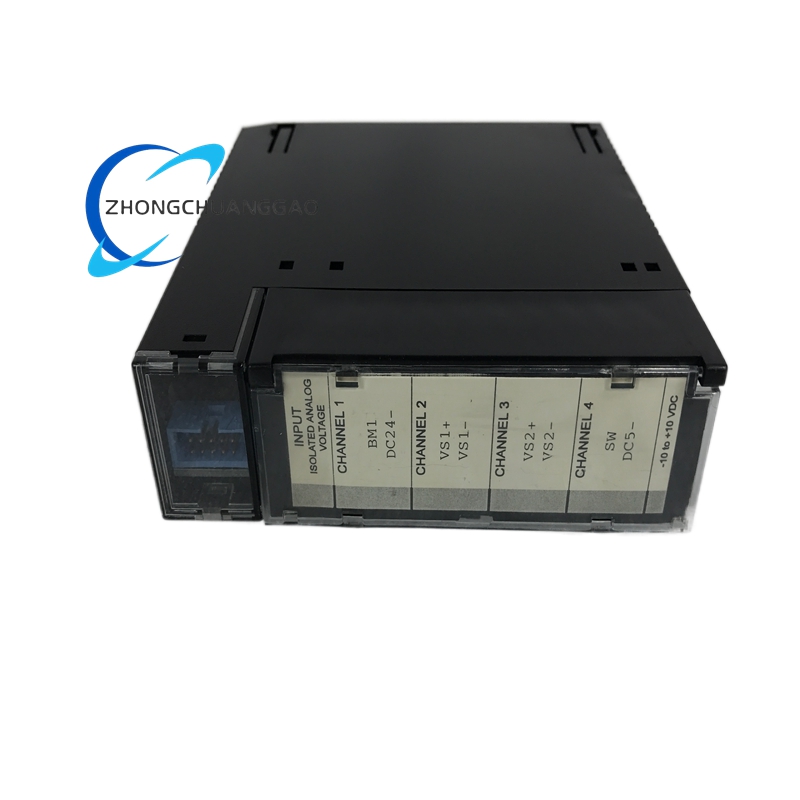

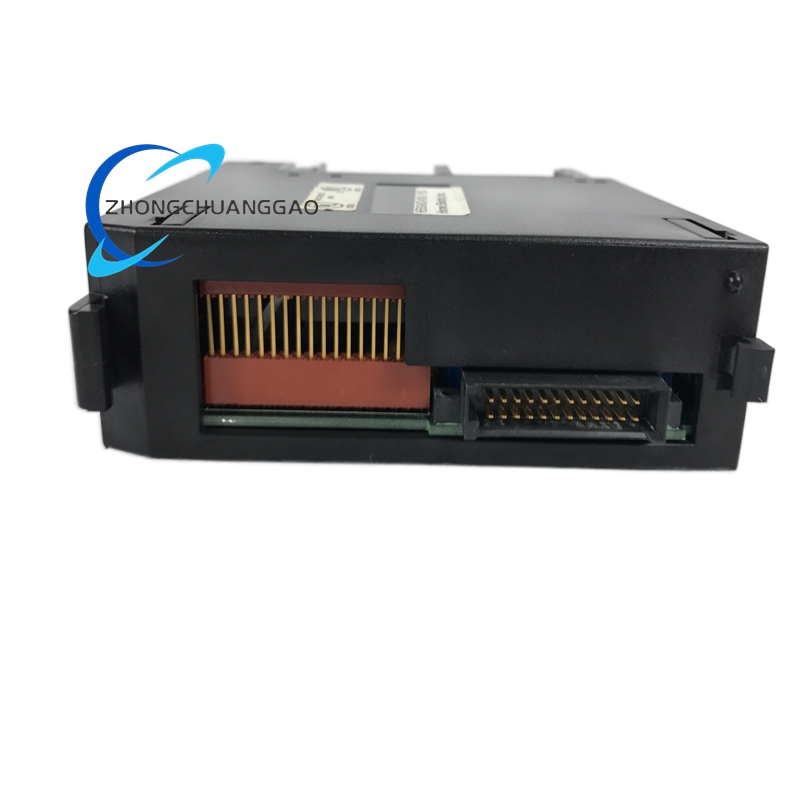

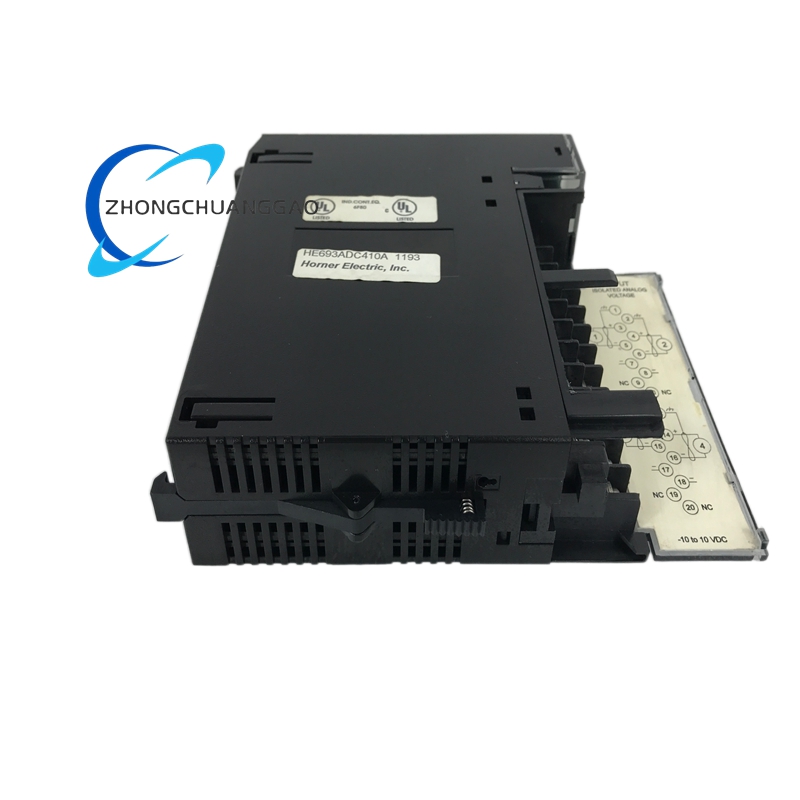

The GE HE693ADC410 is a high-performance, 4-channel isolated analog input module designed for the GE Series 90-30 PLC system (Horner APG product line). It converts ±10VDC analog signals from field sensors into high-resolution digital values for the PLC CPU, ensuring accurate and reliable data acquisition in electrically noisy industrial environments. The module provides 2000VDC galvanic isolation between channels and to ground, protecting the control system from voltage spikes, ground loops, and EMI/RFI interference. It integrates on-board filtering, fault detection, and programmable alarm setpoints, making it ideal for precision process monitoring and control applications.
Description
Technical Specifications
- Manufacturer: General Electric (GE) / Horner APG
- Series: HE693 / Series 90-30 PLC
- Type: Isolated Analog Input Module
- Number of Channels: 4 (fully isolated, channel-to-channel and channel-to-ground)
- Input Signal Range: ±10VDC
- Resolution: 14-bit (16,384 steps)
- A/D Conversion Type: Integrating type
- Input Impedance: 1 Megohm
- Maximum Overvoltage: ±15VDC (continuous)
- Isolation Voltage: 2000VDC (channel-to-channel, channel-to-ground)
- Common-Mode Rejection: >100dB
- Analog Filtering: 1kHz, 3-pole Bessel filter
- Digital Filtering: Programmable (1–128 samples/update)
- Conversion Accuracy: ±0.05% full scale (maximum error)
- Data Format: Digital values scaled -32,000 to +32,000 (stored in PLC %AI registers)
- Power Consumption: 0.7W / 140mA @ 5VDC; 1.2W / 50mA @ 24VDC
- Surge Current (Power-Up): 200mA @ 5VDC; 100mA @ 24VDC
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95%, non-condensing
- Dimensions (W×H×D): 25mm × 98mm × 120mm (0.98 in × 3.86 in × 4.72 in)
- Weight: 0.23kg (0.51 lbs)
- Mounting: Standard DIN rail (compatible with Series 90-30 PLC racks)
- Certifications: CE, UL 508, CSA C22.2 No. 142
Key Features
- High-Isolation Design: Delivers 2000VDC galvanic isolation between all channels and ground, eliminating ground loops and protecting the PLC from high-voltage transients and electrical noise.
- 14-Bit High Resolution: Provides precise analog-to-digital conversion with 14-bit resolution, ensuring accurate measurement of low-level sensor signals for tight process control.
- ±10VDC Universal Input: Compatible with a wide range of industrial sensors (pressure, temperature, flow, level) that output standard ±10VDC analog signals.
- Programmable Alarm Setpoints: Each channel features a user-configurable setpoint (via PLC %AQ registers). When the input exceeds the setpoint, a corresponding discrete %I alarm bit activates for immediate fault notification.
- Dual Filtering System: Combines hardware Bessel filtering (1kHz) and programmable digital filtering (1–128 samples) to suppress electrical noise and stabilize fluctuating sensor signals.
- LED Status Indicators: Equipped with power and channel status LEDs for real-time visual monitoring of module operation and fault conditions.
- Seamless PLC Integration: Directly compatible with GE Series 90-30 PLCs, with data mapped directly to the CPU’s %AI (analog input) register table for easy programming.
- Robust Industrial Construction: Built with high-quality, vibration-resistant components and a rugged plastic housing, ensuring reliable performance in harsh manufacturing and process environments.
Applications
- Process Control Industries: Deployed in chemical, petrochemical, pharmaceutical, and food & beverage plants for monitoring pressure, temperature, flow, and level sensors.
- Power Generation: Used in thermal power plants, hydroelectric facilities, and renewable energy systems to collect analog data from turbine, generator, and boiler sensors.
- Oil & Gas: Integrated into pipeline monitoring systems, compressor stations, and refineries for precise measurement of pressure, vibration, and flow parameters.
- Water & Wastewater Treatment: Applied in treatment plants to monitor pH, dissolved oxygen, turbidity, and tank levels for automated process control.
- Manufacturing & Machinery: Utilized in automotive, aerospace, and general manufacturing for monitoring machine vibration, temperature, and hydraulic pressure.
- Building Automation: Deployed in large commercial buildings and data centers for HVAC system monitoring, including temperature, humidity, and air flow.
- Legacy System Upgrades: Ideal for modernizing aging GE Series 90-30 PLC systems, extending operational life while maintaining high-precision analog data acquisition capabilities.
Compatibility
- PLC Compatibility: GE Series 90-30 PLC (all CPU models)
- Backplane Compatibility: No backplane restrictions; fits all standard Series 90-30 I/O racks
