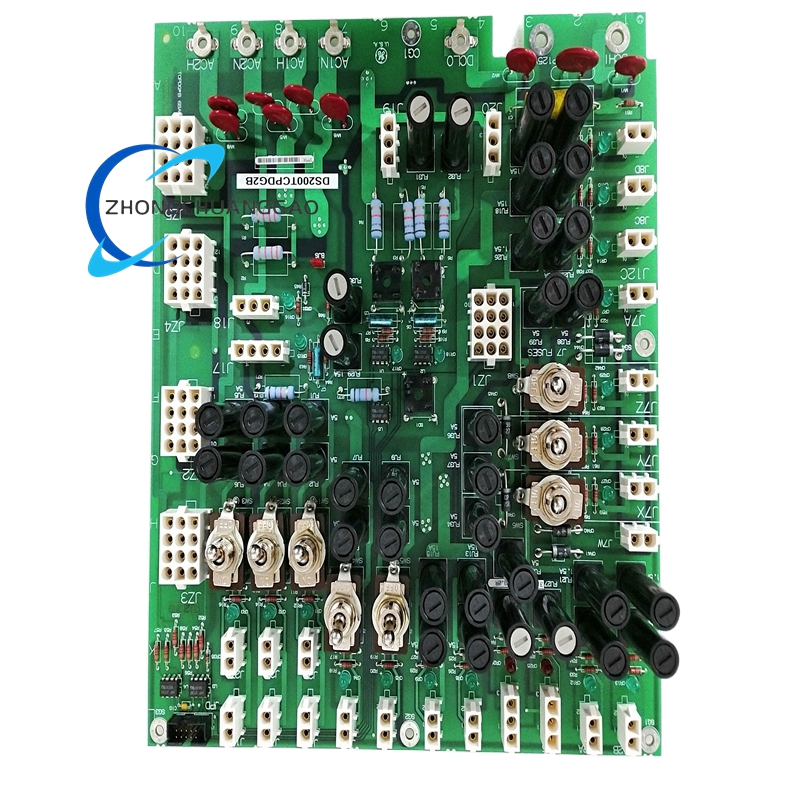

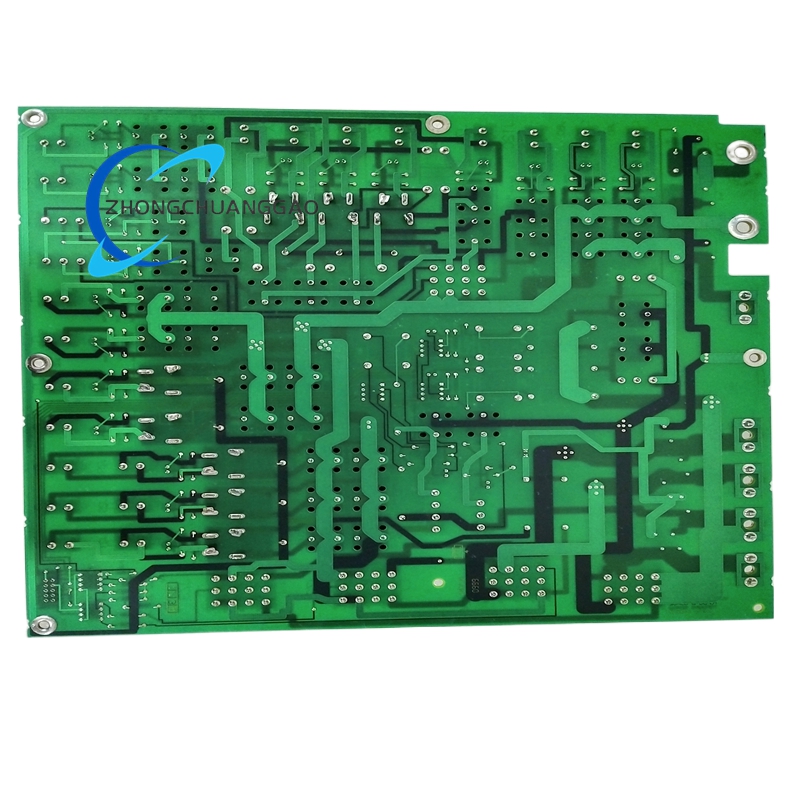

GE DS200TCPDG2B Power Distribution Board

Description

Technical Specifications

• Manufacturer: General Electric (GE)
• Series: DS200 / Mark V Speedtronic™
• Type: Power Distribution Board (PDB)
• Input Voltage: 125 VDC (primary distribution voltage)
• Auxiliary Input: 24 VDC (for control logic and LED indicators)
• Fuse Configuration: 36 individual fuses (fast-acting, 5A rating)
• Status Indicators: 36 green “OK” LEDs (one per fuse)
• Configuration Switches: 8 DIP toggle switches for core enable/disable
• Signal Terminals: 4 dedicated terminals for I/O signal routing
• System Connector: 1 × 10-pin header for main system interfacing
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 168 mm × 150 mm × 55 mm (6.6 in × 5.9 in × 2.2 in)
• Weight: 0.45 kg (1.0 lbs)
• PCB Protection: Conformal coated for dust and moisture resistance
• Mounting: Panel-mount design for standard Mark V rack installation
• Reliability: MTBF > 150,000 hours under full load conditions

Key Features

1. Centralized Power Distribution: Distributes regulated 125 VDC power to all Mark V system cores, I/O boards, and auxiliary components, ensuring consistent voltage levels across the control system.
2. Comprehensive Overcurrent Protection: Equipped with 36 individual fast-acting fuses, each protecting a specific circuit, preventing cascading failures from short circuits or overloads.
3. Real-Time Status Monitoring: Features 36 green “OK” LEDs, each illuminating to confirm its corresponding fuse is intact and power is active, enabling immediate visual fault detection.
4. Flexible System Configuration: Includes 8 DIP toggle switches that allow operators to independently enable or disable individual control cores during maintenance or system reconfiguration.
5. Integrated Signal Routing: Provides 4 dedicated signal terminals for routing critical I/O signals between the power distribution board and other system modules, simplifying cabinet wiring.
6. Robust Industrial Design: Constructed with high-temperature, vibration-resistant components and conformal coating, ensuring reliable operation in harsh environments with electrical noise and temperature fluctuations.
7. Seamless Mark V Integration: Designed as a direct-fit replacement for Mark V systems, supporting plug-and-play installation without requiring system reconfiguration.

Applications

• Power Generation Plants: Deployed in gas turbine, steam turbine, and combined-cycle power plants as the primary power distribution hub for Mark V control systems.
• Thermal Power Facilities: Used in boiler control rooms to distribute power to I/O modules, excitation systems, and auxiliary monitoring equipment.
• Oil & Gas Industry: Integrated into turbine-driven compressor stations and power generation units for reliable control system power management.
• Industrial Process Control: Applied in large-scale manufacturing and processing plants that utilize GE Mark V turbine control systems for prime mover management.
• Legacy System Maintenance & Upgrades: Essential for maintaining and modernizing aging Mark V control systems, ensuring continued operational reliability and extending service life.

Compliance & Certifications

• Complies with IEC 61000-6-2 and IEC 61000-6-4 standards for electromagnetic compatibility (EMC) in industrial environments.
• Meets UL 508A and CSA C22.2 No. 142 safety requirements for industrial control panels.
• Manufactured under GE’s ISO 9001-certified quality management system, ensuring consistent performance and reliability.
