Product Short Description

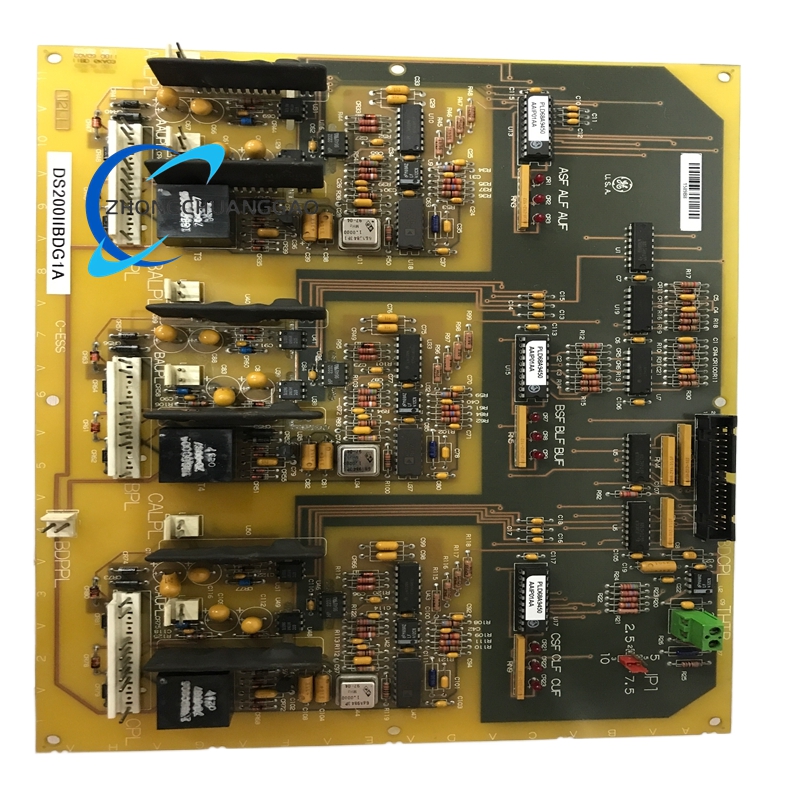

The GE DS200IIBDG1A is a high-performance Insulated Gate Bipolar Transistor (IGBT) gate driver board designed as a core component of the GE Mark V Speedtronic™ turbine control system. It delivers precise, high-speed switching control for IGBT power modules, enabling efficient and reliable operation of gas turbines, steam turbines, and generator excitation systems. Built with industrial-grade components and rigorous quality control, the board ensures exceptional stability, electrical isolation, and fault tolerance in extreme power generation environments.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: DS200 / Mark V Speedtronic™
- Type: IGBT Gate Driver Board
- Power Supply: 24VDC (nominal; operating range: 18–30VDC)
- Input Current: 1.2A @ 24VDC
- Rated Voltage: 600V
- Rated Current: 200A
- Switching Frequency: Up to 20kHz
- Isolation Voltage: 2500VDC (galvanic isolation between control and power circuits)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 220mm × 180mm × 30mm (8.66 in × 7.09 in × 1.18 in)
- Weight: 1.36kg (3 lbs)
- Connectors: 11 dedicated connectors for power, control, and IGBT interfacing
- Diagnostic LEDs: 9 red indicator LEDs for real-time status monitoring
- Configuration: 1 factory-set Berg-type jumper (J1) for gate turn-on delay selection
- Protection Features: Overvoltage, overcurrent, overtemperature, and short-circuit protection
- Reliability: MTBF > 120,000 hours
Key Features
- High-Speed IGBT Driving: Delivers precise gate control signals with fast rise/fall times, supporting switching frequencies up to 20kHz for efficient power conversion.
- Galvanic Isolation: Provides 2500VDC electrical isolation between low-voltage control circuits and high-voltage power stages, enhancing safety and noise immunity.
- Comprehensive Protection: Integrates overvoltage, overcurrent, overtemperature, and short-circuit protection mechanisms to safeguard IGBT modules and the entire drive system.
- Real-Time Diagnostics: Equipped with 9 red status LEDs to indicate power, operation, and fault conditions, enabling quick on-site troubleshooting.
- Stable & Durable: Constructed with high-quality, temperature-resistant components to withstand vibration, electrical noise, and harsh industrial conditions.
- Seamless System Integration: Fully compatible with GE Mark V Speedtronic™ turbine control systems, supporting plug-and-play installation and minimal configuration.
- Customizable Delay Settings: Features a factory-configured jumper (J1) for selecting specific gate turn-on delay, optimizing performance for different IGBT module types.
Applications
- Power Generation: Primary use in gas turbine, steam turbine, and generator excitation control systems for precise power modulation and grid synchronization.
- Thermal Power Plants: Deployed in boiler feed pump drives, fan drives, and auxiliary power control systems for energy-efficient operation.
- Oil & Gas Industry: Applied in compressor drives, pump stations, and power generation units for reliable high-power motor control.
- Industrial Drives: Used in heavy-duty variable frequency drives (VFDs) for large motors in mining, metallurgy, and process industries.
- Renewable Energy: Integrated into wind turbine and solar inverter systems for efficient DC-AC power conversion and grid integration.
- Legacy System Retrofits: Ideal for modernizing aging Mark V control systems, extending operational life, and improving performance.
Compliance & Certifications
- Complies with IEC 61000-6-2 and IEC 61000-6-4 for electromagnetic compatibility (EMC).
- Meets UL 508 and CSA C22.2 No. 142 safety standards for industrial control equipment.
- Manufactured under GE’s ISO 9001-certified quality management system for consistent performance and reliability.
