Product Short Description

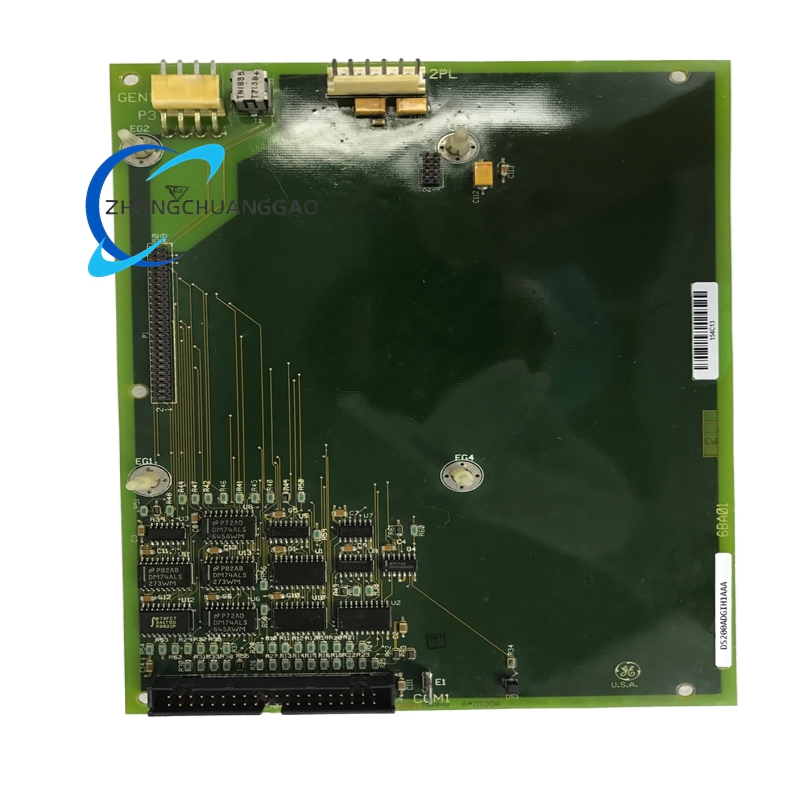

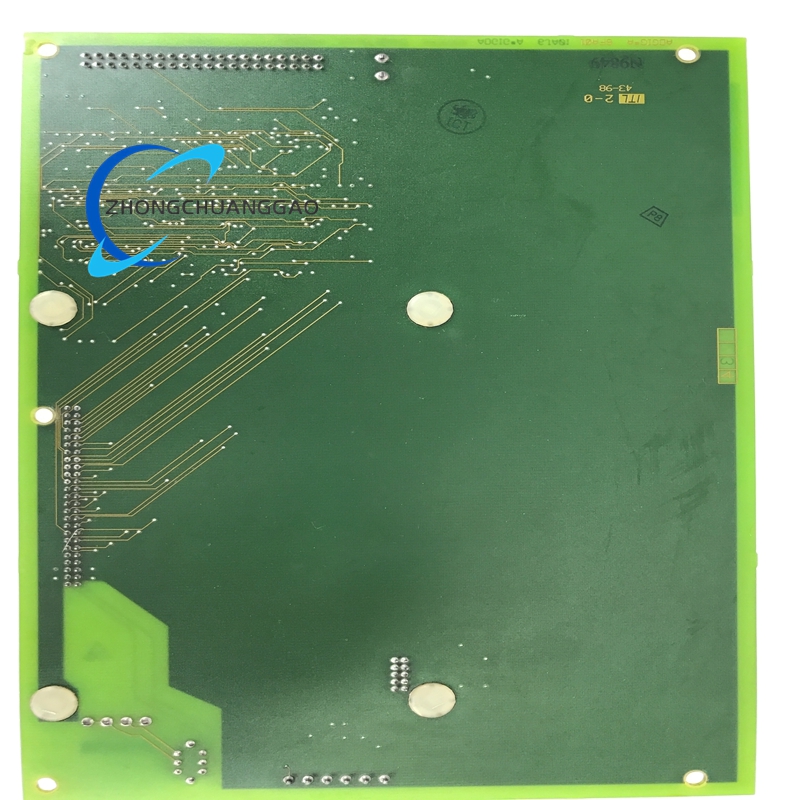

The GE DS200ADGIH1AAA is a high-performance auxiliary interface board engineered by General Electric (GE) as part of the Mark V Speedtronic™ turbine control system. It serves as a critical I/O expansion and signal conditioning module, facilitating seamless communication between the main control unit and field devices such as sensors, actuators, and auxiliary systems. The board is built with industrial-grade components to deliver exceptional stability, precision, and durability in extreme power generation and process control environments.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: DS200 / Mark V Speedtronic™
- Type: Auxiliary Interface Board
- Power Supply: 24VDC (nominal range: 0–30VDC)
- Input Current: 7mA @ 24VDC
- Isolation Voltage: 1500VDC
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 8 in (W) × 6 in (L) / 203.2 mm × 152.4 mm
- Weight: 0.5 kg (approximate)
- Connectors: 1 × 40-pin, 1 × 6-pin
- Configuration: 60 jumper settings, multiple test points
- I/O Channels: 8 analog input/output channels (current/voltage/power signals)
- Communication Protocols: RS485, Ethernet, Modbus
- Protection Rating: IP20 (dust and moisture resistant)
- Reliability: MTBF > 100,000 hours
Key Features
- High-Precision Signal Processing: Delivers accurate analog-to-digital and digital-to-analog conversion for critical process parameters, ensuring reliable data acquisition and control.
- Flexible Configuration: Equipped with 60 jumper settings and dedicated test points, enabling customizable I/O mapping, signal conditioning, and system troubleshooting.
- Robust Connectivity: Features 40-pin and 6-pin connectors for secure, high-density interfacing with Mark V system components and field devices.
- Industrial-Grade Reliability: Constructed with high-quality electronic components to withstand vibration, temperature fluctuations, and electrical noise in harsh industrial environments.
- Seamless System Integration: Fully compatible with GE Mark V Speedtronic™ turbine control systems, supporting plug-and-play installation and minimal configuration downtime.
- Enhanced Diagnostics: Integrated test points and fault detection circuitry enable real-time monitoring of board health and rapid identification of electrical issues.
- Compact & Space-Saving: Optimized 8”×6” form factor for easy mounting in standard drive cabinets, conserving valuable control panel space.
Applications
- Power Generation: Primary use in gas turbine, steam turbine, and generator control systems for monitoring speed, temperature, pressure, and vibration parameters.
- Thermal Power Plants: Integrates with boiler control systems to regulate fuel flow, steam pressure, and exhaust emissions.
- Process Control Industries: Deployed in oil and gas, petrochemical, and pharmaceutical plants for precision I/O expansion and signal conditioning.
- Industrial Automation: Used in manufacturing lines for coordinating motor drives, sensors, and safety interlocks in assembly and packaging operations.
- Retrofit & Upgrade Projects: Ideal for modernizing legacy Mark V control systems, extending operational life, and improving system performance.
Compliance & Certifications
- Designed to meet IEC 61508 functional safety standards for industrial control systems.
- Compliant with CE marking requirements for electromagnetic compatibility (EMC).
- Manufactured under GE’s strict quality control protocols for consistent performance and reliability.
