Product Short Description
Product Introduction

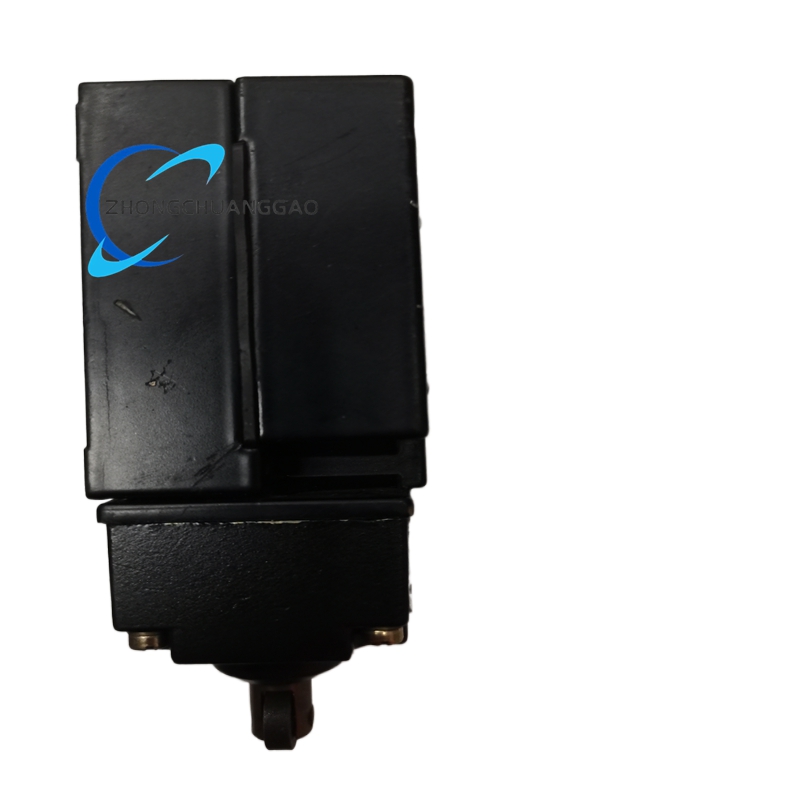

The GE CR215GH87 is a heavy‑duty, electromechanical control relay designed for industrial automation and power distribution systems. It provides reliable switching of AC loads up to 15 A at 250 VAC, serving as an interface between low‑voltage control circuits and high‑power field devices. Built with silver alloy contacts and a robust coil design, it delivers long service life and consistent performance in demanding industrial environments.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Model Number: CR215GH87
- Coil Voltage: 120 VAC, 50/60 Hz
- Coil Power: 215 VA
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Contact Rating: 15 A @ 250 VAC (resistive load)
- Contact Material: Silver alloy (AgCdO)
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 5%–95%, non‑condensing
- Protection Class: IP20 (finger‑safe terminals)
- Dimensions: 45 mm × 27 mm × 22.5 mm (1.77 in × 1.06 in × 0.89 in)
- Weight: 0.1 kg (0.22 lbs)
- Mounting: DIN rail or panel mount
- Certifications: UL/cUL, CSA, CE
Key Features
-
High‑Capacity Switching & Durable Contacts
- Handles 15 A resistive loads at 250 VAC for motor, lighting, and heater circuits
- Silver alloy contacts resist wear, corrosion, and welding under high inrush currents
- Withstands up to 100,000 mechanical operations for extended service life
-
Robust Coil Design & Wide Operating Voltage
- 120 VAC coil with 215 VA power consumption ensures reliable pull‑in and drop‑out
- Tolerates ±10% voltage fluctuation for stable operation in unregulated power systems
- Low coil hum and vibration for quiet performance in control panels
-
Compact & Versatile Installation
- Small footprint (45 mm × 27 mm) saves space in crowded control enclosures
- Compatible with standard DIN rails and direct panel mounting for flexible deployment
- Tool‑free screw terminals accept 16–22 AWG wires for fast, secure wiring
-
Clear Status Indication & Safety
- Integrated LED indicator lights when the coil is energized for quick visual status
- IP20‑rated housing prevents accidental contact with live terminals
- Flame‑retardant thermoplastic housing meets UL 94 V‑0 for fire safety
-
Industrial‑Grade Reliability
- Conformal coating available for protection against dust, moisture, and chemicals
- Withstands vibration (10–55 Hz, 0.15 mm amplitude) in high‑vibration environments
- Designed for use in control panels, motor control centers (MCC), and power distribution boards
Application Scenarios
- Industrial Automation: PLC output interfacing for motor starters, solenoid valves, and contactors
- Power Distribution: Lighting control, heater circuits, and auxiliary load switching in commercial buildings
- Oil & Gas: Wellsite control panels, pipeline pump stations, and refinery process interlocks
- Water & Wastewater: Pump control, valve actuation, and chemical feed system switching
- Manufacturing: Conveyor systems, packaging machinery, and assembly line equipment control
- HVAC: Fan, blower, and damper control in commercial and industrial heating/cooling systems
Additional Information
- Condition: Brand new, original factory sealed packaging
- Warranty: 12‑month manufacturer warranty
- Country of Origin: United States
- Lead Time: 4–6 weeks (in‑stock units available)
- Compatibility: Works with GE PLCs, motor control centers, and standard industrial control circuits
