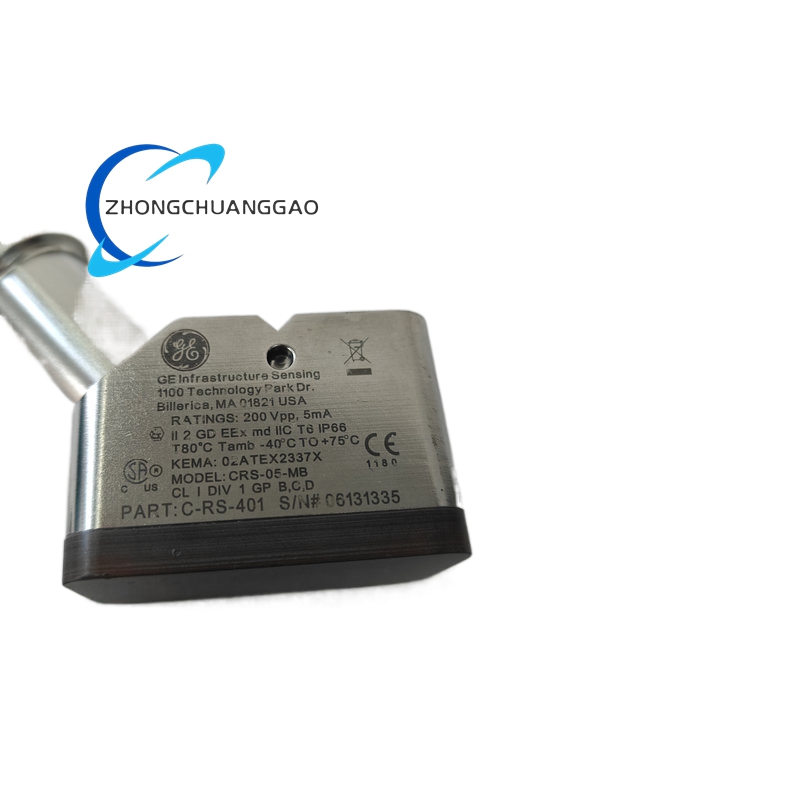

GE C-RS-401-00-0

Description

Technical Specifications (Flow Transducer Configuration):

• Manufacturer: GE Panametrics

• Type: Clamp-on ultrasonic flow transducers (pair)

• Frequency: 0.5 MHz

• Operating Temperature: -40°C to +150°C (-40°F to 302°F)

• Hazardous Area Certification: X-Proof: Class 1, Div 1, Groups B, C, D; Flameproof: II 2 G EEx d IIC T6

• NEMA Rating: NEMA 4

Technical Specifications (Relay Driver Module Configuration):

• Interface: 1× RS-485 port (half-duplex, overload protected)

• Protocol: Modbus RTU (master/slave mode, configurable)

• Voltage Rating: 1500 V RMS

• Mounting: DIN rail mounting system

• Dimensions: 160 mm × 120 mm × 50 mm

Functional Features (Flow Transducer):

• Non-contact clamp-on installation eliminates process intrusion

• High-precision flow measurement for multiple liquids and gases

• Broad compatibility with GE Panametrics ultrasonic flow meters

• Hazardous area certified for use in explosive atmospheres

Functional Features (Relay Driver):

• High-performance relay driver output for turbine control and protection systems

• Modbus RTU communication for integration with control networks

• DIN rail mounting for simplified panel integration

Material Composition: Robust industrial-grade materials suitable for hazardous area deployment (flow transducer configuration).

Structural Features: Clamp-on design for non-invasive installation on pipes (flow transducer). DIN rail mountable enclosure (relay driver module).

Working Principle (Flow Transducer): The clamp-on transducers emit ultrasonic signals through the pipe wall into the flowing fluid. The transit-time difference between upstream and downstream measurements is used to calculate flow velocity with high accuracy, without contacting the process fluid.

Working Principle (Relay Driver): The module receives control signals via Modbus RTU over RS-485 and drives high-voltage relay outputs (1500 V RMS rating) for turbine protection and control functions within Mark VIe systems.

Advantages and Highlights:

• Non-invasive clamp-on installation eliminates process downtime (flow transducer)

• Hazardous area certified for Class 1, Div 1, Groups B, C, D (flow transducer)

• Wide temperature range: -40°C to +150°C (flow transducer)

• High-voltage 1500 V RMS relay driver capability (relay driver module)

• Modbus RTU communication for system integration (relay driver module)

Applicable Industries:

• Process Industry Measurement (flow transducer)

• Oil and Gas (flow transducer)

• Power Generation (turbine control systems – relay driver module)

• Chemical Processing (flow measurement)

• Water and Wastewater (flow measurement)

Model Series: GE Panametrics Flow Measurement Series; GE Mark VIe Control System Series

Installation Requirements (Flow Transducer):

• Clamp-on mounting on appropriate pipe diameter

• Requires compatible GE Panametrics ultrasonic flow meter for operation

• Hazardous area installation requires appropriate junction box

Installation Requirements (Relay Driver Module):

• DIN rail mounting in control panel

• Requires compatible Mark VIe or Mark VIeS system backplane

• RS-485 network connection for Modbus RTU communication

Usage Precautions:

• Verify correct application configuration (flow transducer vs. relay driver module)

• For flow transducer: ensure proper pipe preparation and coupling for accurate measurement

• For relay driver module: observe voltage ratings (1500 V RMS maximum)

• Follow hazardous area installation requirements where applicable
