Product Short Description

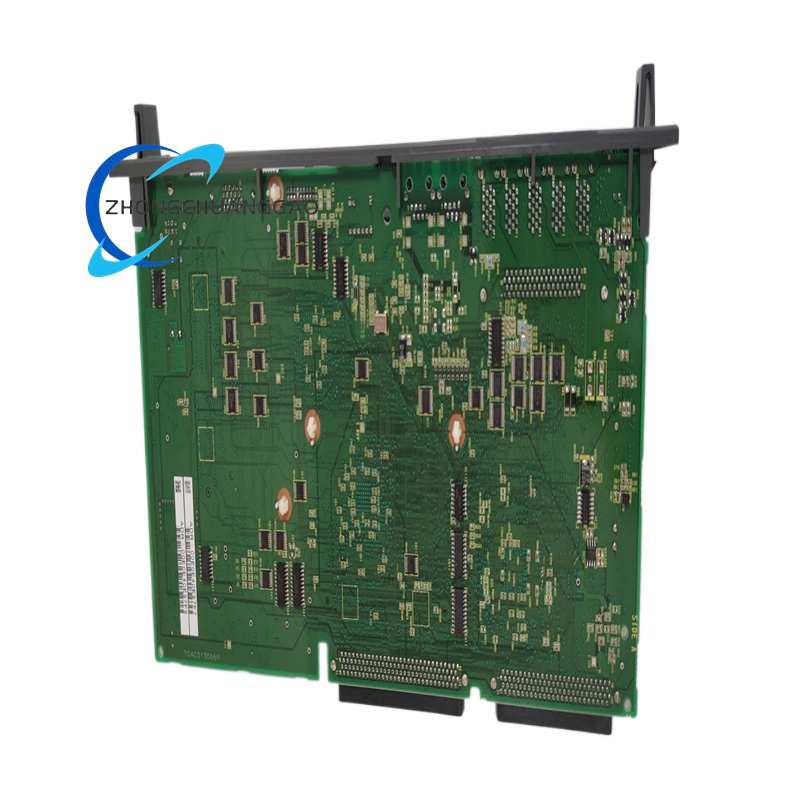

Product Name: GE Fanuc A16B-3200-0600 System Control Main Board
Product Series: GE Fanuc A16B Series High-performance CNC Main Control Board
Product Brief: High-grade main control board for medium and large GE Fanuc CNC systems, serving as the core control unit of the equipment, responsible for system scheduling, motion control and data management.
Description
- Power Supply: DC 5 V / DC 24 V dual power supply
- Main Control Chip: Industrial dedicated CNC main control chip
- Onboard Memory: System dedicated storage chip
- Bus Specification: High-speed internal system bus
- Working Clock: Industrial standard operating clock frequency
Functional Features: Full CNC system operation control; multi-axis motion linkage control; system data storage and backup; human-computer interaction signal processing; system self-diagnosis and fault record storage.
Performance Parameters: Operating temperature: 0 °C ~ +55 °C; Storage temperature: -20 °C ~ +75 °C; Operating humidity: 10% ~ 90% RH (non-condensing); EMC Level: Industrial heavy-duty anti-interference level.
Material Composition: Substrate: Thickened multilayer high-reliability PCB; Core devices: Industrial-grade main control chip, flash memory, clock chip; Peripheral devices: Voltage stabilizing module, signal filter; Connector: High-density gold-plated connector.
Structural Characteristics: Large-size standard CNC main board; layered component layout; onboard integrated power management circuit and filter circuit; edge connector for system bus connection; fixed by special cabinet lock.
Working Principle: After power-on self-test, initialize each functional module of the system; execute machining programs and control commands; coordinate the work of servo system, I/O system and man-machine interface; record operating data and fault information in real time to complete the overall control of numerical control equipment.
Advantages & Highlights: Strong multi-axis linkage control capability; large data storage space; high system operation speed; strong stability for long-term continuous work; complete self-diagnosis function to accelerate fault location.
Applicable Industries: Large-scale machining center, gantry machining equipment, multi-axis linkage CNC machine tool, automatic flexible production unit.
Installation Requirements: Install in the main card slot of CNC electric cabinet; ensure the connector is fully connected and locked; the cabinet is kept dust-proof, moisture-proof and anti-static; wiring is classified and bundled neatly.
Usage Notes: Prohibit hot plugging and unplugging; wear anti-static wristband during maintenance; avoid liquid and metal debris falling onto the board; regularly back up system data to prevent data loss.
