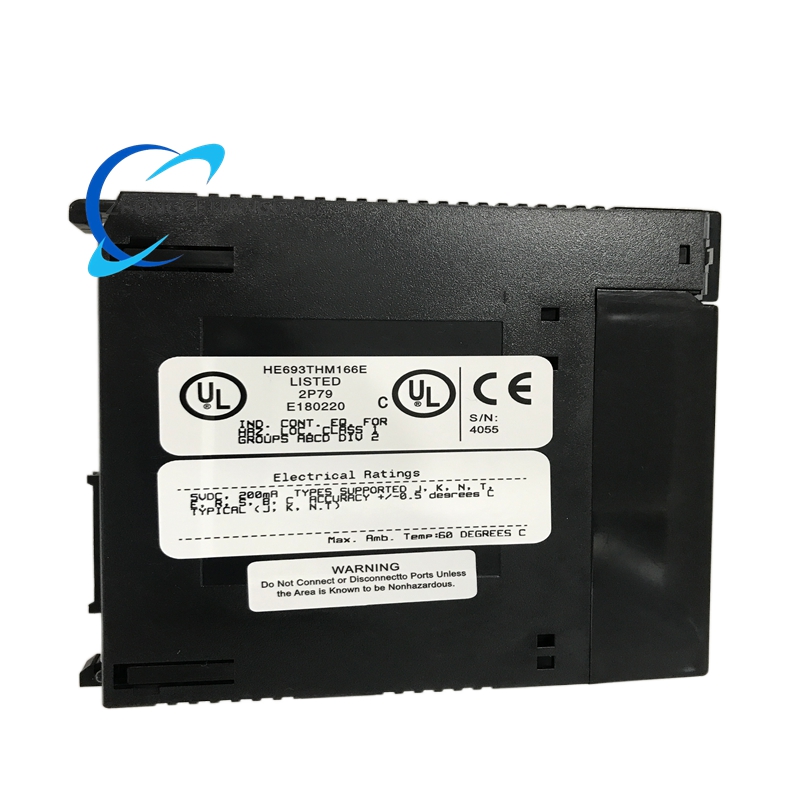

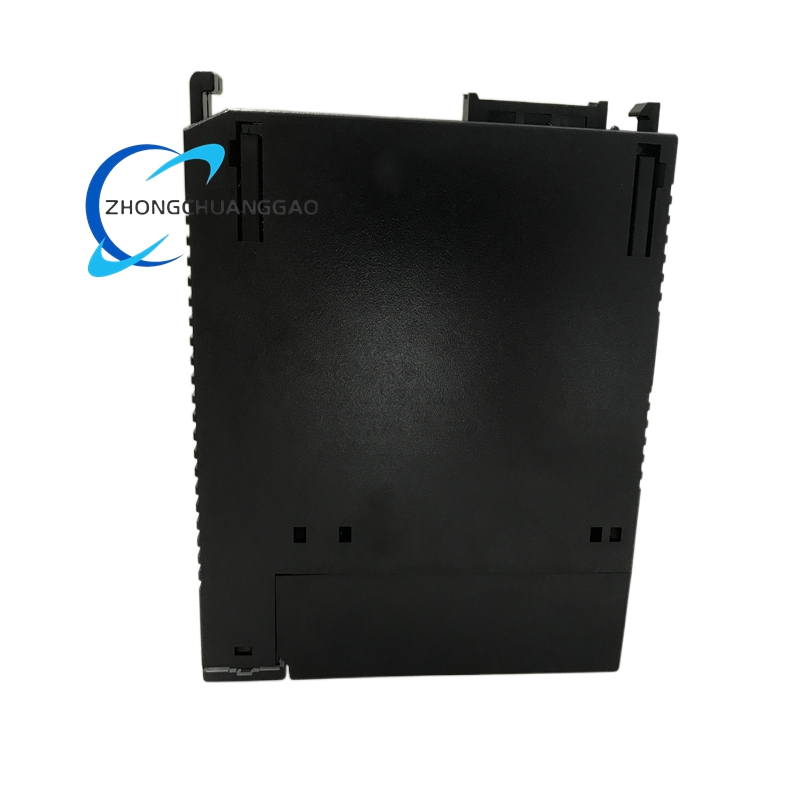

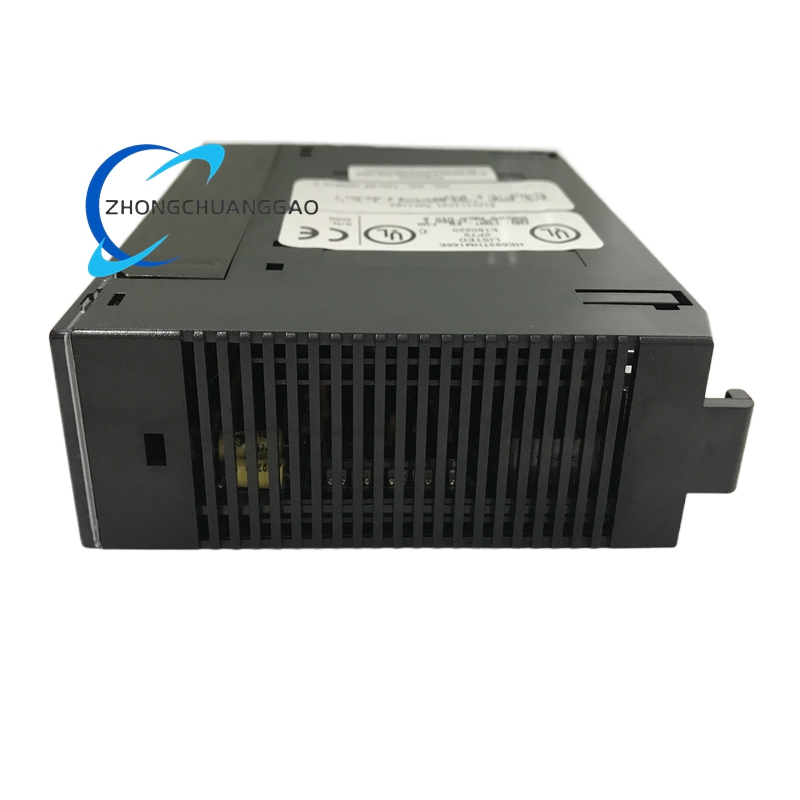

GE HE693THM166 16-Channel High-Density Thermocouple Input Module

Description

Technical Specifications

• Manufacturer: Horner Automation (GE Fanuc Series)
• Part Number: HE693THM166
• Compatible Platform: GE Series 90-30 PLC Systems
• Module Type: 16-Channel Thermocouple Input
• Supported Thermocouple Types: J, K, N, T, E, R, S, B, C, X
• Resolution: 0.5°C or 0.5°F (configurable)
• Accuracy: ±0.5°C typical (J, K, N, T types)
• Input Impedance: 20 MΩ per channel
• Maximum Safe Overload: ±35 VDC
• Common Mode Range: ±12 VDC
• Common Mode Rejection: >100 dB
• A/D Conversion Type: Integrating converter
• Conversion Rate: 40 channels per second
• I/O Points Required: 16 %AI (analog input), 16 %I (discrete input for alarms)
• Terminal Block: 32-position removable high-density terminal block
• Recommended Wire Size: 24 AWG
• Power Consumption: 100 mA @ 5 VDC (backplane)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5%–95% RH, non-condensing
• Dimensions: 120 mm (H) × 80 mm (W) × 40 mm (D)
• Weight: 0.38 kg (0.84 lbs)
• Certifications: CE, UL, CSA

Key Features

1. 16-Channel High-Density Temperature Monitoring

• Provides 16 independent thermocouple input channels, supporting 10 common thermocouple types (J, K, N, T, E, R, S, B, C, X) for versatile temperature measurement across diverse industrial processes.
• High channel density minimizes rack space usage and reduces wiring costs in multi-point monitoring applications.

2. Precision Measurement with 0.5° Resolution

• Delivers 0.5°C or 0.5°F configurable resolution, ensuring accurate and consistent temperature data for critical control loops and quality assurance.
• Factory-calibrated accuracy of ±0.5°C (typical for J/K/N/T types) eliminates the need for on-site calibration.

3. Advanced Fault Detection & Diagnostics

• Integrated open-circuit detection triggers a discrete alarm bit (%I) and drives the analog input register (%AI) to maximum value when a sensor wire breaks, enabling immediate fault identification.
• Overvoltage protection safeguards the module from ±35 VDC input spikes, ensuring reliability in electrically noisy environments.

4. Superior Noise Immunity & Signal Integrity

• 20 MΩ high input impedance minimizes loading on thermocouple sensors, preserving weak millivolt-level signal integrity.

• 100 dB common mode rejection ratio (CMRR) eliminates ground loop interference and electrical noise, ensuring stable readings in harsh industrial environments.

5. Compact & User-Friendly Design

• Single-slot form factor with a 32-position removable terminal block simplifies wiring and maintenance.
• Direct compatibility with GE Series 90-30 PLCs requires no external adapters or signal conditioners, reducing system complexity.
• LED status indicators provide visual confirmation of module power and channel activity for quick troubleshooting.

Applications

• Process Manufacturing: Chemical, pharmaceutical, and food & beverage plants for reactor, furnace, and sterilization temperature monitoring.
• Power Generation: Gas/steam turbines, power boilers, and heat recovery steam generators (HRSGs) for combustion and exhaust temperature measurement.
• Oil & Gas: Refineries, petrochemical facilities, and pipeline operations for process heater, crude oil, and natural gas temperature monitoring.
• Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and cement plants for furnace, kiln, and molten metal temperature control.
• HVAC & Building Automation: Large commercial facilities and data centers for environmental and equipment temperature monitoring.
