Product Short Description

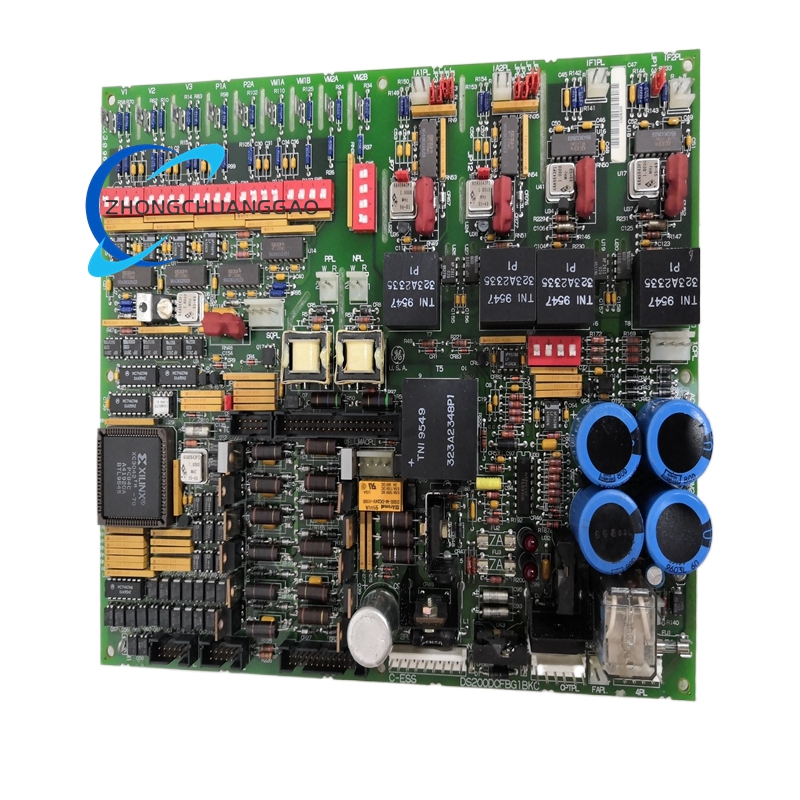

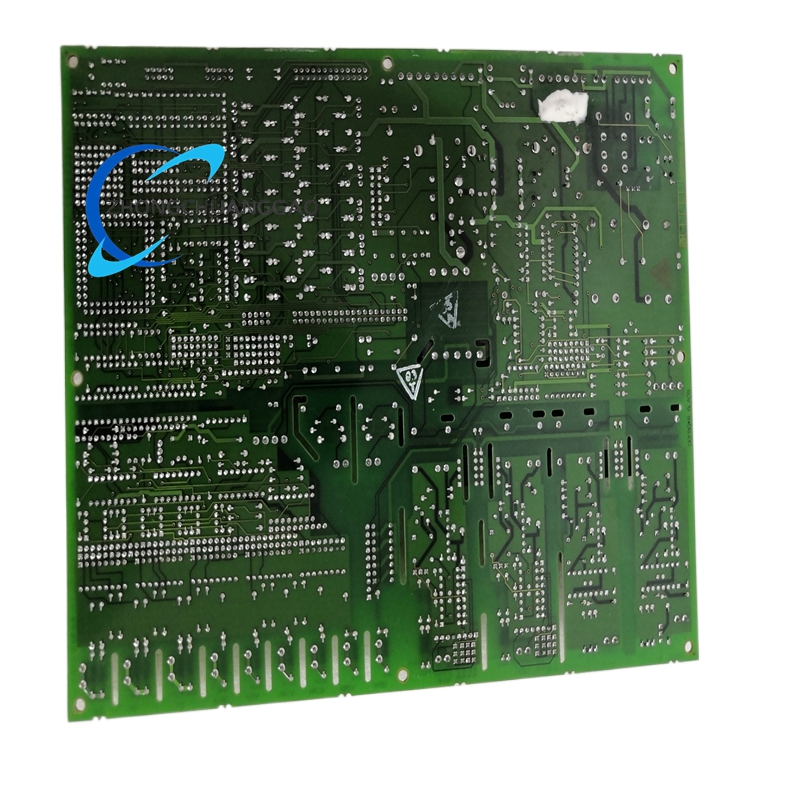

The DS200DCFBG1BKC is a high-reliability, industrial-grade power supply and feedback interface board designed by General Electric (GE) for the Mark V Speedtronic turbine and drive control systems. It serves as a critical power distribution and signal conditioning module, supplying regulated control power to the drive’s internal logic and 115 VAC power for enclosure cooling fans. Additionally, it provides isolated analog feedback signals for motor voltage, current, and field parameters, enabling precise monitoring and control of DC and AC drives. This board is a revised, fully compatible replacement for older DS200DCFBG1B series boards, ensuring backward compatibility and enhanced performance in legacy GE drive systems.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: Mark V Speedtronic DS200
- Part Number: DS200DCFBG1BKC
- Functional Type: DC Feedback Power Supply Board (DCFB)
- Input Voltage: 38–115 VAC, 0–500 Hz (from control power transformer, CPT); 24 VDC auxiliary input
- Output Voltages:
- Control Logic: +5 VDC (4 A), ±15 VDC, ±24 VDC (regulated)
- Enclosure Fan: 115 VAC (isolated)
- Feedback Signals:
- Motor Voltage: 0–5 VDC analog (2.5 VDC bias)
- Armature Current: Isolated analog feedback
- Field Current: Isolated analog feedback
- AC Line Voltage/Current: Frequency output (0–500 kHz, nominal 250 kHz) via VCO
- Configuration: 13 jumpers, 7 DIP switches (factory-configured for standard applications)
- Protection:
- Fuses: FU1 (1/2 A, 2AG) for 115 VAC output; FU2/FU3 (7 A, 2AG) for DC outputs
- LED Indicators: CR51/CR55 (fuse blow); LT1 (neon, 115 VAC fault)
- Power Fail Signal (/PSEN): Resets drive microprocessor on +5 VDC fault
- Dimensions: 296 mm (H) × 107 mm (W) × 205 mm (D)
- Weight: 4.5 kg (9.9 lbs)
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Storage Temperature: -40°C to +80°C (-40°F to +176°F)
- Humidity: Up to 95% non-condensing
- Certifications: CE, UL, CSA, IEC 60255
- Compatibility: DC2000, AC2000, FC2000, CB2000, ME2000, EX2000 series drives
Key Features
1. Regulated Multi-Voltage Power Distribution
- Generates stable +5 VDC, ±15 VDC, and ±24 VDC outputs to power the drive’s control logic, microprocessors, and auxiliary circuits.
- Supplies isolated 115 VAC power for enclosure cooling fans, ensuring thermal management of the drive cabinet.
2. Precision Feedback Signal Conditioning
- Converts motor voltage, armature current, and field current into isolated analog signals for real-time monitoring by the main control board (SDCC/LDCC).
- Integrates voltage-controlled oscillators (VCOs) to convert AC line parameters into frequency signals (0–500 kHz) for high-accuracy speed and synchronization control.
3. Comprehensive Fault Detection & Protection
- Onboard fuses and LED indicators provide immediate visual feedback for power supply faults, including short circuits and overloads.
- The /PSEN signal automatically resets the drive’s microprocessor if the +5 VDC supply fails, preventing data corruption and system lockup.
4. Flexible Configuration & Backward Compatibility
- 13 jumpers and 7 DIP switches allow customization for specific drive models and application requirements (factory pre-configured for standard use).
- Fully compatible with all Mark V DS200 series drives, serving as a drop-in replacement for older DS200DCFBG1B boards.
5. Rugged Industrial Design
- Conformal-coated PCB for protection against dust, moisture, and chemical contaminants.
- Compact, panel-mountable form factor for easy integration into standard GE drive enclosures.
Applications
- Power Generation: Steam, gas, and wind turbine control systems; auxiliary drive motors (boiler fans, feed pumps).
- Oil & Gas: Pipeline compressors, pumps, and variable-speed drives for upstream/downstream operations.
- Metals & Mining: DC/AC motor drives for crushers, mills, conveyors, and hoists.
- Water & Wastewater: Large pump motors and blowers in municipal and industrial treatment plants.
- Heavy Industry: Paper mills, cement plants, and chemical processing facilities using GE Mark V drive systems.
Summary
The GE DS200DCFBG1BKC is an essential, robust power supply and feedback board for GE’s Mark V Speedtronic drive systems. It combines regulated power distribution, precision signal conditioning, and comprehensive fault protection to ensure reliable operation of critical industrial drives. As a fully compatible replacement for legacy boards, it extends the service life of existing GE drive installations in power generation, oil & gas, and heavy manufacturing sectors.
