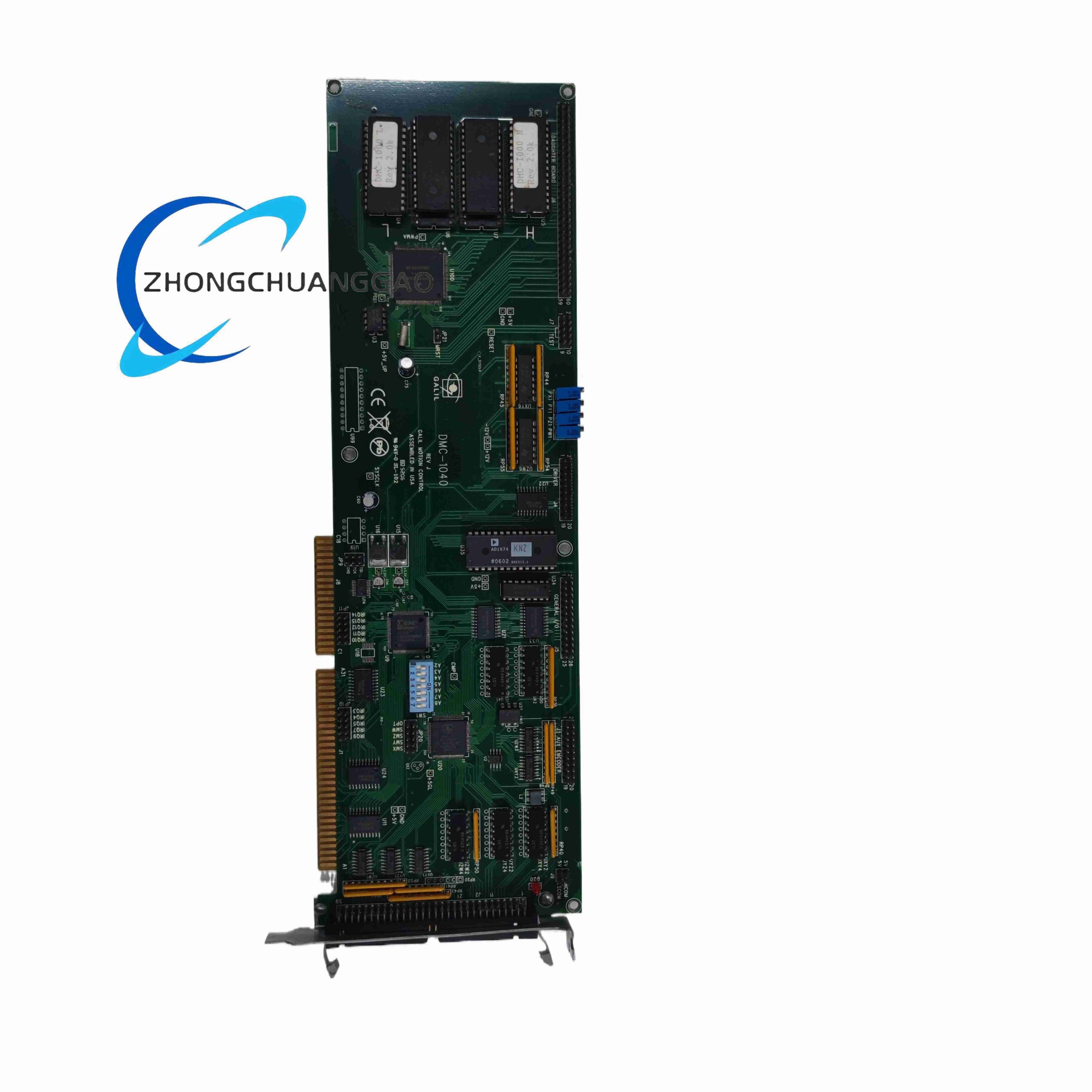

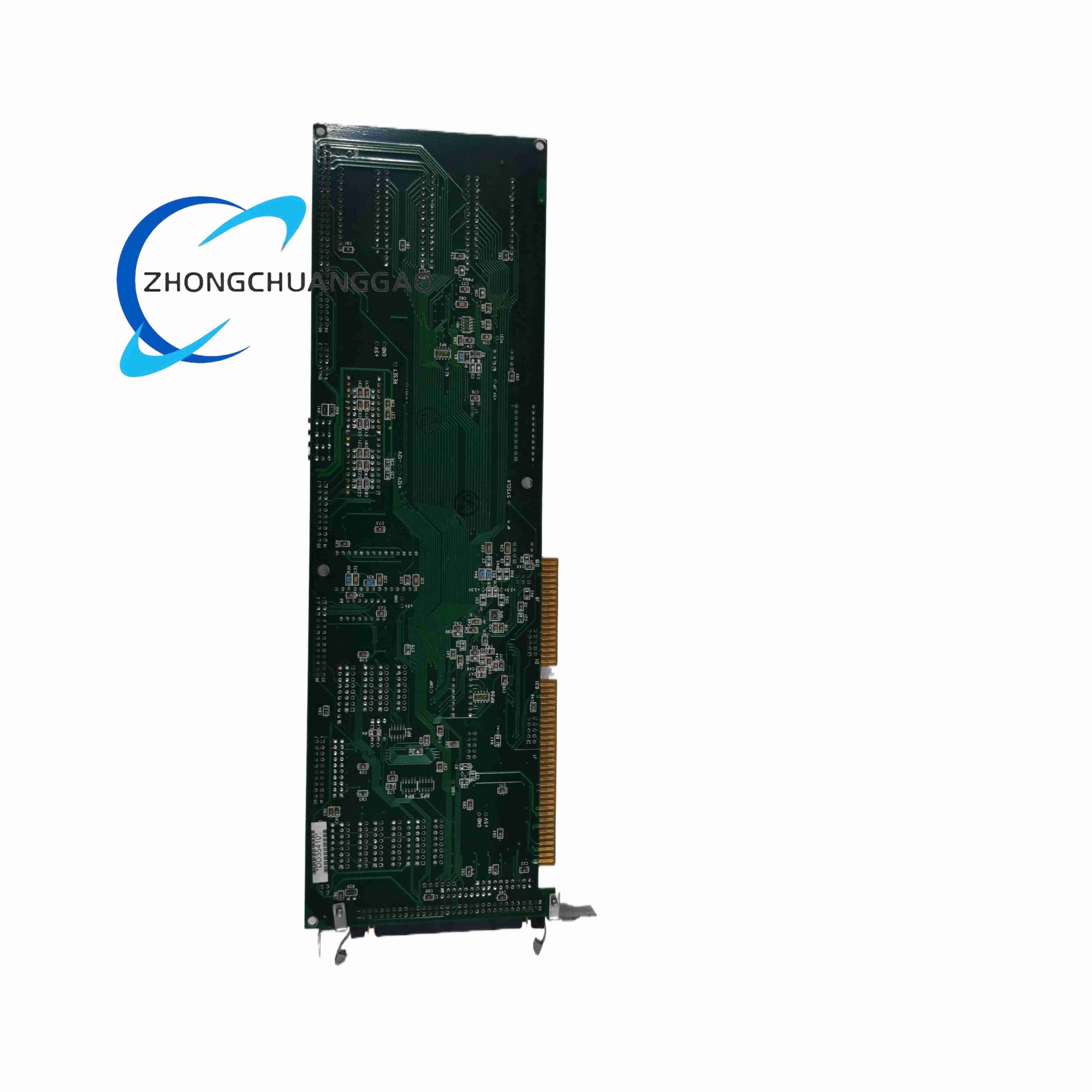

GALIL DMC-1040

Technical Specifications

• Model Series: Galil DMC-1000 PCI Bus Motion Control Card Series
• Controllable Axis Count: 4 independent servo/stepper axes
• Host Bus Interface: Standard 32-bit PCI 2.2 bus
• Command Output Modes: Pulse+direction, CW/CCW pulse, ±10 V analog DAC servo output
• Encoder Feedback Input: 4 differential A/B/Z phase encoder channels, max 22 MHz input frequency
• DAC Analog Output Resolution: 16-bit per axis servo control signal
• Digital Input Channels: 8 optically isolated general-purpose DI (limit, home, E-stop)
• Digital Output Channels: 8 optically isolated general-purpose DO (amplifier enable, alarm trigger)
• Servo Control Loop Update Rate: 125 µs for 4-axis simultaneous closed-loop calculation
• Position Counter Resolution: 32-bit signed position register per axis
• Onboard Program Memory: 512 KB non-volatile flash storage for motion application programs
• Operating Temperature Range: 0 °C ~ +70 °C
• Storage Temperature Range: -40 °C ~ +85 °C
• Relative Humidity Tolerance: 20%–95% non-condensing
• PCB Form Factor: Standard half-length PCI card
• Net Weight: 160 g

Functional Features

1. Independent closed-loop PID position/velocity/torque control for each of 4 axes with velocity and acceleration feedforward compensation
2. Full motion algorithm support: PTP point-to-point positioning, linear/circular interpolation, electronic gear, electronic cam, jog continuous motion, contour profiling
3. Optically isolated digital I/O channels eliminate ground loop interference between PC host and field servo drives
4. Hardware high-speed position latch and position compare output for registration cutting and printing applications
5. Built-in hardware E-stop emergency stop logic with immediate axis output cutoff upon trigger signal
6. Non-volatile flash memory stores motion programs, PID parameters and axis configuration without host power retention
7. Complete GalilSuite software library support for Windows and Linux industrial PC development

Performance Parameters

• Maximum Pulse Command Output Frequency: 6 MHz for stepper motor drives
• Encoder Max Input Frequency: 22 MHz differential line driver encoder signals
• PID Control Loop Calculation Latency: 125 µs full 4-axis synchronous update
• I/O Response Delay: ≤ 1 µs hardware trigger response for limit and home signals
• Surge Withstand Capacity: 2 kV ESD contact discharge on all field I/O terminals
• Vibration Resistance: 10 Hz – 150 Hz, 1 g continuous cabinet vibration

Material Composition

• Main Circuit Substrate: FR4 high-Tg multi-layer low-noise industrial PCI PCB
• Bus Connector: Gold-plated 32-bit PCI edge finger connector
• Encoder Interface Chips: High-speed differential line receiver ICs with galvanic isolation
• Analog DAC Chips: 16-bit low-drift industrial digital-to-analog converters
• Optocoupler Isolation Components: High-speed wide-temperature opto-isolators for all digital I/O
• Card Edge Bracket: Cold-rolled steel anti-corrosion PCI mounting bracket with signal wiring cutout

Structural Characteristics

1. Standard half-length PCI plug-in card form factor compatible with all industrial PC PCI expansion slots
2. Separated PCB layout zones: PCI host bus circuit, analog servo output circuit, digital I/O encoder circuit to reduce crosstalk
3. External D-Sub connector bracket mounted on PCI rear panel for field wiring access
4. Surface-mounted passive heat dissipation copper pads for core motion control processor
5. Full isolation barrier between PC host PCI bus circuit and field analog/digital signal circuits
6. Standard mounting screw hole on steel bracket for rigid fixation inside industrial PC chassis

Working Principle

Advantage Highlights

1. 4-axis synchronous high-speed closed-loop control integrated onto single half-length PCI card to save industrial PC expansion slot space
2. Dual servo output modes (pulse and analog DAC) compatible with all mainstream servo and stepper drive brands
3. Optically isolated field I/O and encoder channels eliminate ground loop damage to PC host motherboard
4. Comprehensive built-in motion algorithms reduce upper PC host motion calculation load
5. Wide 0 °C ~ +70 °C operating temperature range adapts to unheated industrial control cabinets
6. Full cross-platform GalilSuite software support for rapid automation application development

Applicable Industries

Installation Requirements

1. Insert DMC-1040 into vacant 32-bit PCI 2.2 expansion slot of industrial PC chassis; fasten steel bracket mounting screw to chassis frame
2. Maintain minimum 1 slot empty spacing between DMC-1040 and high-power PCI graphics/DAQ cards for heat dissipation
3. Use double-shielded twisted pair cable for encoder and analog servo wiring; separate signal cables from PC power supply wiring
4. Implement single-point PE grounding of cable shielding at industrial PC cabinet ground bar
5. Install PCI chassis cooling fan to maintain internal chassis temperature below 60 °C during continuous operation
6. Verify PC PCI bus resource allocation before powering on host to avoid bus resource conflict

Operation & Maintenance Precautions

1. Mandatory ESD wrist strap and anti-static mat handling during card installation and removal to prevent PCB static damage
2. Do not bend D-Sub external wiring cables at sharp angles to avoid internal wire fracture
3. Conduct annual inspection of D-Sub connector pins for dust accumulation and oxidation
4. Avoid installation adjacent to high-power switching power supplies inside PC chassis to reduce electromagnetic interference
5. Store spare DMC-1040 cards in sealed anti-static packaging with desiccant packs
6. Fully shut down industrial PC host power supply before disconnecting external D-Sub field wiring cables
