Product Short Description

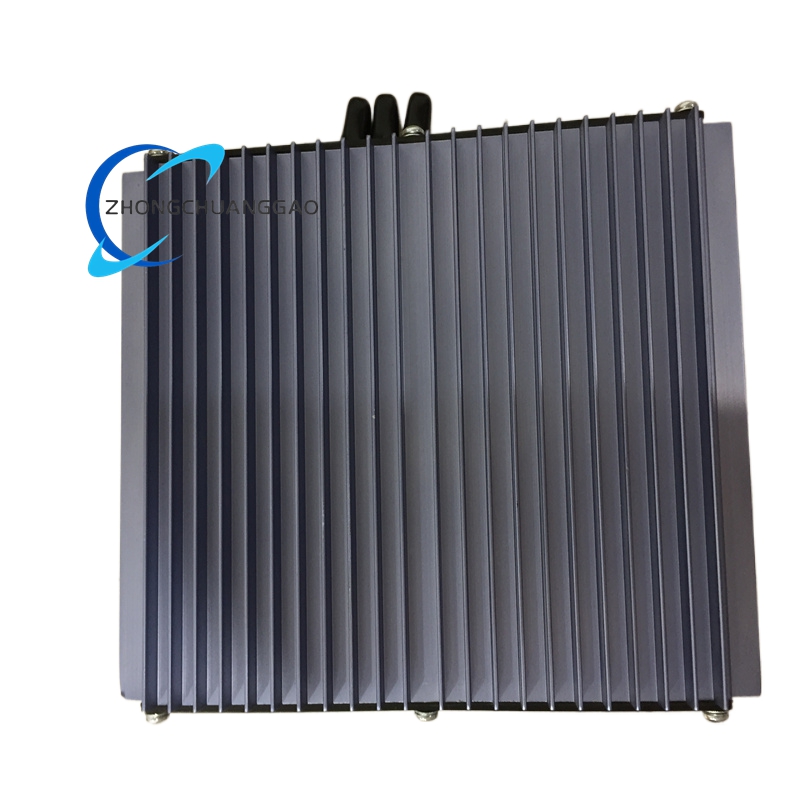

- Product Name: Foxboro P0922YU FPS400-24 Power Supply Module
- Product Introduction: A high-efficiency 400W power supply for the Foxboro I/A Series 200 Subsystem, providing stable 24VDC power to I/O modules and controllers
- Technical Specifications:
- Input Voltage: 85-265VAC (47-63Hz) or 108-145VDC
Description
-
- Output Voltage: 24VDC (±1% regulation)
- Output Current: Max 16.7A, Power: 400W
- Efficiency: ≥90% (full load)
- Protection: overvoltage, overcurrent, short-circuit, overtemperature
- Operating Temperature: -40°C to +70°C
- Dimensions: 220mm × 105mm × 60mm, Weight: 1.2kg
- Key Features:
- Wide Input Range: accepts universal AC/DC inputs for global use.
- High Efficiency: ≥90% efficiency reduces energy consumption.
- Full Protection Suite: safeguards against overloads and faults.
- Redundancy Ready: supports N+1 redundant configurations for reliability.
- LED Status Indicators: displays input/output and fault status.
- Application Scenarios: Industrial control panels, DCS cabinets, and process automation systems in oil & gas, chemical, power, and water treatment plants.
