Product Short Description

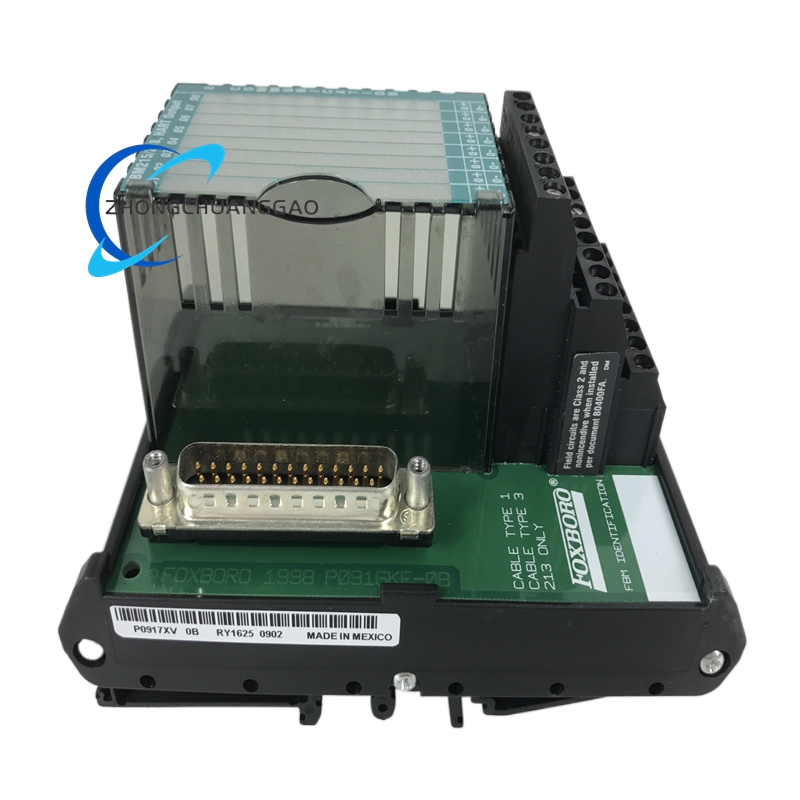

- Product Name: Foxboro P0917XV Universal I/O Module
- Product Introduction: A compact universal I/O module (FBM215/FBM218) for the I/A Series DCS, combining digital and analog I/O for flexible control.
- Technical Specifications:
- Channels: 8 digital input + 4 analog input + 16 digital output
Description
-
- Digital I/O: 24VDC, 2A output (short-circuit protected)
- Analog Input: 4-20mA or 0-10V (software-selectable)
- Memory: 16MB SDRAM, 32MB Flash
- Power Supply: 24VDC, ≤8.5W
- Operating Temperature: 0°C to +60°C
- Dimensions: 140mm × 165mm × 45mm, Weight: 0.6kg
- Key Features:
- Mixed I/O: combines digital and analog I/O for versatile control.
- Software Configurable: analog input type selectable via software.
- Short-Circuit Protection: digital outputs protected against overloads.
- DIN-Rail Mount: compact design for easy installation in control cabinets.
- Application Scenarios: Small-to-medium process control in food & beverage, packaging, and building automation for mixed signal monitoring and control.
