Product Short Description

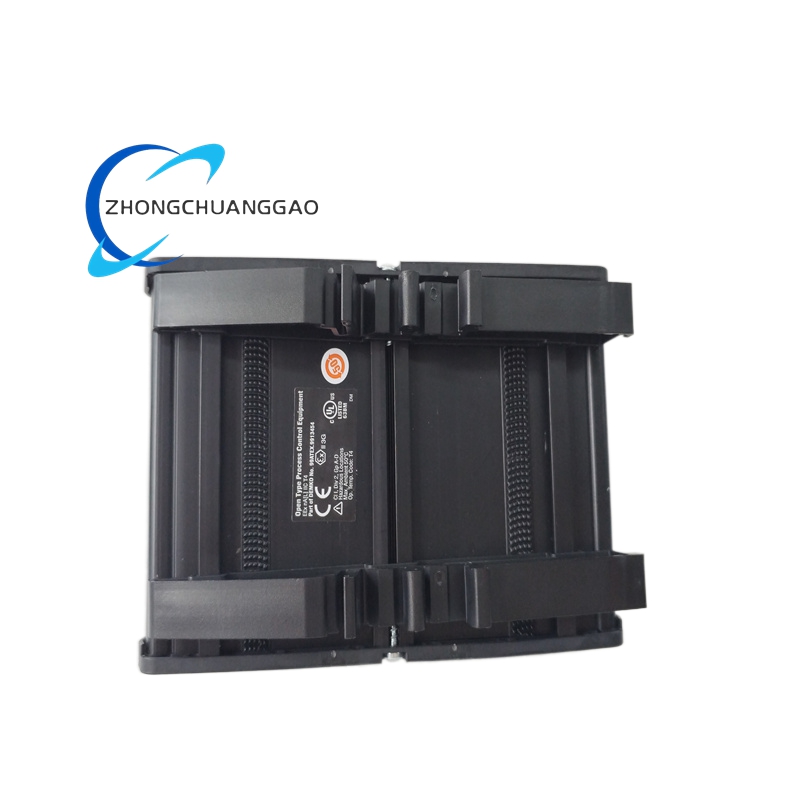

- Product Name: Foxboro P0916KF-0B Analog Input Module
- Product Introduction: A high-precision 8-channel analog input module for the Foxboro I/A Series DCS, designed for accurate signal acquisition in industrial process control.
- Technical Specifications:
- Channels: 8 isolated analog input channels
Description
-
- Signal Types: 4-20mA DC current, 0-10V DC voltage
- Accuracy: ±0.1% FS (Full Scale)
- Isolation Voltage: 1,500Vrms (channel-to-channel)
- Power Supply: 12-48VDC, ≤30mA
- Operating Temperature: -20°C to +70°C
- Dimensions: 168mm × 168mm × 125mm, Weight: 0.5kg
- Key Features:
- High Precision: Delivers ±0.1% FS accuracy for reliable measurements.
- Galvanic Isolation: 1,500Vrms isolation prevents crosstalk and enhances system safety.
- Rugged Design: withstands -20°C to +70°C for deployment in harsh environments.
- Seamless Integration: Fully compatible with Foxboro I/A Series DCS for easy integration.
- Application Scenarios: Oil & gas, chemical, power generation, pharmaceutical, and water treatment plants for monitoring temperature, pressure, flow, and level.
