Product Short Description

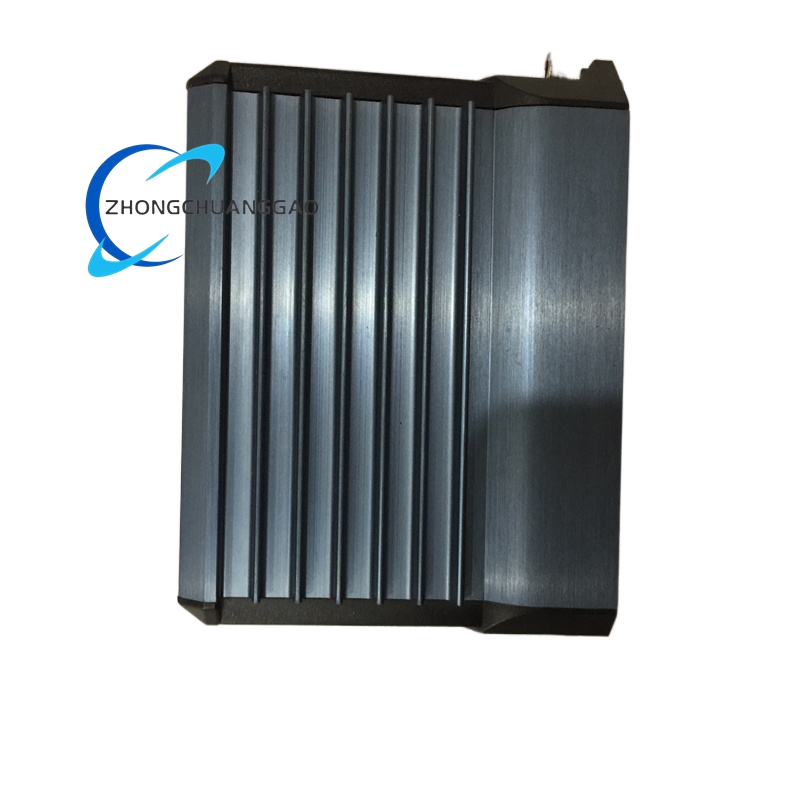

- Product Name: Foxboro FEM100 Fieldbus Expansion Module
- Product Introduction: A high-density expansion module in the Foxboro I/A Series, extending the I/O capacity of the FCP270 by providing additional fieldbus channels.
- Technical Specifications:
- Fieldbus Channels: 4 Expanded Fieldbus ports.
Description
-
- FBM Capacity: Up to 32 FBMs per channel (128 total).
- Communication: 2 Mbps HDLC fieldbus.
- Power Supply: 21–26 V DC, max power consumption 2.2 W.
- Operating Temperature: -20°C to +70°C.
- Mounting: Two-slot or four-slot expansion baseplate, DIN rail-mountable.
- Features:
- Hot-swappable for easy I/O expansion without system downtime.
- Redundant operation support for mission-critical applications.
- Compact design for space-constrained control cabinets.
- Application Scenarios: Chemical, power generation, pharmaceutical, and oil & gas industries for scaling up I/O capacity in large DCS installations.
