Product Short Description

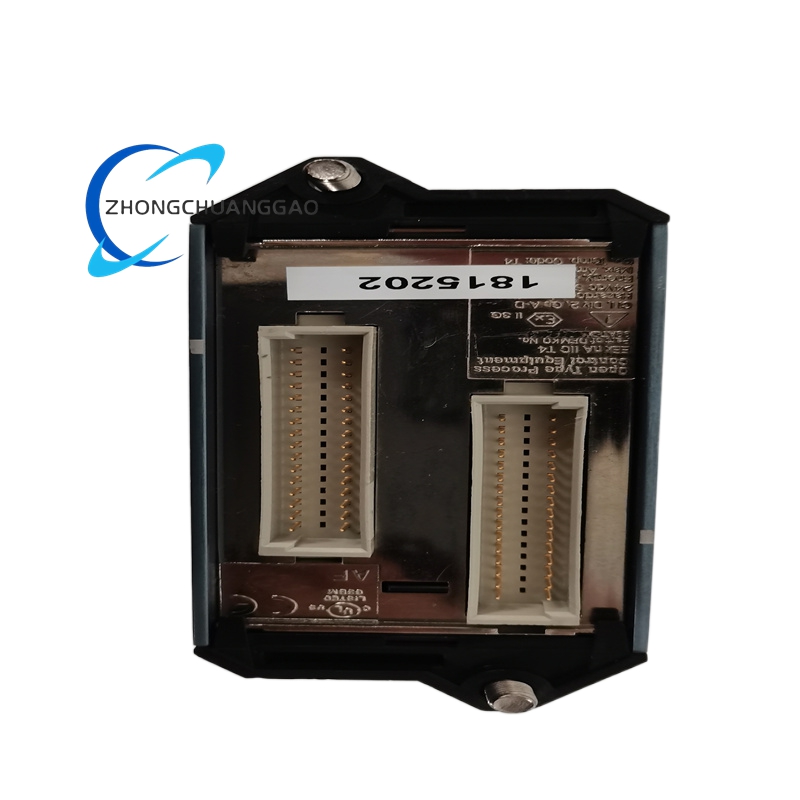

- Product Name: Foxboro FBMSVH Eight-Channel Isolated Analog Input Module
- Product Introduction: A multi-signal analog input module in the Foxboro I/A Series, supporting high-accuracy measurement of voltage, current, and temperature signals.
- Technical Specifications:
- Channels: 8 differential input channels.
Description
-
- Signal Types: 4–20 mA, 0–20 mA, ±1 V, ±5 V, 0–10 V, thermocouple (J/K/T/E/R/S/B/N/C), RTD (Pt100/Cu10).
- Resolution: 16-bit A/D conversion.
- Accuracy: ±0.05% full scale (23°C ±3°C, voltage/current).
- Isolation: 1500 V RMS channel-to-channel and channel-to-ground.
- Operating Temperature: -40°C to +70°C.
- Power Supply: 24 V DC ±10%, power consumption ~5 W.
- Features:
- HART communication support per channel for smart sensor diagnostics.
- High CMRR (>120 dB @ 50/60 Hz) and NMRR (>60 dB @ 50/60 Hz) for noise rejection.
- Rugged design for ISA S71.04 G3 severe environments.
- Application Scenarios: Oil and gas, chemical, power, pharmaceutical, and water treatment for monitoring pressure, temperature, flow, and level with high precision.
