Product Short Description

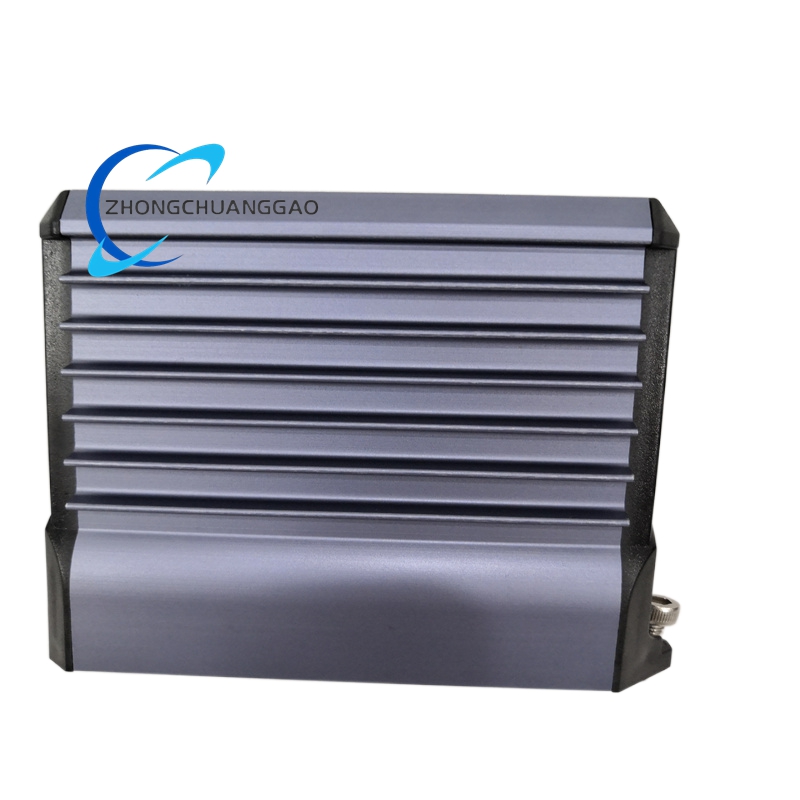

- Product Name: Foxboro FBM242 RH916YY Sixteen-Channel Discrete Output Interface Module
- Product Introduction: A high-density discrete output module in the Foxboro I/A Series, designed for on/off control of external devices with electrical isolation.
- Technical Specifications:
- Channels: 16 independent discrete output channels.
Description
-
- Voltage Ranges: DC:15–60 V; AC:120 V AC/125 V DC, 240 V AC.
- Rated Current: 2 A per channel (60 V DC), 0.5 A per channel (240 V AC).
- Isolation: Full channel-to-channel and channel-to-ground isolation.
- Operating Temperature: -20°C to +70°C.
- Power Supply: External power, 24 V DC for module logic.
- Features:
- ABS housing for G3-grade harsh environment compatibility.
- Fail-safe configuration options for safe state on power loss.
- Hot-swappable for easy maintenance without system shutdown.
- Application Scenarios: Chemicals, oil and gas, power, and water treatment for controlling valves, contactors, alarms, and conveyor starters.
