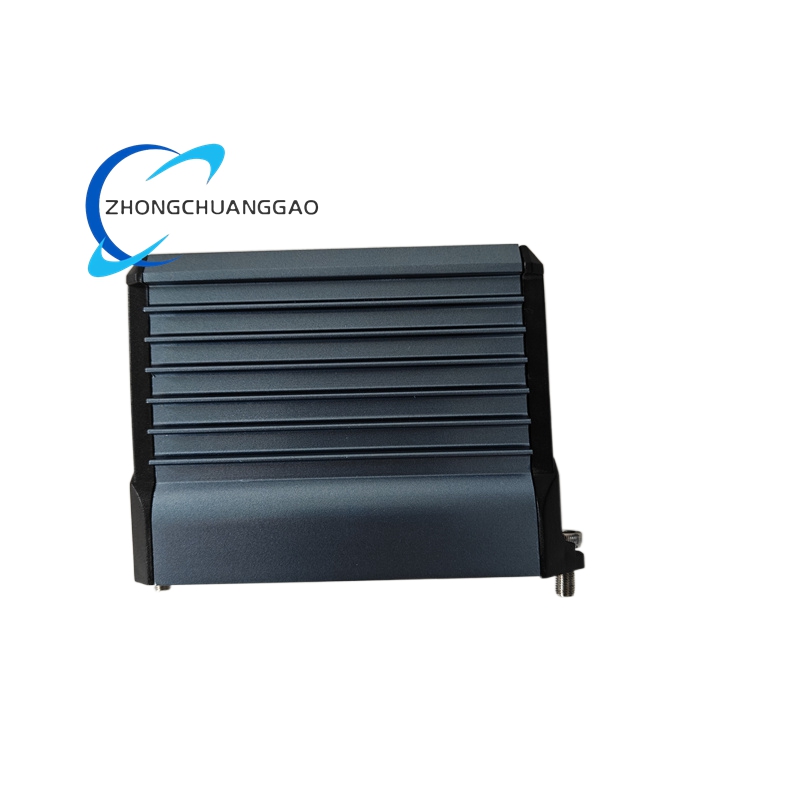

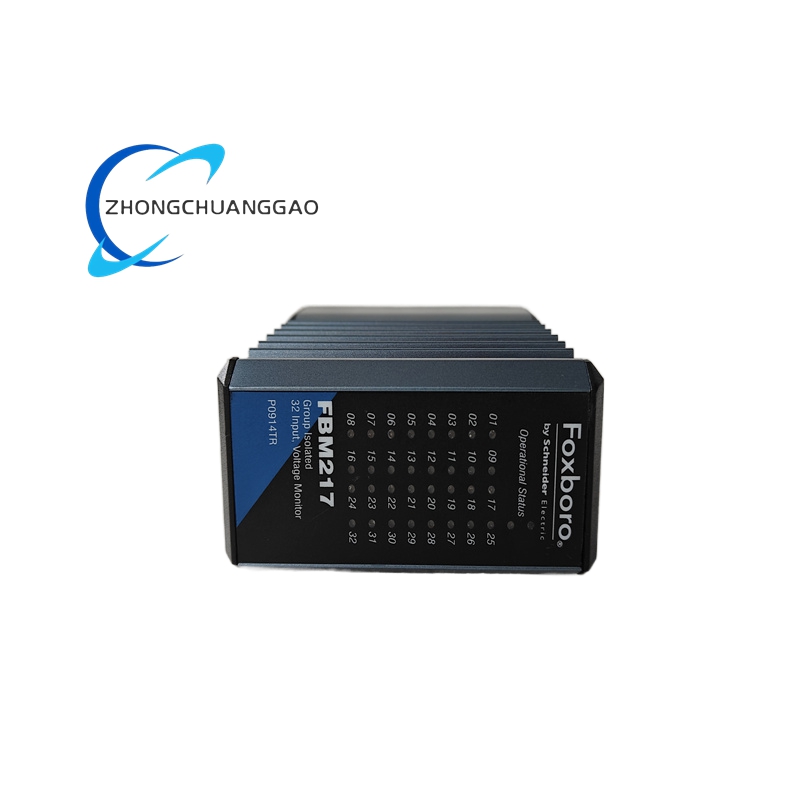

Foxboro FBM217 (P0914TR / P0916PW / RH916XZ) 32-Channel Discrete Input Module

Product Short Description

Product Name: Foxboro FBM217 (P0914TR / P0916PW / RH916XZ) 32-Channel Discrete Input Module
Product Introduction: A high-density discrete input module series offering 32 group-isolated channels for DC voltage or contact sense input. Variants (P0914TR, P0916PW, RH916XZ) differ in voltage ratings and environmental specifications, optimized for high-channel-count discrete monitoring in industrial DCS

Technical Specifications:
- Channels: 32 group-isolated discrete input channels
- Input Voltage (P0914TR): 15–30 V DC (Logic 1); 0–5 V DC (Logic 0); 2.2 mA typical currentparesource.schneider-electric.com.
- Input Voltage (P0916PW): 15–60 V DC, 120 V AC/125 V DC, 240 V AC (configurable).
- Input Voltage (RH916XZ): Programmable 4–20 mA, TC, RTD, ±10 V (multifunction variant).
- Filter/Debounce: Configurable (None, 4, 8, 16, 32 ms)
- Pulse Count: Up to 250 Hz
- Isolation: 600 V AC group isolation between channels and ground
- Environment: Operating -20°C to +60°C (P0914TR); -40°C to +85°C (RH916XZ).
Features:
- 32 isolated channels for discrete input monitoring (contact closure or voltage)
- Multiple variants for different voltage and signal types (DC, AC, analog, TC, RTD).
- Configurable input filtering and debouncing for noise rejection
- LED indicators for module status and individual channel states
- Supports redundant operation and hot-swappable replacement.
Applications: Large-scale industrial automation (power plants, chemical complexes, manufacturing facilities) requiring high-channel-count discrete input monitoring; suitable for switch contacts, relay status, motor control centers, and safety interlocks
