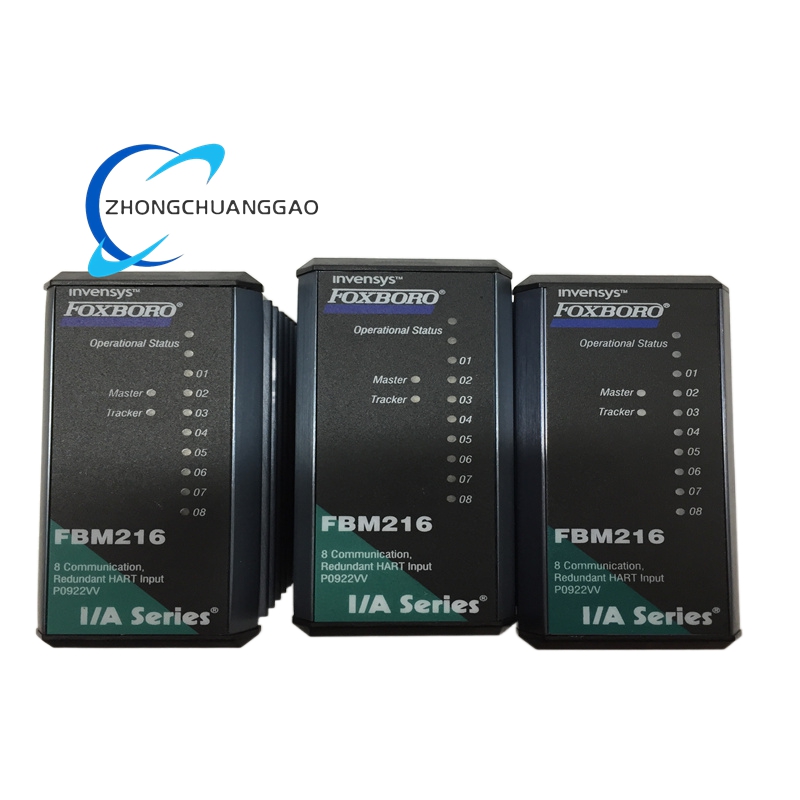

Foxboro FBM216 8-Channel High-Density Analog Input Module

Product Short Description

Product Name: Foxboro FBM216 8-Channel High-Density Analog Input Module
Product Introduction: A compact, high-performance analog input module offering 8 channels of 4–20 mA or HART input for the I/A Series DCS. It provides group isolation, high accuracy, and support for both standard and HART-enabled field devices in space-constrained applications.
Technical Specifications:
- Channels: 8 group-isolated analog input channels (4–20 mA ± HART).

- Input Range: 4–20 mA DC; sense resistor 61.9 Ω; total input resistance ≥280 Ω.
- Accuracy: ±0.03% of span; 15-bit resolution; temperature coefficient 50 ppm/°C.
- Filtering: 500 ms integration time; >100 dB CMR (50/60 Hz); >35 dB NMR (50/60 Hz).
- Isolation: 600 V AC group isolation between channels and ground.
- Update Rate: 100 ms per channel.
- Environment: Operating -20°C to +70°C; Class G3 harsh environment rated.
Features:
- 8 channels for 4–20 mA or HART analog input in a compact form factor.
- Group isolation reduces crosstalk and improves noise immunity.
- High-resolution sigma-delta conversion for accurate process data.
- Compatible with standard 4–20 mA transmitters and HART devices.
- Optimized for high-density I/O cabinets and space-constrained installations.
Applications: Process industries (chemical, oil/gas, power) requiring compact, high-density analog input monitoring; suitable for both standard and HART-enabled pressure, temperature, flow, and level transmitters.
