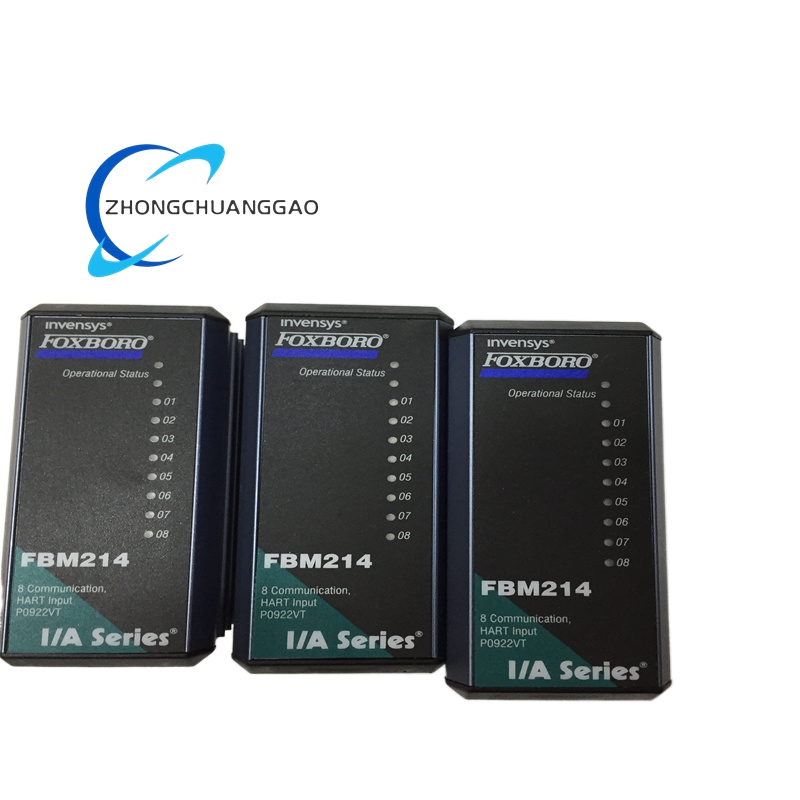

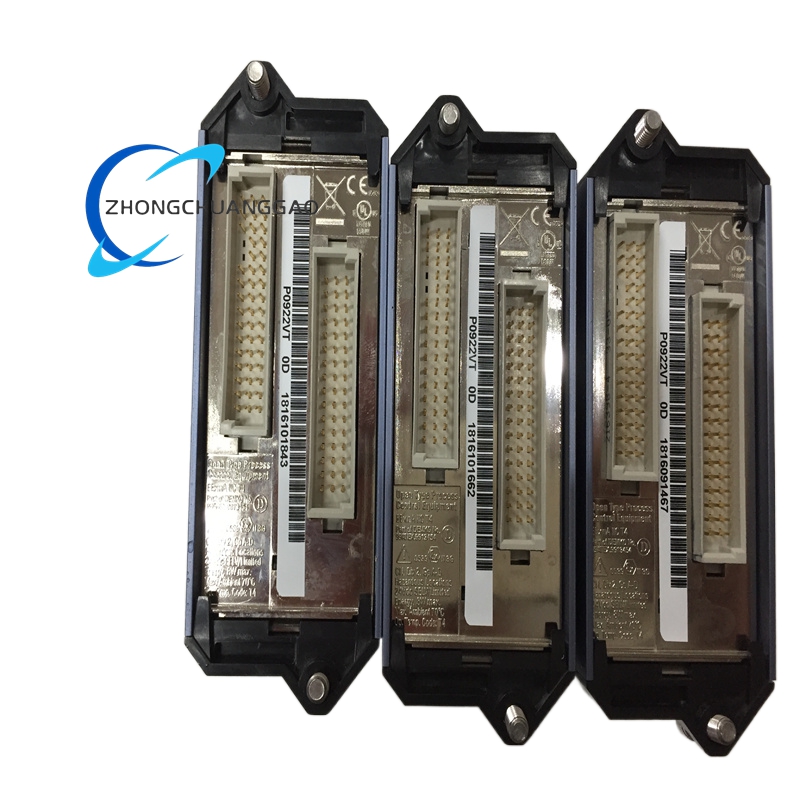

Foxboro FBM214 8-Channel HART Communication Analog Input Module

Product Short Description

Product Name: Foxboro FBM214 8-Channel HART Communication Analog Input Module
Product Introduction: A HART-enabled analog input module supporting 8 channels of 4–20 mA with superimposed HART digital communication. It acts as a HART master, enabling bi-directional communication with HART field devices for configuration, diagnostics, and data exchange.

Technical Specifications:
- Channels: 8 galvanically isolated analog input channels (4–20 mA + HART).
- Signal Compatibility: Standard 4–20 mA analog signals; HART FSK signals (Versions 5, 6, 7).
- HART Communication: Per-channel FSK modem; 1200 baud; 2 messages/sec; supports universal/common practice/device-specific commands.
- Accuracy: ±0.03% of span; 15-bit resolution; sigma-delta ADC.
- Isolation: Per-channel galvanic isolation (600 V AC withstand).
- Power: 24 V DC; common isolated power for all channels (or external power).
- Environment: Operating -40°C to +75°C; Class G3 harsh environment rated.
Features:
- Mixed support for standard 4–20 mA devices and HART-enabled transmitters.
- Bi-directional HART communication for device configuration, diagnostics, and asset management.
- Per-channel isolation eliminates ground loops and crosstalk.
- High accuracy and resolution for precise process monitoring.
- Rugged compact design for industrial control cabinets.
Applications: Smart process instrumentation (pressure, temperature, flow, level transmitters) in chemical, oil/gas, power, and pulp/paper industries; enables HART device management and predictive maintenance.
