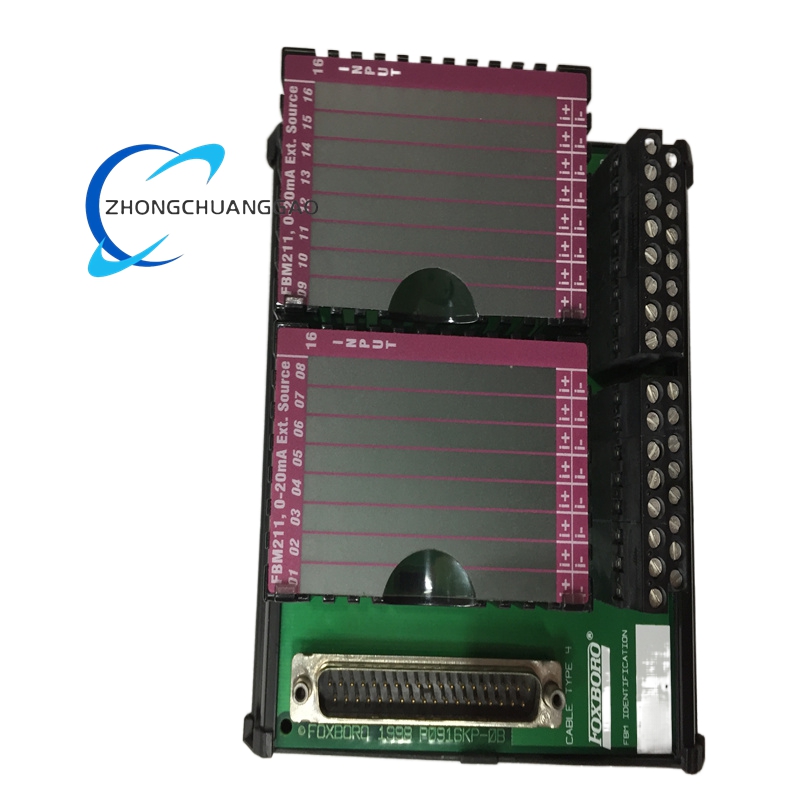

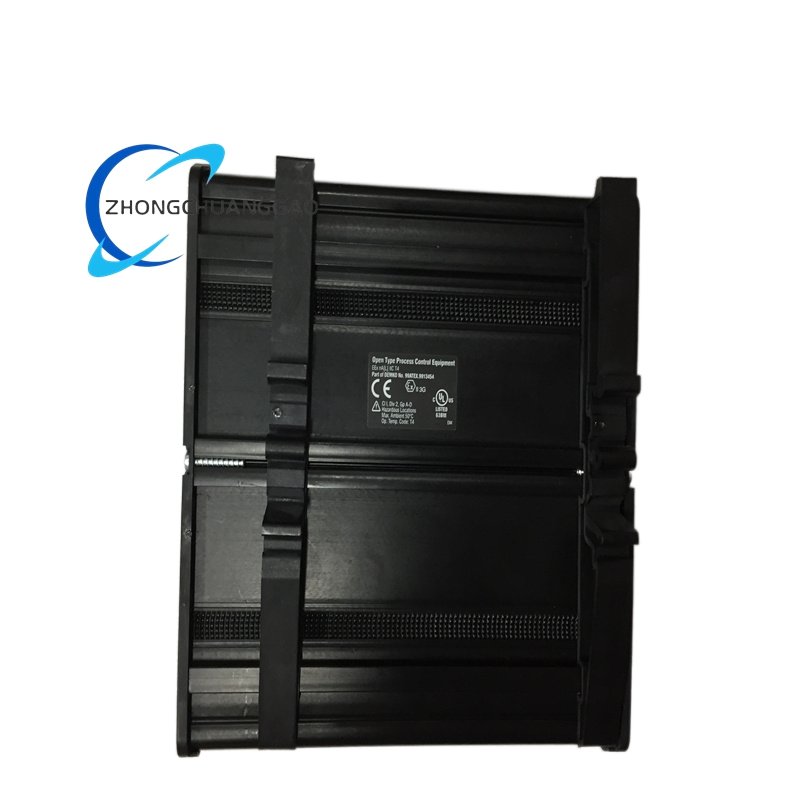

Foxboro FBM211 P0916JT 16-Channel 4–20 mA Analog Input Module

Product Short Description

Product Name: Foxboro FBM211 P0916JT 16-Channel 4–20 mA Analog Input Module
Product Introduction: A high-density analog input module in the I/A Series 200 Series, providing 16 channels of 4–20 mA current input for process monitoring. It features group isolation, high accuracy, and sigma-delta conversion for precise signal acquisition.

Technical Specifications:
- Channels: 16 differential analog input channels (group-isolated: 8 channels per group)
- Input Range: 0–20.4 mA DC (4–20 mA standard); current-limited to 33 mA
- Accuracy: ±0.03% of span (including nonlinearity); temperature coefficient ±50 ppm/°C.
- Conversion: Sigma-delta ADC per channel; software-configurable integration
- Isolation: 600 V AC group isolation from ground and module logic.
- Power: 24 V DC nominal via backplane; 7 W max power consumption.
- Environment: Operating -20°C to +70°C; Class G3 harsh environment rated
- Physical: Single-wide 200 Series form factor; ~0.4 kg.
Features:
- 16 channels for 4–20 mA transmitters (pressure, temperature, flow, level)paresource.schneider-electric.com.
- Group isolation reduces crosstalk and improves noise immunityparesource.schneider-electric.com.
- High-resolution sigma-delta conversion for accurate process dataparesource.schneider-electric.com.
- Configurable rate-of-change limits for process anomaly detectionparesource.schneider-electric.com.
- Compatible with redundant 2 Mbps module fieldbus and remote/local termination assemblies
Applications: Process industries (chemical, oil/gas, power, pharmaceuticals) for monitoring analog process variables from 4–20 mA transmitters, providing high-density, reliable data acquisition
