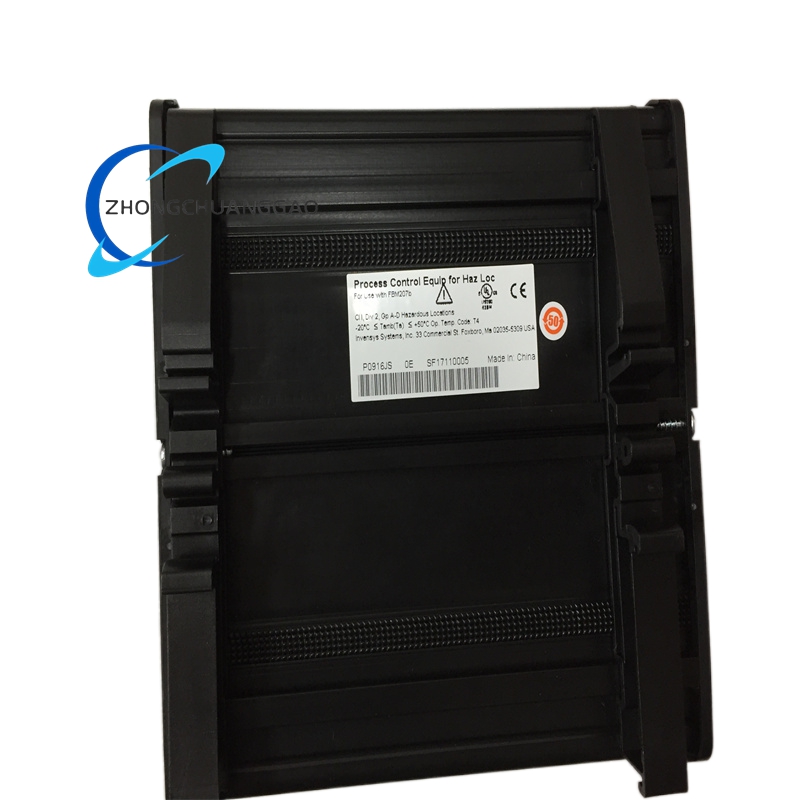

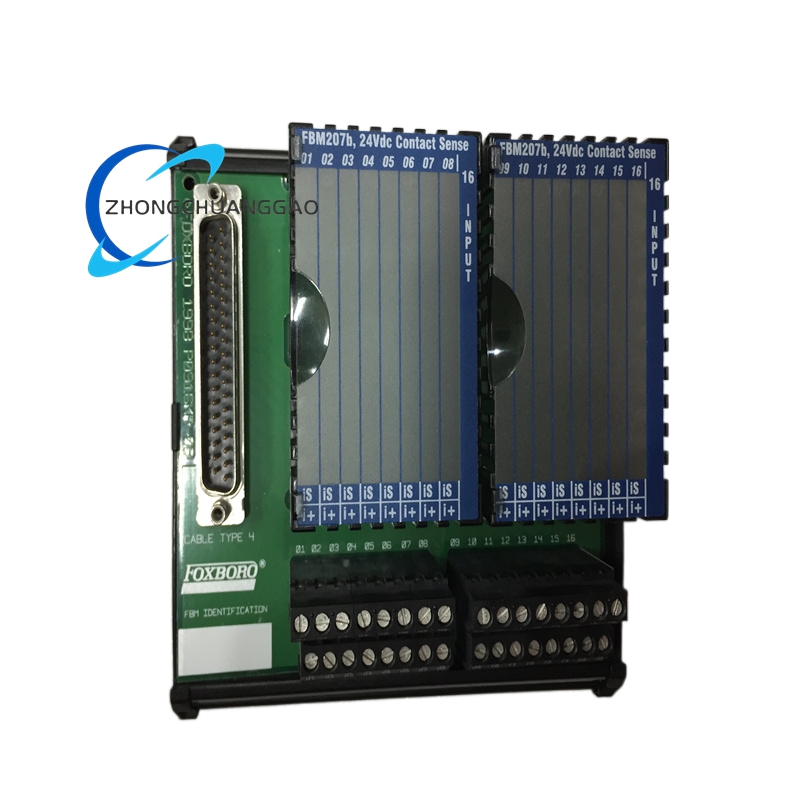

Foxboro FBM207B P0916JS 16-Channel Contact Sense Input Module

Product Short Description

Product Name: Foxboro FBM207B P0916JS 16-Channel Contact Sense Input Module
Product Introduction: A compact, rugged input interface module in the Foxboro I/A Series 200 Series, designed for discrete contact sensing and voltage monitoring in industrial automation. It provides galvanic isolation for 16 independent channels and supports both 24 V DC contact sense and 15–60 V DC voltage monitoring applications.

Technical Specifications:
- Channels: 16 galvanically isolated input channels.
- Contact Sense Input: 24 V DC ±15% open-circuit voltage; 3.2 mA typical short-circuit current; on-state resistance ≤1 kΩ; off-state resistance ≥100 kΩ.
- Voltage Monitor Input: Logic 1 (On): 15–60 V DC; Logic 0 (Off): 0–5 V DC; 1.4 mA typical input current at 5–60 V DC.
- Filter/Debounce: Configurable (None, 4, 8, 16, 32 ms).
- Power: 24 V DC ±10% supply; 3 W max power consumption.
- Environment: Operating -40°C to +85°C; Class G3 harsh environment rated.
- Dimensions: 102 mm × 45 mm × 104 mm; weight ~284 g.
Features:
- 16 isolated channels for contact closure or DC voltage input.
- Group isolation (600 V AC withstand) between channels and ground.
- Supports discrete input, ladder logic, pulse count (up to 250 Hz), and sequence-of-events (SOE) applications.
- LED indicators for module status and individual channel states.
- Hot-swappable; compatible with redundant 2 Mbps module fieldbus.
Applications: Oil and gas, chemical processing, power generation, and water/wastewater treatment for monitoring switch contacts, relay status, and discrete field device states.
