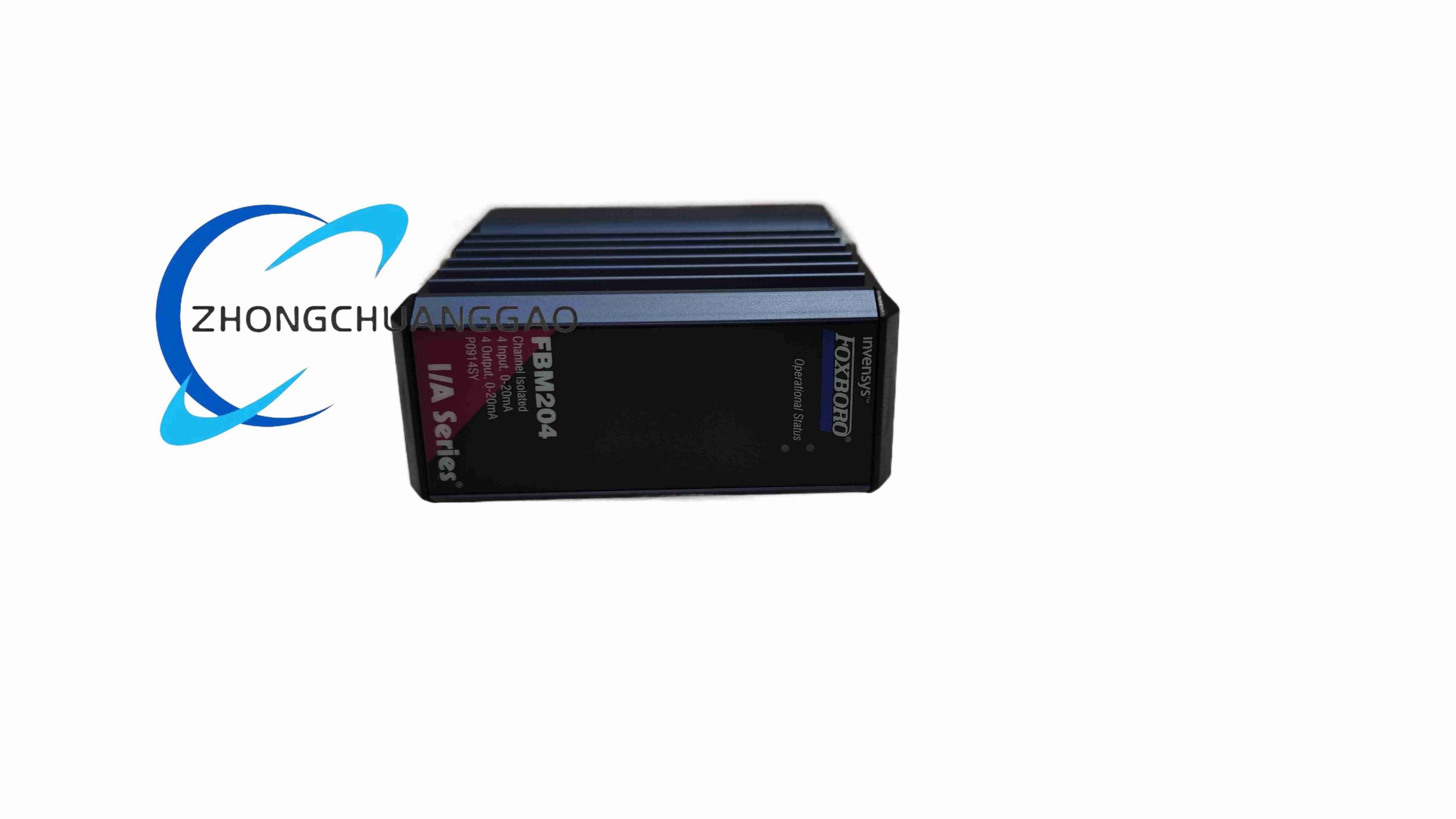

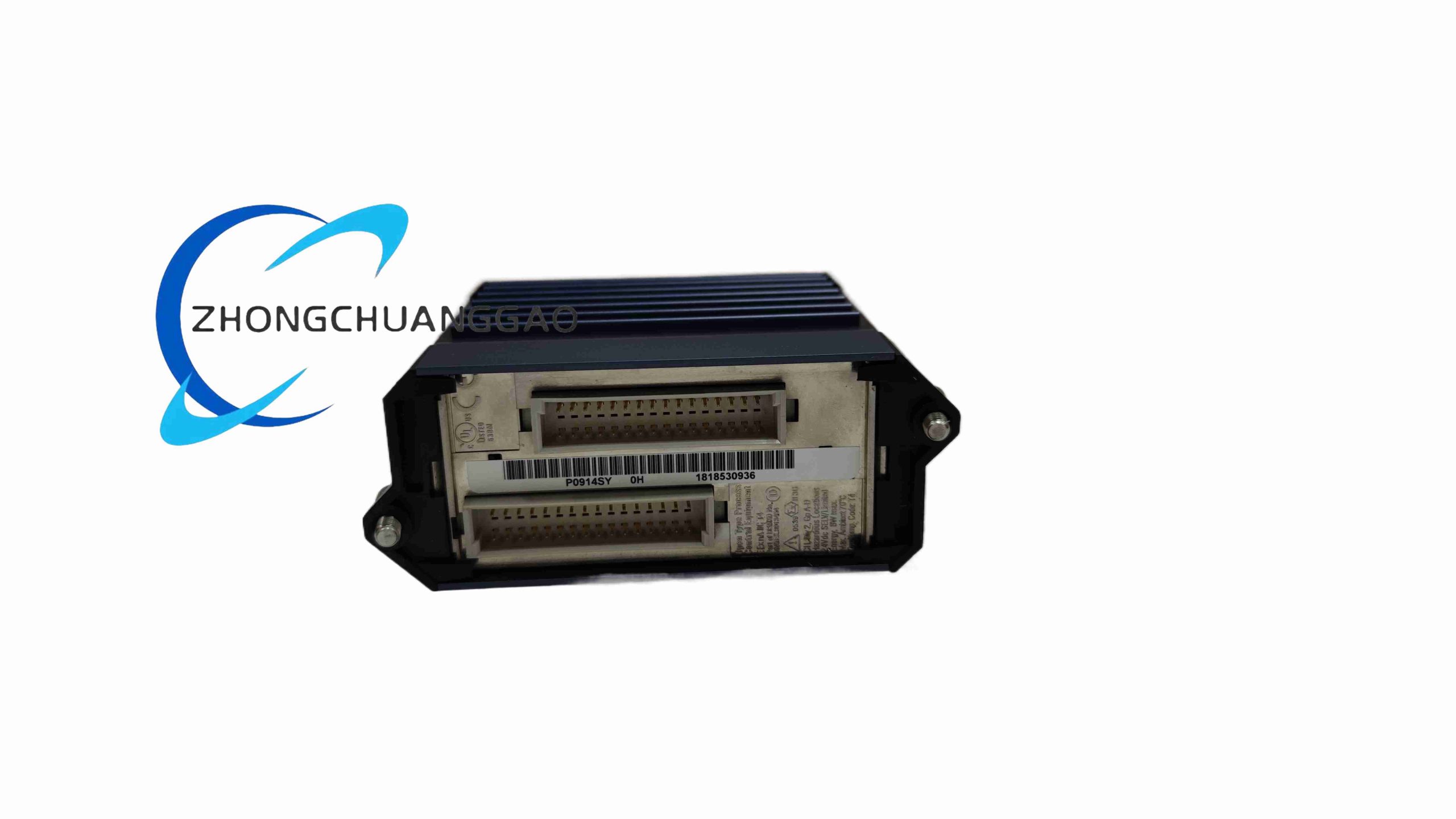

FOXBORO FBM204

Technical Specifications: 8 isolated analog input channels in the standard AI configuration; input types 4 to 20 mA, 0 to 20 mA, 0 to 5 V and 1 to 5 V according to terminal assembly; current input impedance approximately 250 ohms for HART versions; 16-bit analog-to-digital conversion on supported revisions; accuracy typically ±0.1 percent of span; channel-to-channel and channel-to-ground isolation 500 V DC or higher; update interval approximately 100 ms per full scan on standard configurations; backplane 24 V DC power; operating temperature 0 to 60 °C for standard control-room equipment.

Functional Features: HART communication through compatible terminal assemblies, open-circuit and over-range detection, per-channel engineering configuration, system diagnostics, hot replacement on supported carriers, and integration with I/A control, alarm and historization functions.

Application Scenarios: Pressure, differential-pressure and flow transmitter acquisition; level and temperature transmitter input where voltage or HART is used; compressor and turbine auxiliary analog collection; power-plant and petrochemical process monitoring; pharmaceutical and water-treatment dosing feedback.

Performance Parameters: Span accuracy ±0.1 percent FS on calibrated ranges; common-mode rejection suitable for grounded transmitters when isolated inputs and proper shielding are used; HART demodulation supports device parameter reading, calibration and diagnostics without external modems on HART-enabled terminal assemblies.

Material Composition: Industrial analog PCB, precision resistors, isolation barriers, HART modem components where fitted, molded housing, metal backplane connector, and controlled-impedance terminal interfaces.

Structural Characteristics: Electronic module installs in the I/A input/output baseplate; analog field wiring terminates on the terminal assembly such as RH914YS for standard AI or RH914XA for HART AI; LEDs indicate module health and communication status according to carrier design.

Working Principle: Transmitter current or voltage is received through the terminal assembly, converted to an isolated low-level signal, digitized by the module ADC, and transmitted to the I/A processor. HART versions superimpose digital communication on the 4 to 20 mA loop and recover device data through the integrated modem circuitry.

Installation Requirements: Confirm whether the asset is analog input or analog output before wiring; install the matching terminal assembly; use shielded twisted-pair transmitter cables; ground shields at the instrument or cabinet end according to the I/A grounding rule; verify 24 V backplane supply; configure range, fault action and HART address in system software.

Usage Precautions: For analog-input use, do not apply voltage higher than the selected range; for HART loops, keep loop resistance within transmitter and HART modem limits; for output-labeled RH914SY replacements, verify load resistance, short-circuit protection and 4 to 20 mA demand polarity; avoid mixing input and output terminal assemblies; test each channel with a calibrated source after commissioning.
