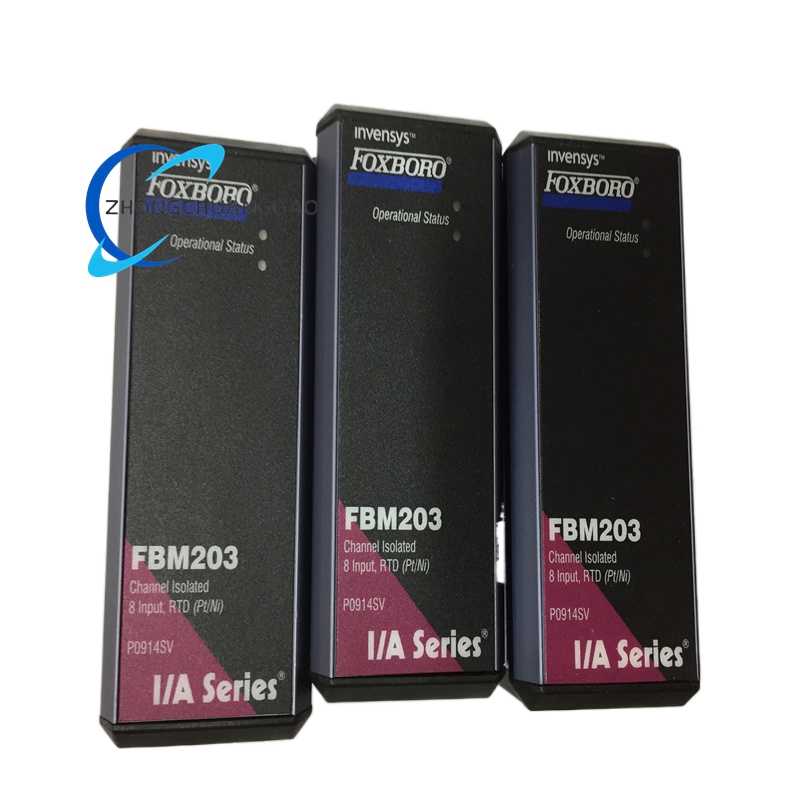

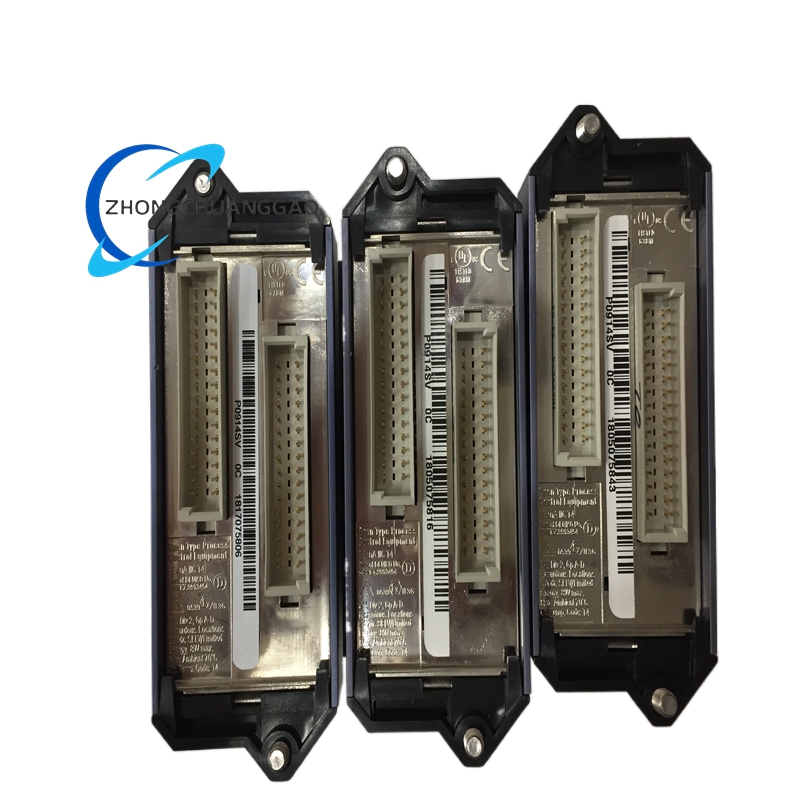

Foxboro FBM203 8-Channel RTD Input Module

Description

• • Sensor Types: Platinum (Pt100/Pt1000), Nickel, Copper RTDs
  • Input Range: 0–320 Ω (2/3-wire); 0–30 Ω (4-wire, FBM203d)
  • Resolution: 16 bits
  • Accuracy: ±0.05% of full scale
  • Communication: 2 Mbps redundant Fieldbus
  • Operating Voltage: 24 V DC
  • Temperature Range: -40°C to +85°C
  • Dimensions: 100 mm × 45 mm × 115 mm
  • Weight: 0.3 kg
• Key Features:
  • Multi-Wire Support: Compatible with 2-wire, 3-wire, and 4-wire RTDs.
  • High Stability: Precision reference resistors for long-term accuracy.
  • Hot-Swappable: Online replacement for maintenance.
• Applications: Pharmaceutical (cleanroom temps), food & beverage (processing lines), and chemical (reactor temperature control).
