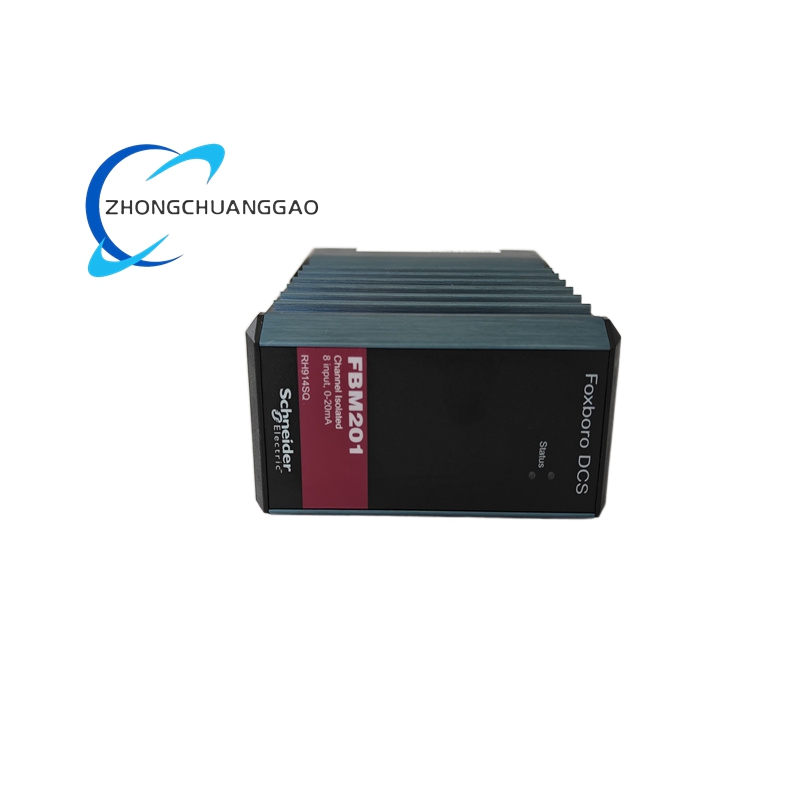

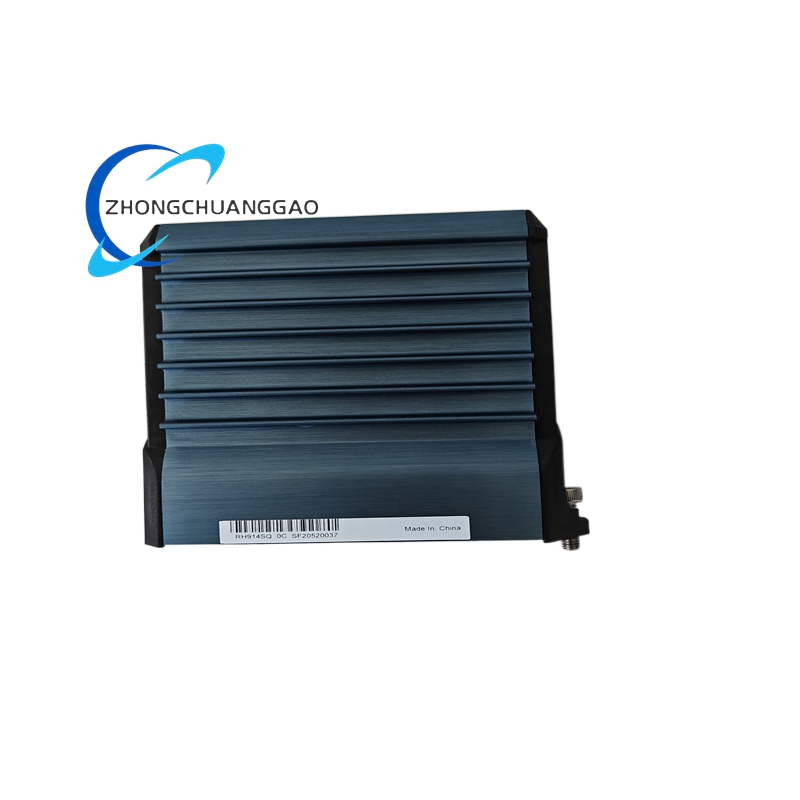

Foxboro FBM201 RH914SQ 8-Channel Analog Input Module

Description

• • Input Range: 0–20 mA DC
  • Input Impedance: 61.5 Ω (nominal)
  • Resolution: 16 bits (Sigma-Delta ADC per channel)
  • Accuracy: ±0.03% of span; ±50 ppm/°C temp coefficient
  • Noise Rejection: >100 dB CMRR, >95 dB NMRR
  • Communication: 2 Mbps redundant Fieldbus
  • Operating Voltage: 24 V DC ±10%
  • Temperature Range: -40°C to +85°C
  • Dimensions: 100 mm × 45 mm × 115 mm
  • Weight: 0.3 kg
• Key Features:
  • HART Compatibility: Works with HART-enabled 4–20 mA transmitters.
  • High Precision: Sigma-Delta conversion for accurate, noise-immune readings.
  • G3 Environment Rated: Suitable for high humidity, dust, and EMI environments.
• Applications: Process industries (chemical, oil & gas) for flow, pressure, level, and temperature transmitter interfacing.
