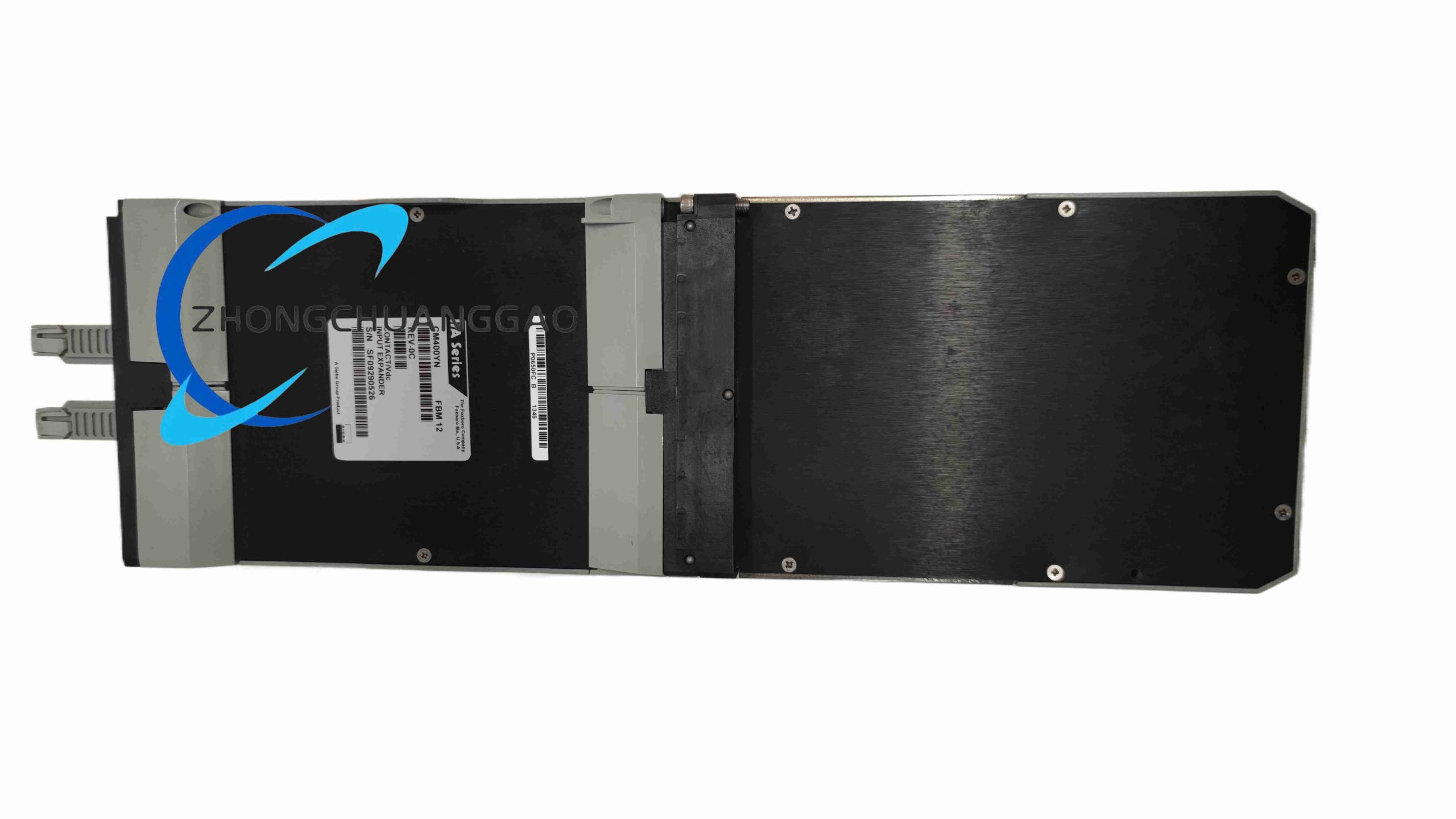

FOXBORO FBM12

Technical Specifications: 8 independent high-level analog inputs; selectable ranges including 0 to 50 mV, 0 to 1 V, 0 to 5 V and 0 to 10 V, with additional millivolt ranges according to configuration; upgrade reference FBM212 or P0973AG for 200 Series migration; I/A 100 Series and compatible 200 Series carriers according to system revision; galvanic channel isolation; high-resolution analog-to-digital conversion suitable for precision measurement.

Functional Features: Software-selectable range per channel, open-circuit and over-range detection on supported terminal assemblies, cold-reference compensation only where combined temperature configurations are used, system diagnostics, and linearization through I/A engineering configuration.

Application Scenarios: Load-cell and weighing systems, displacement and position feedback, millivolt transducer reading, potentiometer feedback, laboratory and pilot-plant voltage measurement, and high-level process instrumentation where current loops are not used.

Performance Parameters: Range accuracy typically within ±0.1 percent of span for calibrated high-level configurations; millivolt accuracy depends on cabling, shielding and terminal-assembly excitation; input impedance high enough to avoid loading voltage-source transmitters; update rate aligned to I/A analog scanning interval.

Material Composition: Precision analog frontend PCB, low-drift amplifiers, isolation components, molded insulated housing, metal backplane connector, and plated terminal interfaces through the assigned terminal assembly.

Structural Characteristics: Electronic module and terminal assembly separation; field wires terminate on the terminal block; internal conditioning, multiplexing and isolation stages are enclosed in the module; diagnostic LEDs are provided according to carrier and terminal design.

Working Principle: Field voltage signals enter through the terminal assembly, are conditioned and isolated, then multiplexed to a high-resolution ADC. The digital values are transmitted to the I/A controller, where engineering-unit conversion, alarming and control strategies are executed.

Installation Requirements: Use the FBM12-compatible terminal assembly specified for high-level or millivolt input; keep signal cables shielded and separated from power and switching conductors; ground shields at the designated instrument ground; verify sensor output range before channel configuration; confirm 100 Series or 200 Series baseplate compatibility.

Usage Precautions: Do not apply current-loop transmitters unless a certified shunt or current-to-voltage terminal is used; avoid exceeding the selected voltage range; calibrate zero and span after installation; protect millivolt inputs from ground loops by using isolated sensors or proper shielding; verify excitation supply requirements for bridge-type sensors before commissioning.
