Product Short Description

  • Product Name: 16-Channel Thermocouple/Millivolt Input Module
  • Product Description: A high-density fieldbus module for the I/A Series DCS, designed to interface with thermocouples and low-level mV signals.
  • Technical Specifications:
    • Input Channels: 16 isolated channels
Share on Facebook
Share on Twitter
Email This Product

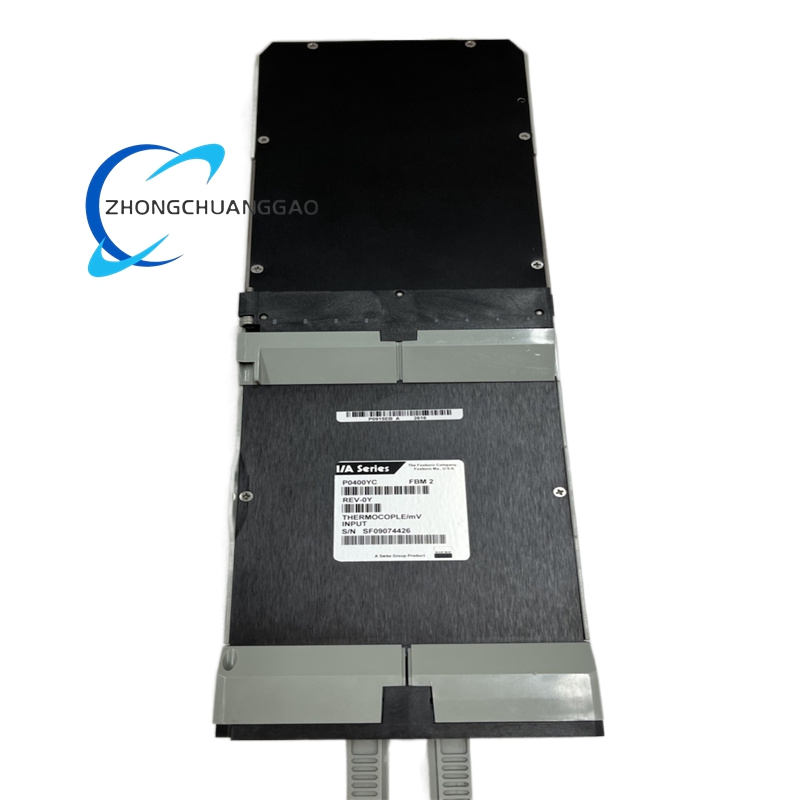

Foxboro FBM02 16-Channel Thermocouple

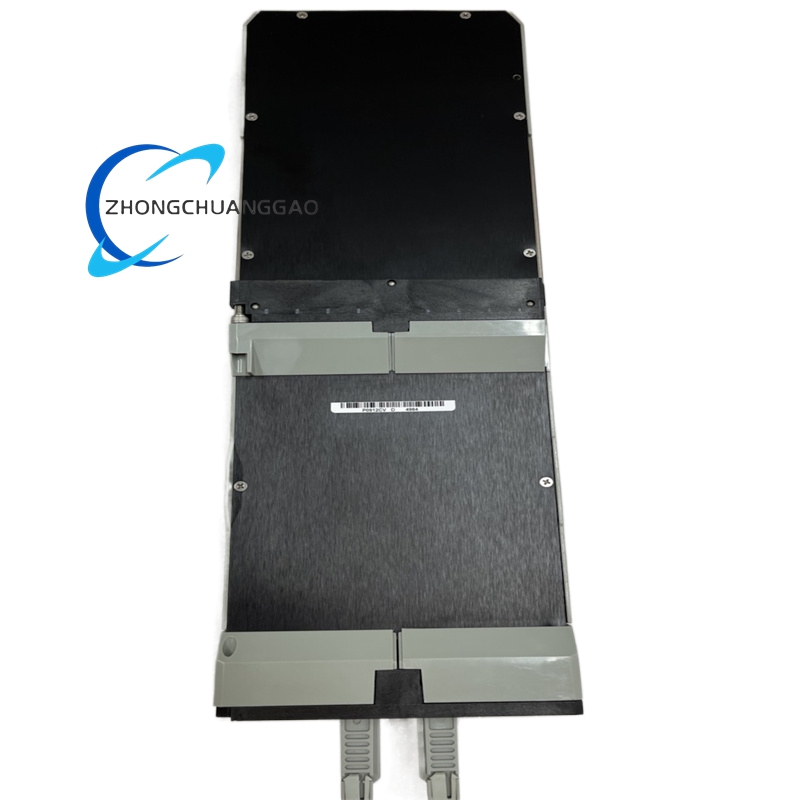

Foxboro FBM02 16-Channel Thermocouple - Image 2

Description

    • Signal Types: Thermocouple (K, E, R, S, T, J), ±100 mV, ±500 mV
    • Resolution: 16 bits
    • Accuracy: ±0.1% of full scale
    • Cold Junction Compensation: Built-in (per channel)
    • Communication: 2 Mbps redundant Fieldbus
    • Operating Voltage: 24 V DC
    • Temperature Range: -40°C to +70°C
    • Dimensions: 104 mm × 45 mm × 114 mm
    • Weight: 0.28 kg
  • Key Features:
    • High Density: 16 channels reduces cabinet space.
    • Channel Isolation: 1500 VAC isolation between channels and ground.
    • Hot-Swappable: Replaceable online without system shutdown.
  • Applications: Power (boiler/turbine temps), chemical (reactor monitoring), and metallurgy (furnace control).
