Product Short Description
Product Introduction

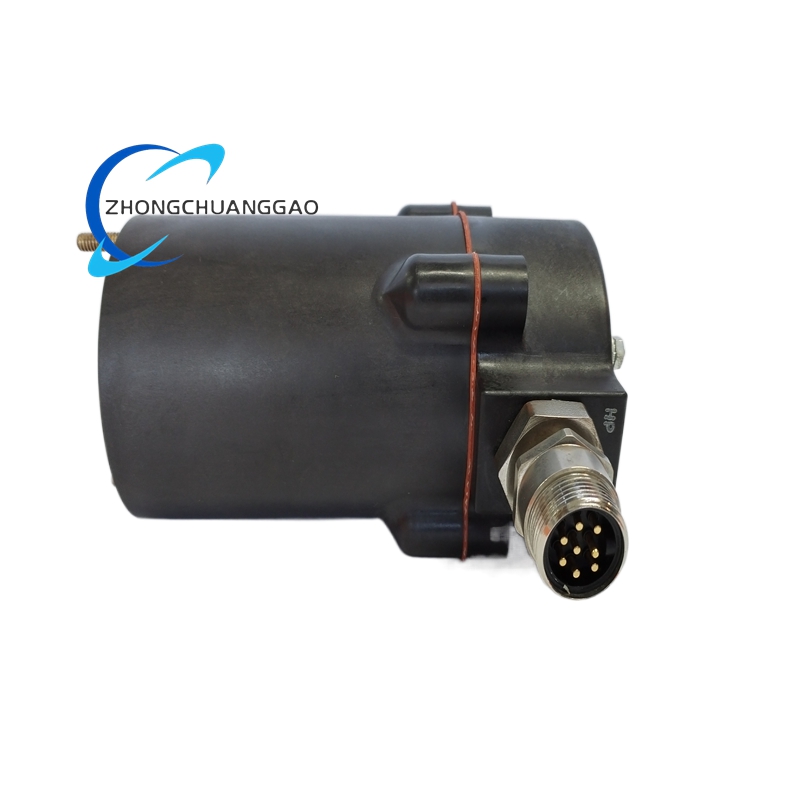

This is a high-sensitivity ultraviolet flame detector for industrial combustion systems. It adopts UV sensing technology to monitor combustion flame status in real time, outputs switch signal for interlock control. It is mainly used for flame safety monitoring of various industrial burners and combustion furnaces in general industrial areas.
Description
- Input Power: 120/240 VAC, 50/60 Hz
- Detection Type: Ultraviolet flame detection
- Flame Response Time: ≤ 0.4 s
- Operating Temperature: -35 °C ~ +80 °C
- Protection Class: IP65
- Output Mode: Relay dry contact output
- Detection Angle: Fixed industrial detection angle
- Power Consumption: ≤ 4 VA
- High-sensitivity UV flame sensing, accurate identification of flame status
- Strong anti-interference ability against ambient light and heat radiation
- Fast flame loss response for safety protection
- On-board flame status LED indicator
- Compact integrated structure, easy installation and maintenance
- Wide voltage adaptation for industrial power grid
- Effective Detection Range: 0.5 m ~ 12 m
- Sensitivity Adjustment: Stepless sensitivity regulation
- Contact Capacity: 240 VAC, 5 A resistive load
- Operating Humidity: 5% ~ 98% (non-condensing)
- Long-term Stability: No performance drift after long-time operation
- Housing: Die-cast aluminum alloy anti-corrosion shell
- Optical Window: High temperature resistant transparent quartz glass
- Core Sensor: High-sensitivity ultraviolet photoelectric tube
- Internal Circuit: High temperature resistant industrial circuit components
- Sealing Ring: High temperature resistant rubber sealing parts
- Cylindrical integrated structure, compact overall size
- Front optical detection window, rear wiring terminal cavity
- Standard external thread mounting structure
- Internal fully sealed design, dust-proof and water-proof
- Modular internal components for easy replacement of core parts
The ultraviolet ray generated by combustion flame penetrates the optical window and acts on the internal UV sensor. The sensor converts optical signal into electrical signal. After amplification and logic judgment by internal circuit, the detector outputs flame existence signal to the control system. Once the flame goes out, the UV signal disappears, the circuit immediately reverses the output state, sends flame failure alarm signal and links with combustion control system to cut off fuel supply.
- Higher detection sensitivity and faster response speed
- Compact structure, flexible installation position selection
- IP65 protection grade, adapting to workshop harsh environment
- Low power consumption and stable long-term operation
- Simple structure, low failure rate and convenient maintenance
Industrial boilers, heating furnaces, textile plant burners, food factory combustion equipment, general industrial gas and oil burning furnaces
- Install on the reserved mounting seat of combustion equipment, align the optical window towards flame.
- Tighten the thread to ensure firm installation and good sealing.
- Route wires into the rear wiring cavity and fix terminals firmly.
- Avoid direct strong light irradiation on the optical window for a long time.
- Clean the surface of optical window regularly to avoid dirt affecting detection.
- Do not knock or drop the detector during use and transportation.
- Cut off power supply before disassembly and maintenance.
- Adjust sensitivity properly according to actual flame conditions.
- Replace the UV sensor in time when detection sensitivity decreases obviously.
