Product Short Description
Product Introduction

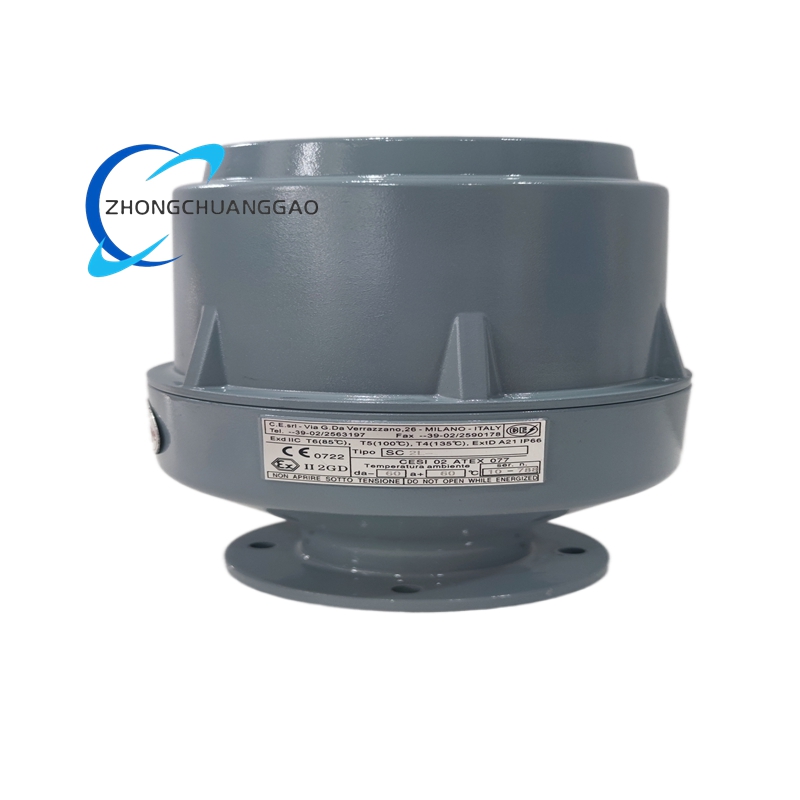

This is an explosion-proof ultraviolet (UV) flame detector, specially used for flame detection and monitoring of industrial combustion equipment. It detects ultraviolet radiation generated by flame combustion, converts optical signals into electrical signals, and sends flame on/off status to the control system for combustion safety interlock protection. It is designed for explosive hazardous areas.
Description
- Power Supply: 120/240 VAC, 50/60 Hz
- Detection Spectrum: Ultraviolet (UV) spectrum
- Response Time: ≤ 0.5 s
- Explosion-proof Grade: Ex certified explosion-proof structure
- Operating Temperature: -40 °C ~ +85 °C
- Protection Class: IP66
- Output Signal: Relay contact signal
- Mounting Thread: Standard industrial mounting thread
- Ultraviolet flame detection, immune to infrared heat interference
- Explosion-proof structure, applicable to Class I hazardous explosive areas
- Fast flame on and flame out response
- Built-in optical window self-cleaning design
- Flame strength signal output and status indication
- Anti-sunlight interference function
- Detection Distance: Maximum 15 m effective detection range
- Flame Sensitivity: Adjustable sensitivity level
- Relay Contact Rating: 240 VAC, 5 A
- Vibration Resistance: Compliant with explosion-proof equipment vibration standard
- Continuous Operation Time: 24-hour uninterrupted monitoring
- Outer Explosion-proof Housing: Cast aluminum alloy with anti-corrosion treatment
- Optical Window: High temperature resistant quartz glass
- Internal Sensor: High-sensitivity UV phototube
- Internal Circuit: High temperature resistant industrial circuit board
- Sealing Parts: High temperature resistant fluorine rubber sealing ring
- Integrated explosion-proof enclosure, overall pressure-resistant structure
- Front quartz glass optical window for flame signal collection
- Rear sealed wiring cavity for safe wiring in hazardous areas
- Standard external thread for fixed installation on combustion equipment
- Fully sealed structure, dust-proof, waterproof and explosion-proof
When the burner ignites, the flame generates ultraviolet radiation. The UV light passes through the quartz glass window and irradiates on the internal UV phototube. The phototube converts optical signal into weak electrical signal. After amplification, filtering and judgment by internal circuit, the detector outputs flame present signal to external control system. When flame extinguishes, UV signal disappears, the circuit acts immediately and outputs flame loss signal to trigger alarm and interlock protection.
- UV detection principle, not affected by furnace wall high temperature and infrared radiation
- Professional explosion-proof design, safe for flammable and explosive working conditions
- Fast response speed, realizing rapid flame loss protection
- IP66 high protection grade, adapting to harsh industrial site
- High temperature resistance, long service life in high-temperature combustion environment
Petrochemical heating furnaces, industrial boilers, gas burners, oil-fired combustion equipment, chemical hazardous area combustion monitoring
- Install at the designated observation position of combustion equipment, align optical window with flame area.
- Tighten mounting thread to ensure firm installation and good sealing.
- Complete wiring in explosion-proof wiring cavity per explosion-proof electrical specifications.
- Keep the optical window unobstructed, no shielding objects.
- Install in accordance with local explosion-proof electrical installation codes.
- Regularly clean dust and oil dirt on quartz glass window to ensure detection sensitivity.
- Do not impact or scratch the optical window.
- Do not disassemble the explosion-proof housing in hazardous areas during operation.
- Check wiring sealing performance periodically to prevent gas leakage.
- Calibrate detection sensitivity regularly per equipment operation requirements.
