Product Short Description
Product Overview
Matched kit of 32mm wide-range PR6426 probe and customized high-gain CON021 preamplifier, optimized for ultra-large rotating equipment with wide shaft displacement variation, delivering high linearity analog output signal for high-precision heavy machinery protection systems.
Description
Core Technical Specifications
PR6426010-110 Probe
- Sensing Head Diameter: 32 mm
- Static Measuring Range: ±4.0 mm
- Sensitivity: 2 V/mm
- Probe Head Operating Temperature: -35°C ~ +175°C

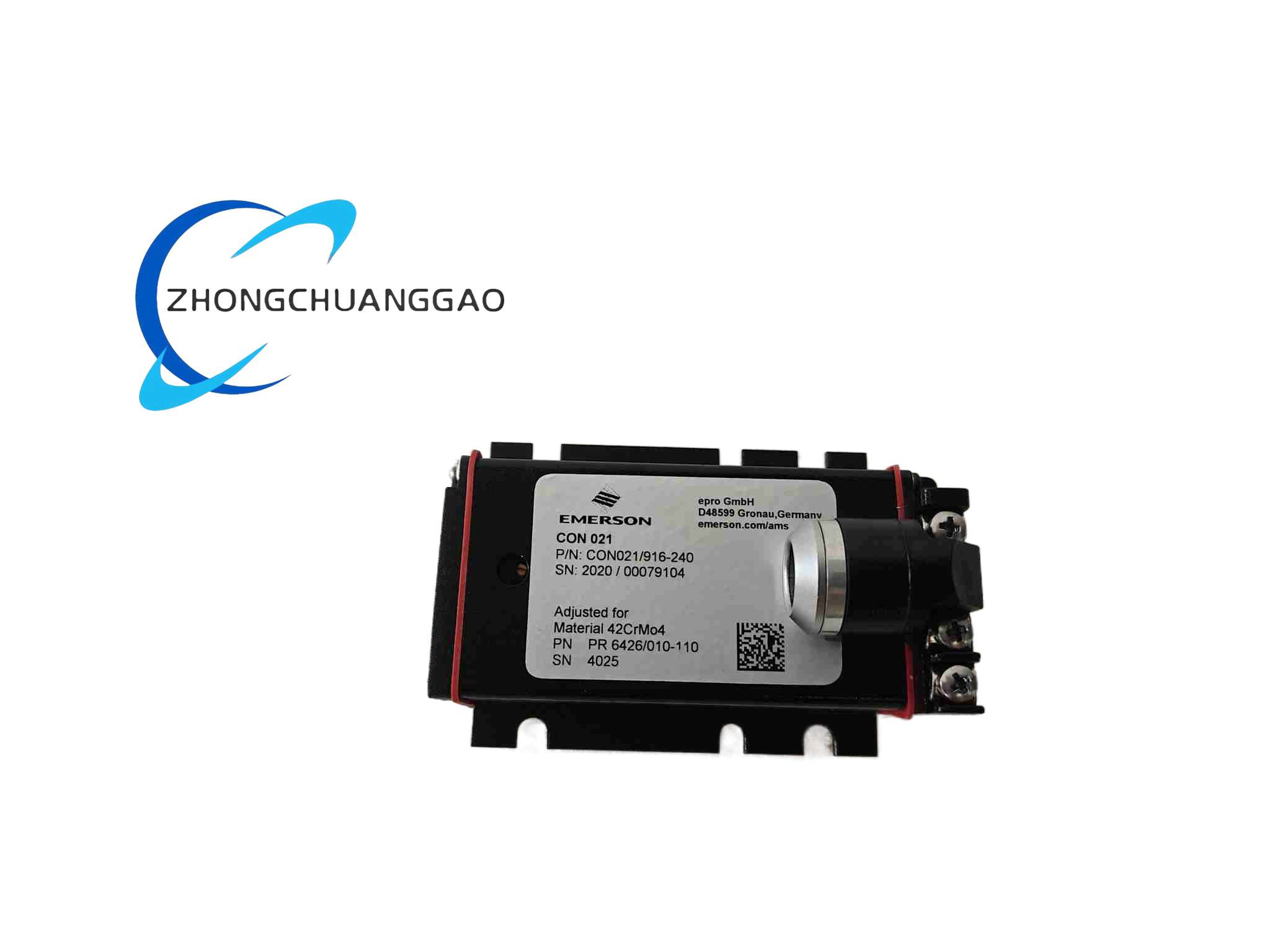

CON021/916-240 Custom Pre-converter
- Input matching: PR6426 32mm large-diameter probes only
- Frequency bandwidth: 0 ~ 20 kHz
- Power supply: -23VDC ~ -32VDC
- High-gain linear output voltage range: -5 V ~ -26 V
- IP65 aluminum alloy sealed housing, industrial anti-shock and vibration design
5.4 Function, Working Principle, Structure, Application & Operation Rules
Consistent with independent PR6426 probe parameters, with customized CON021 high-gain preamplifier to amplify weak displacement signals of large-diameter shafts and improve monitoring resolution.
