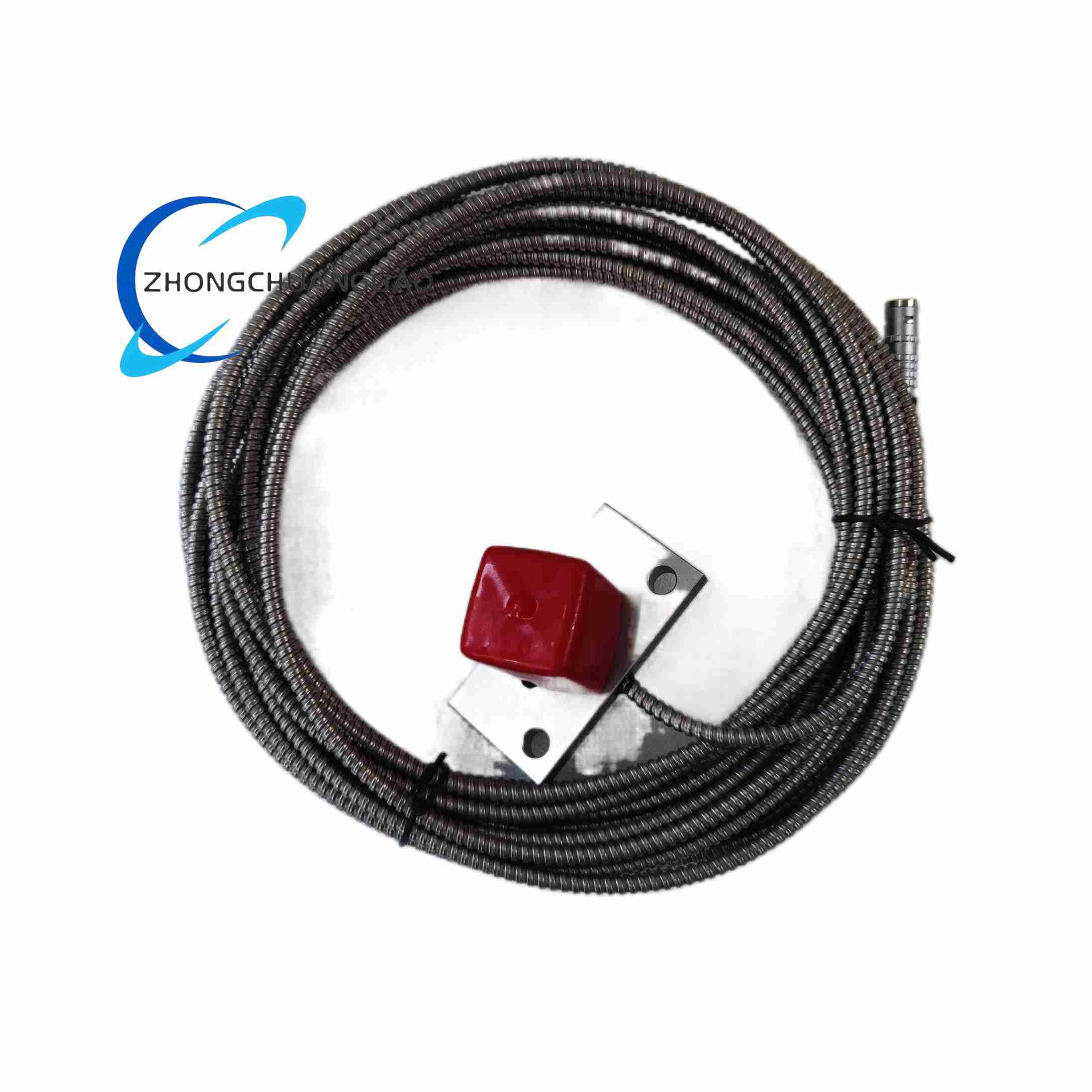

EPRO PR6426010-000

4.3 Core Technical Specifications

• Sensing Head Diameter: 32 mm
• Standard Probe Length: Customizable, base model 010 series standard length
• Static Linear Measuring Range: ±4.0 mm (twice the range of 16mm PR6424/PR6425 probes)
• Standard Sensitivity: 2 V/mm, linearity error ≤ ±1.5% FS
• Minimum Measured Metal Shaft Diameter: ≥200 mm
• Long-Term Probe Head Operating Temperature: -35°C ~ +175°C
• Instantaneous Temperature Shock Resistance: 200°C (<4 hours)
• Probe Head Pressure Resistance: 6500 hPa
• Standard Cable Temperature Resistance: 200°C continuous operation
• Target Calibration Material: 42CrMo4 ferromagnetic alloy steel

4.4 Function Features

1. 32mm oversized coil sensing head, wider ±4mm linear measuring range, suitable for large shafts with high displacement swing amplitude
2. Strong anti-interference magnetic field design, stable measurement data for large-area metal rotating target surfaces
3. Compatible with CON021 series pre-converters, supporting standard negative DC power supply and linear analog voltage output
4. Stainless steel high-temperature probe sleeve, PTFE high-temperature resistant signal cable, industrial anti-vibration structure

4.5 Working Principle, Material Composition, Application Scenarios, Installation & Precautions

1. Eddy current induction working principle identical to PR6424/PR6425 series probes
2. Main application: Ultra-large steam turbine generator rotors, large mine centrifugal fans, heavy metallurgical rolling mill main drive shaft radial vibration and axial displacement monitoring
3. Special installation requirement: Must ensure the measured metal shaft diameter is no less than 200mm; small-diameter shafts will cause severe measurement signal distortion
