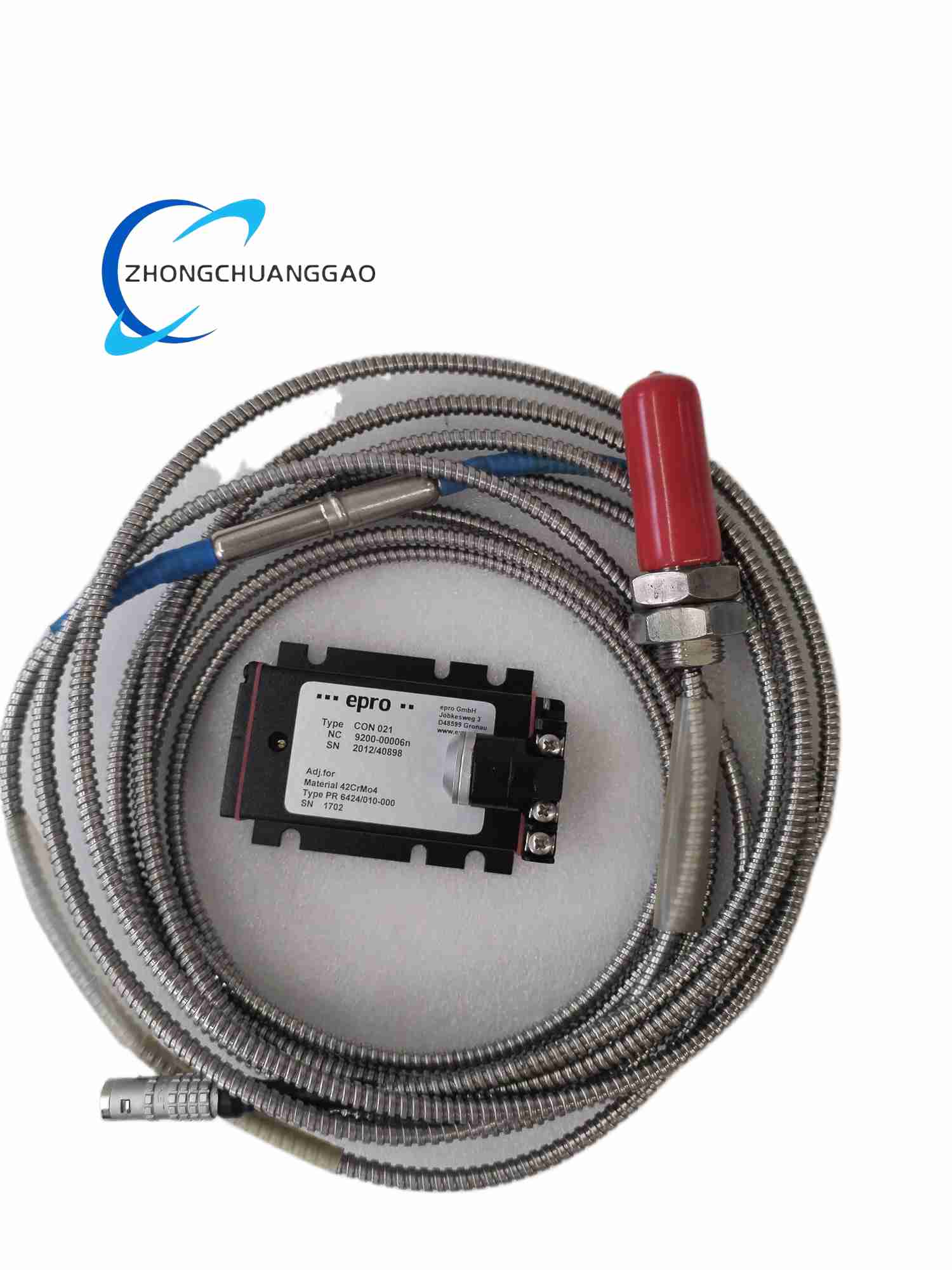

EPRO PR6424 010-000+CON021

Technical & Performance Specifications

1. Probe Core Parameters

• Linear measuring range: ±2mm standard universal measuring range
• Probe body length: ultra-short structure without extended thread sleeve
• Sensing head diameter: 10mm standard size
• Factory standard integrated shielded coaxial cable length: 5m
• System sensitivity matched with CON021: 8V/mm
• Total system linearity error: ≤±1.5% full scale
• Frequency response bandwidth: DC ~ 10kHz
• Probe long-term operating temperature: -40°C ~ +120°C
• Probe body protection grade: IP65
• Standard measuring target material: 42CrMo4 ferromagnetic alloy steel; minimum effective measured shaft diameter: 25mm

2. CON021 Signal Conditioner Parameters

   All electrical performance, environmental adaptability and installation parameters of the matched CON021 signal conditioner are identical to the CON021 parameter specifications recorded under the model PR6424 010-110+CON021.

Material Composition & Structural Features

1. PR6424 010-000 Probe

• Internal sensing coil: high-purity copper enameled wire dense winding, fully sealed and fixed with high-temperature two-component epoxy resin
• Probe outer housing: seamless 304 stainless steel tube, CNC precision machining external M10×1 mounting thread, ultra-short overall structure without rear extension sleeve
• Connecting cable: double-layer overall shielded coaxial cable; inner insulating layer adopts FEP fluoroplastic, middle layer is braided copper shielding mesh, outer protective layer is high-temperature resistant PVC sheath
• Cable end connector: gold-plated self-locking LEMO aviation plug, built-in anti-vibration locking buckle structure

2. CON021 Signal Conditioner

   The material composition and internal structural features of the conditioner are completely consistent with the CON021 structural description under the model PR6424 010-110+CON021.

Working Principle

Core Functional Features

1. Standard 10mm sensing head and M10×1 mounting thread, compatible with the reserved threaded holes of most medium and large steam turbines, compressors and blowers
2. ±2mm universal linear measuring range, covering most conventional vibration and axial displacement monitoring demands of industrial rotating machinery
3. Ultra-short probe body design without rear extension sleeve, specially suitable for bearing housings with extremely shallow internal installation depth
4. Non-contact measuring method, no mechanical contact friction between probe tip and rotating metal shaft, long service cycle
5. Measuring signal will not be interfered by lubricating oil, water vapor, dust and other mixed media inside the bearing box
6. The probe and supporting CON021 conditioner complete factory unified calibration, ensuring the overall linear measurement accuracy of the system
7. CON021 has built-in cable fault self-diagnosis, which can output fixed fault voltage signals to the upper monitoring equipment when the probe wire breaks or short-circuits
8. Standard linear negative voltage analog output signal, compatible with industrial DCS control systems, PLC, vibration protection instruments and all kinds of data acquisition modules

Application Scenarios

1. Medium and large steam turbine generator set shallow bearing box rotor radial vibration and axial thrust displacement monitoring
2. Heavy-duty centrifugal compressors, large industrial blowers and fans with shallow bearing housings rotor vibration protection measurement
3. Petrochemical plant large high-speed process pump and screw compressor shallow bearing rotor displacement online monitoring
4. Large hydraulic turbine generator unit rotating machinery fault early warning diagnosis system
5. Medium-sized gas turbine main rotor and auxiliary shaft vibration real-time monitoring

Installation Requirements

1. Probe Installation Specifications

   All probe installation operation specifications are consistent with the probe installation rules recorded under PR6424 010-110+CON021. Before locking the two anti-loose nuts, adjust the initial gap between the probe sensing head and the metal rotating shaft to the midpoint of the ±2mm linear measuring range.

2. CON021 Conditioner Installation Specifications

   All DIN rail installation, power supply wiring, analog signal wiring and shielding grounding specifications of the signal conditioner are completely consistent with the conditioner installation requirements under PR6424 010-110+CON021.
