Description
Technical Specifications
- Number of Channels: 8 single-ended analog input channels
- Supported Signal Types: J, K, T, E, R, S, B, N-type thermocouples
- Conversion Resolution: 16-bit ADC
- Built-in Function: Onboard cold junction compensation (CJC)
- Electrical Isolation: 1500 Vrms isolation between field circuit and system bus
- Operating Temperature: -40 °C ~ +70 °C
- Storage Temperature: -40 °C ~ +85 °C
- Humidity Range: 5% ~ 95% relative humidity, non-condensing
- Protection Class: IP20 (only for cabinet installation)
- Power Supply: Powered by DeltaV I/O carrier backplane
- Shock Resistance: 10 g half-sine wave, duration 11 ms
- Dimension: 107 mm × 41 mm × 105 mm
- Weight: 0.37 kg
- Certification: CE certified
Functional Features
- Supports multiple standard thermocouple types, configurable via DeltaV control software
- Continuously monitors open-circuit fault of thermocouple wiring
- Provides real-time diagnostic information to DCS system
- Modular hot-swappable design
- Conformal coated circuit board, suitable for ISA-S71.04 Class G3 industrial environment
- Keyed mechanical structure to prevent mismatched installation
Working Principle
Thermocouples generate millivolt voltage signals corresponding to temperature difference. The module receives low voltage signals, performs signal filtering and amplification. The onboard CJC sensor measures terminal block ambient temperature, calculates reference junction temperature. ADC converts analog signals into digital values. Digital data is uploaded to DeltaV controller through local I/O bus for temperature calculation and process control.
Material Composition
- Outer housing: Flame-retardant reinforced ABS plastic
- Main circuit board: FR-4 printed circuit board with conformal coating
- Internal electronic components: Industrial-grade resistors, capacitors, ADC chips and signal isolation transformers
- Connector: Copper alloy gold-plated contact terminals

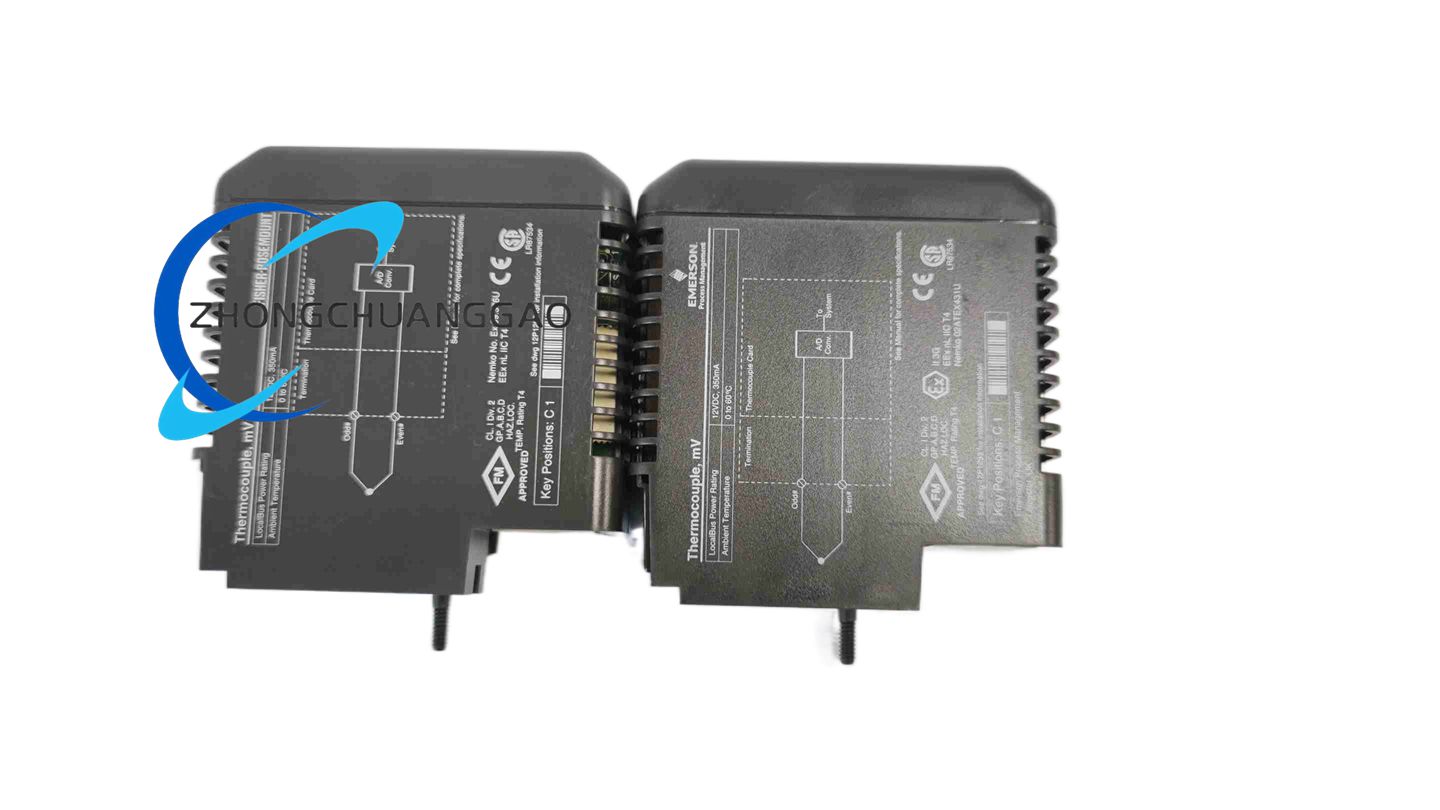

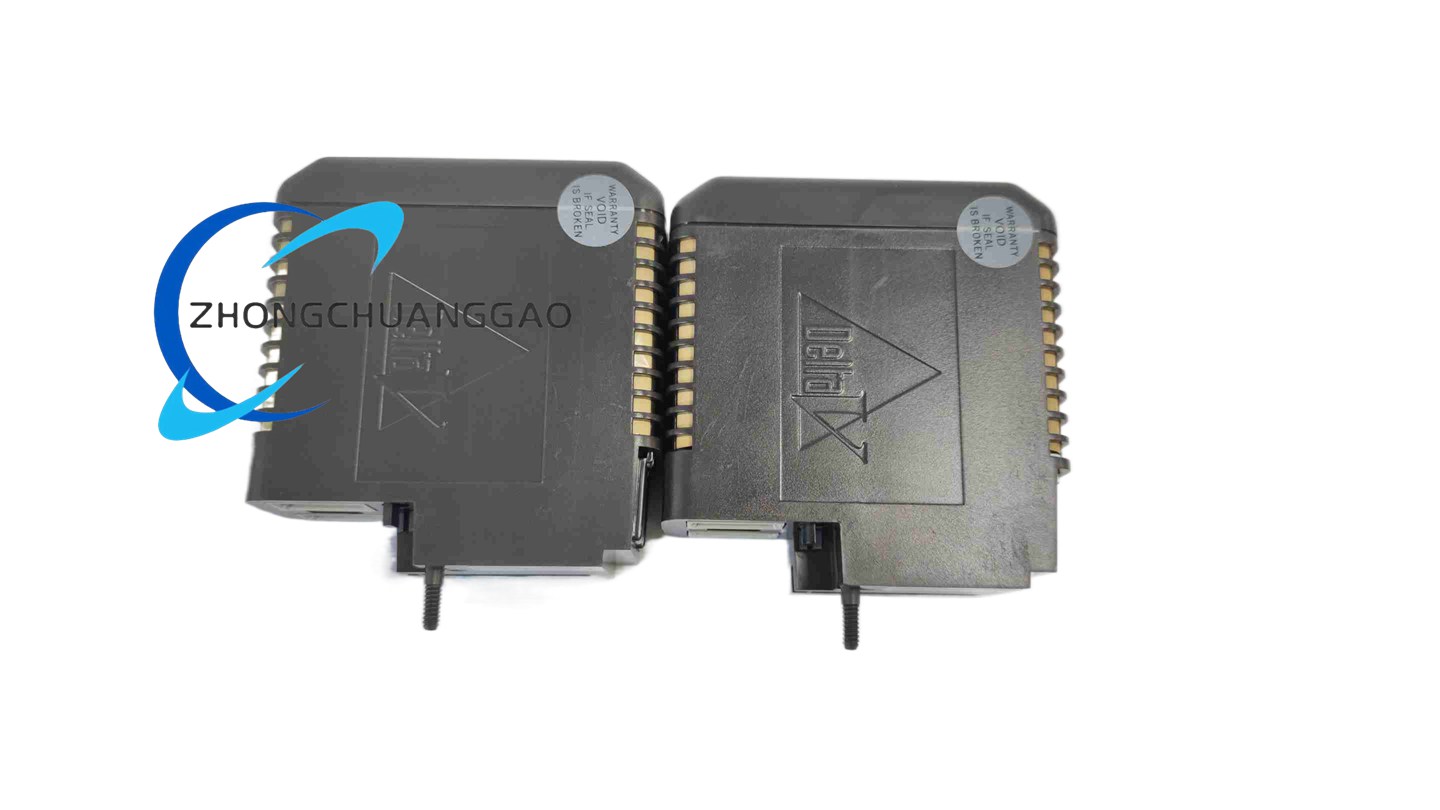

Structural Characteristics
- Standard plug-in modular structure matching DeltaV Classic I/O carrier
- Integrated locking mechanism for stable connection with terminal base

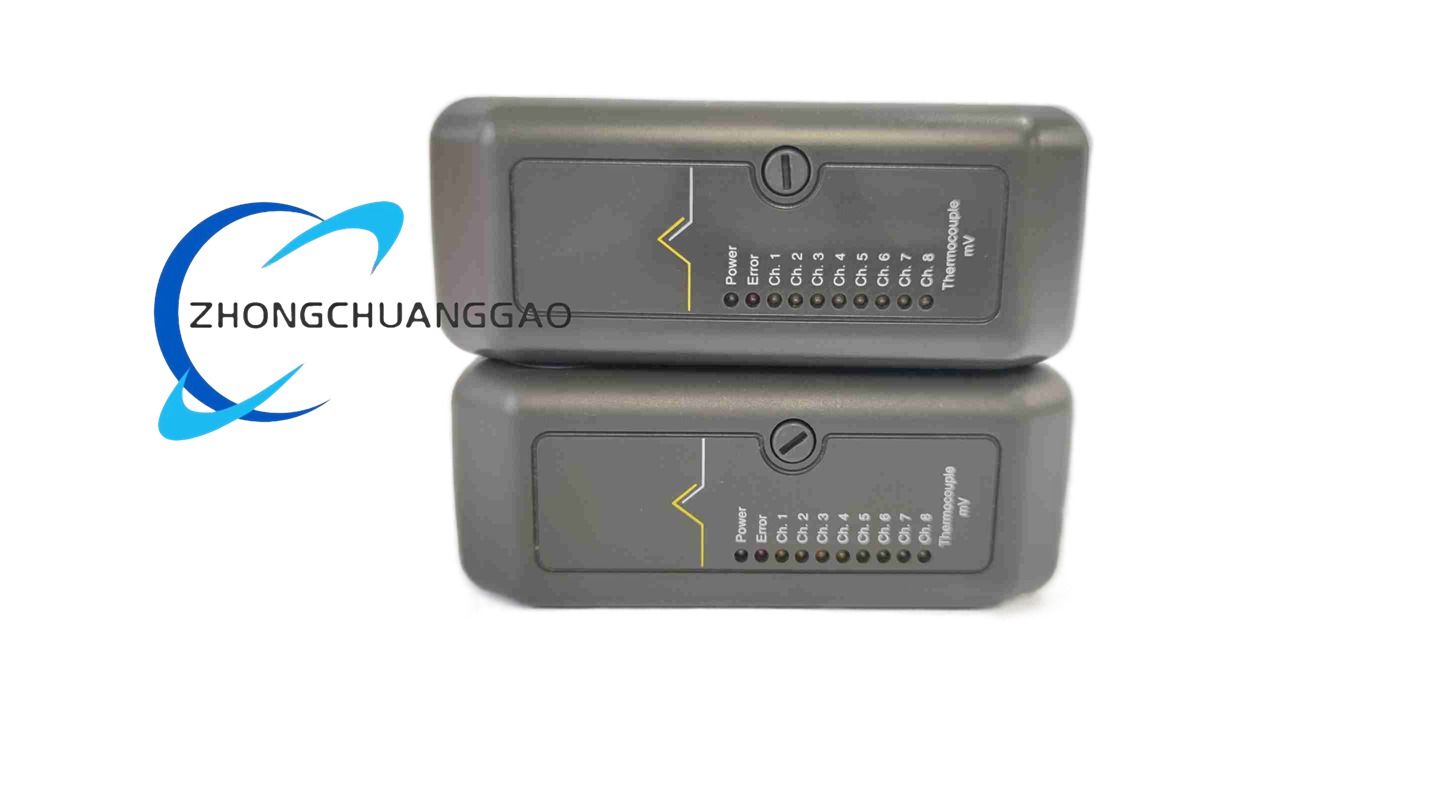

- External status indicator LED for module operation and fault status
- Side coding slot for mechanical anti-misplug protection
Application Scenarios
Temperature monitoring and closed-loop control in chemical industry, petrochemical, power plant, pharmaceutical manufacturing, metallurgy, food processing, pulp and paper industry. It is widely deployed for furnace, reactor, pipeline, heat exchanger temperature measurement.
Installation Requirements
- Install module on DeltaV Classic I/O carrier mounted on standard DIN rail inside control cabinet
- Maintain sufficient ventilation space around modules to avoid heat accumulation
- Match with dedicated CJC terminal block for thermocouple wiring
- Complete ESD protection before touching module; wear anti-static wrist strap
- Tighten locking screws after plugging the module into terminal base
- Separate thermocouple signal cables from high-power AC cables to reduce electromagnetic interference
Usage Notes
- Do not operate outside the specified temperature and humidity range
- Use shielded thermocouple compensation cables; terminate cable shield at single grounding point
- Avoid mechanical impact and vibration during operation
- Cut off related field circuit before module replacement
- Regularly check terminal screw torque to prevent loose wiring
- Do not disassemble module housing without authorization, which voids product warranty
