Product Short Description

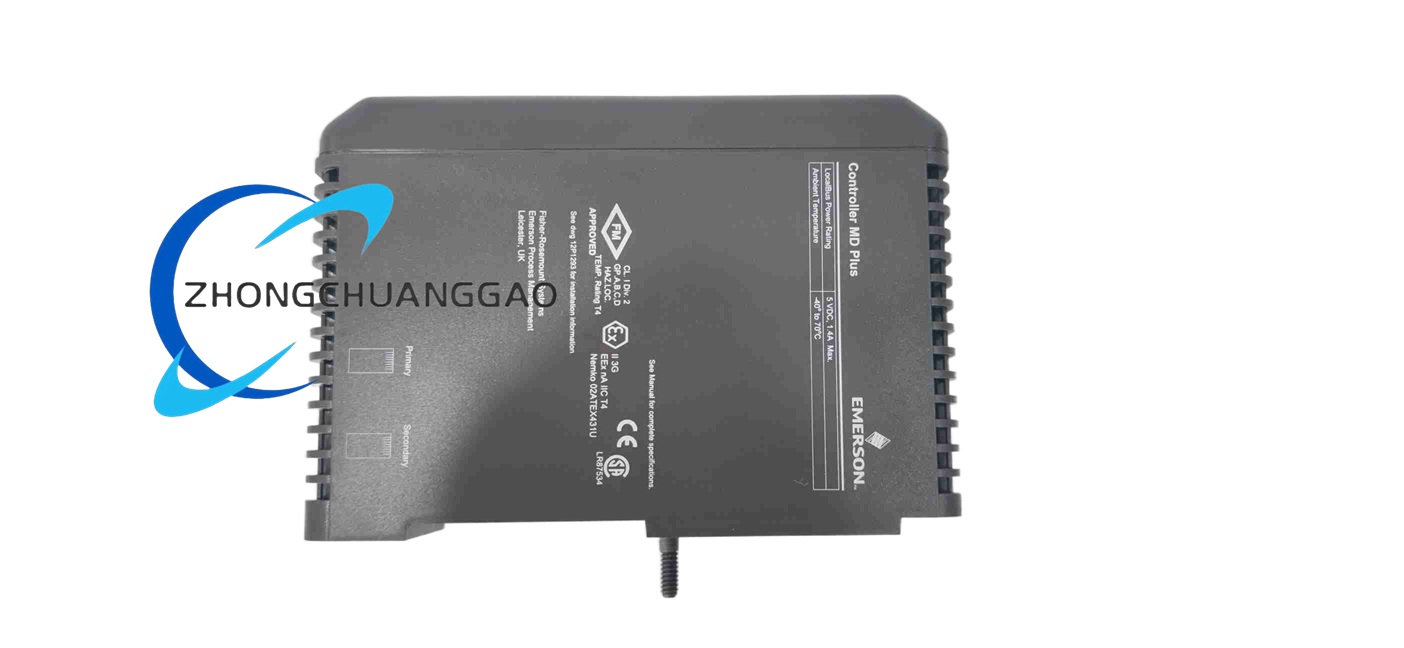

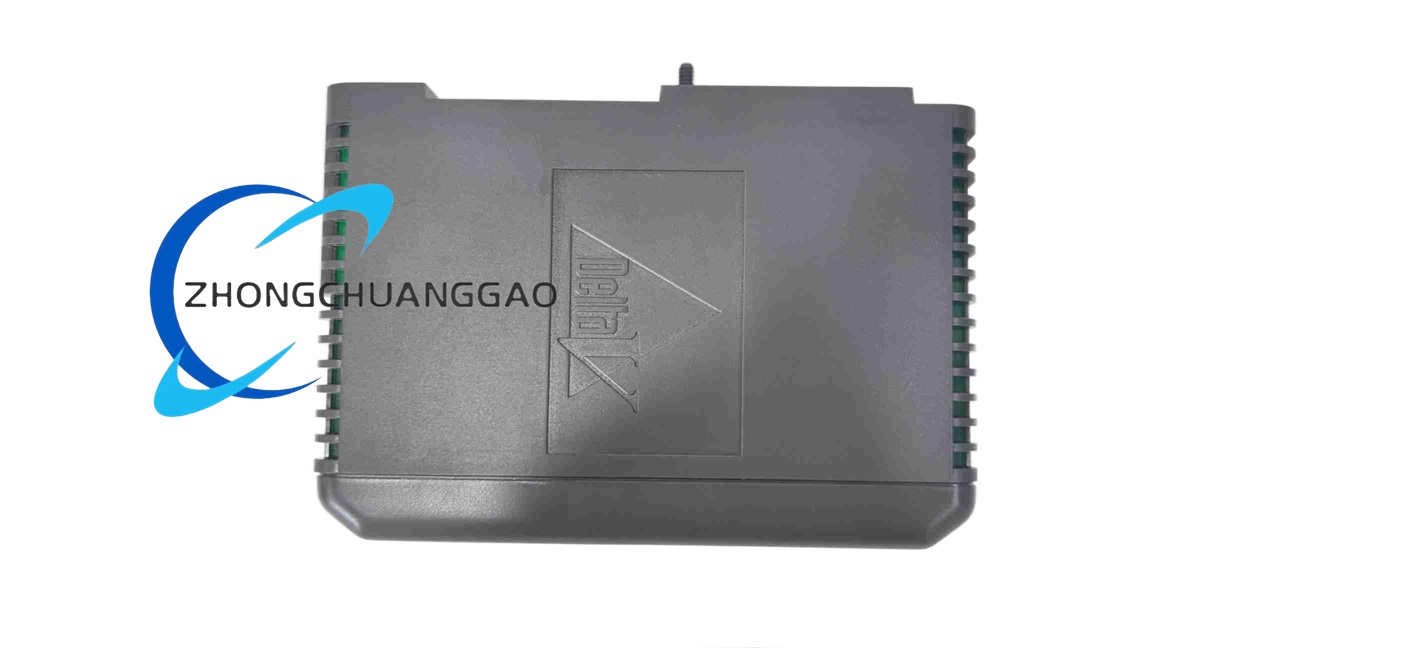

Product Name: MD Plus Controller for DeltaV Distributed Control System
Product Introduction:
VE3006 (KJ2003X1-BB1) is a core modular process controller belonging to Emerson DeltaV DCS platform. It executes continuous control logic, sequence control and field I/O data processing, and supports system redundancy configuration to meet high-reliability industrial process control requirements.
Description
- Power Supply: Powered via DeltaV carrier backplane
- Typical Power Dissipation: 5.0 W; Maximum Power Dissipation:7.0 W
- User Memory: 48 MB
- Operating Temperature: -40°C ~ +70°C
- Storage Temperature: -40°C ~ +85°C
- Communication Bus: DeltaV LocalBus
- Fuse Protection: 3.0 A non-replaceable internal fuse
- Weight: 0.36 kg
Function Features:
Supports redundant controller deployment; executes PID, cascade, ratio and batch control algorithms; built-in self-diagnosis function; supports hot swap under permitted system configuration; compatible with DeltaV V7.4.2 and above software versions.
Application Scenarios:
Chemical industry, oil & gas, power generation, pharmaceutical, pulp and paper, water treatment and other continuous process industries.
Material Composition:
Metal front panel, printed circuit board with industrial-grade semiconductors, plastic housing, gold-plated backplane connectors.
Structure Features:

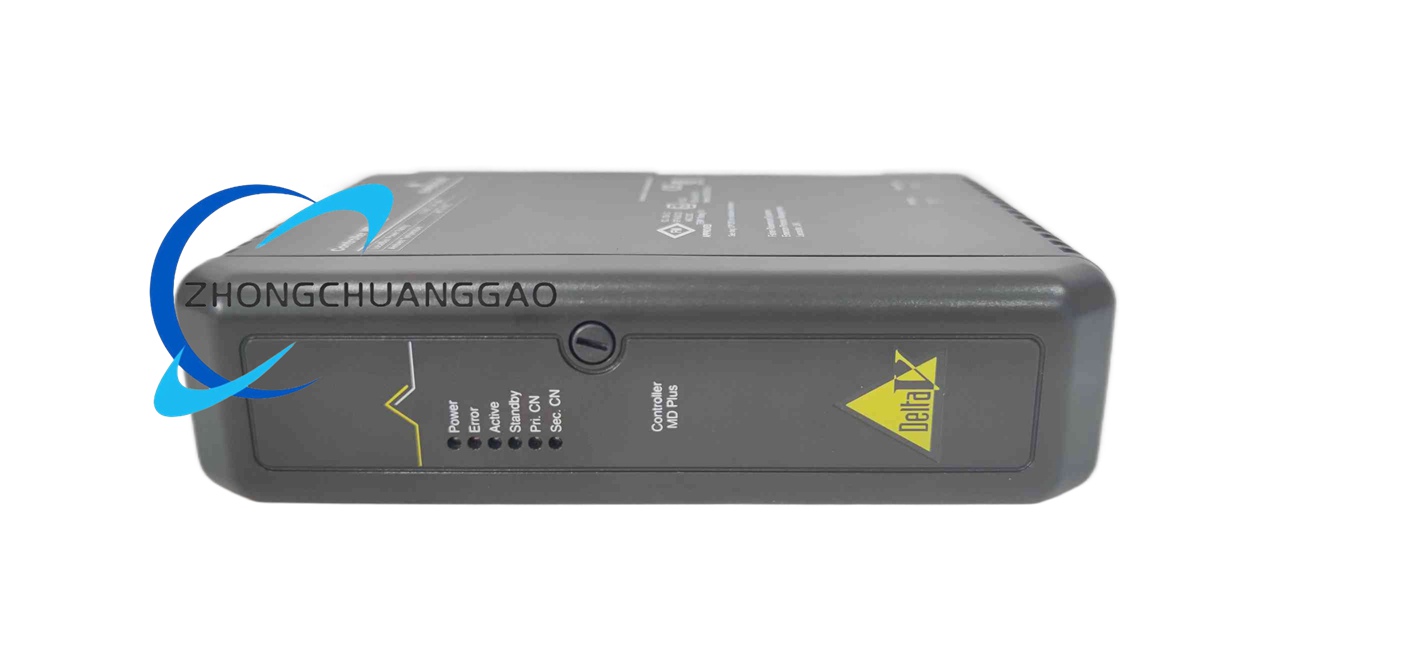

Standard 2-wide module form factor; designed for mounting on the right slot of power/controller carrier; front panel equipped with status indicator LEDs.
Working Principle:
Receives field signal data from I/O modules through LocalBus, runs configured control strategies, calculates output values, and sends control commands to field I/O modules to realize closed-loop process regulation.
Installation Requirements:
Install on dedicated DeltaV power/controller carrier; ensure sufficient cabinet ventilation; maintain specified clearance for heat dissipation; strictly follow DeltaV system grounding specifications.
Usage Notes:
Do not plug/unplug under abnormal power status; use matching original carrier; avoid operation beyond temperature range; implement regular firmware version verification; prevent conductive dust and corrosive gas erosion.
