Product Short Description
Product Brief Introduction
SLS1508 is core safety logic solver for Emerson DeltaV SIS safety shutdown system, certified IEC 61508 SIL3 functional safety level. It executes safety interlock logic, emergency shutdown trip judgment, fault diagnosis and redundant switching for hazardous process industry safety loops, providing <100ms ultra-fast safety action response to prevent process runaway accidents.
Description
Core Technical Specifications
- Safety Integrity Level: IEC 61508 / IEC 61511 SIL3 certified
- Configurable I/O Channels: 16 multi-function configurable channels (DI/DO/AI/HART analog input)
- Communication Bus: Dual redundant SISnet peer-to-peer safety bus (ring network topology support)
- Control Power Supply: 24VDC 1A logic power; field load power maximum 4A total
- Safety Response Latency: ≤100ms from fault sensor input to safety valve trip output
- Channel Isolation: Optical isolation barrier 2500VDC per channel, eliminate ground loop hazardous potential
- Shock Resistance: 10g half-sine wave shock for 11ms; vibration 1mm peak-to-peak 2–13.2Hz
- Operating Temperature: -40°C ~ +70°C control cabinet environment
- Humidity Range: 5%–95% RH non-condensing
- Form Factor: DeltaV SIS carrier rack plug-in safety module, 4-slot width for redundant pairing
Function Features
- Dual redundant internal processing architecture, 1oo2 voting logic to avoid single-point safety failure
- Per-channel continuous fault self-test, automatically report open wire, short circuit, internal circuit degradation
- Independent safety logic execution separated from conventional DCS control system, no control logic interference risk
- Support fire & gas detection system linkage, emergency shutdown valve fast trip interlock logic
- Built-in non-volatile fault event recorder, store 1000+ safety trip historical records with time stamp
- Hot-swappable redundant module pairing, online replacement without safety system shutdown
- AMS Device Manager compatible for remote safety loop diagnostic and module firmware upgrade
Working Principle
Safety sensor signals (fire detectors, overpressure transmitters, emergency stop buttons) input to isolated channels of SLS1508, dual independent internal CPU processors simultaneously collect and calculate safety interlock logic via 1oo2 voting mechanism. Only when both CPU judgment results consistent, safety output relay contact closes to maintain normal production; once inconsistent or fault threshold exceeded, safety output immediately de-energizes to trigger shutdown valve trip. Dual redundant SISnet bus synchronizes logic solver state data between multiple SLS1508 modules in safety cabinet, realizing distributed safety interlock coordination across whole plant process units. Continuous background self-test circuit detects internal component degradation without interrupting safety function.
Material Composition

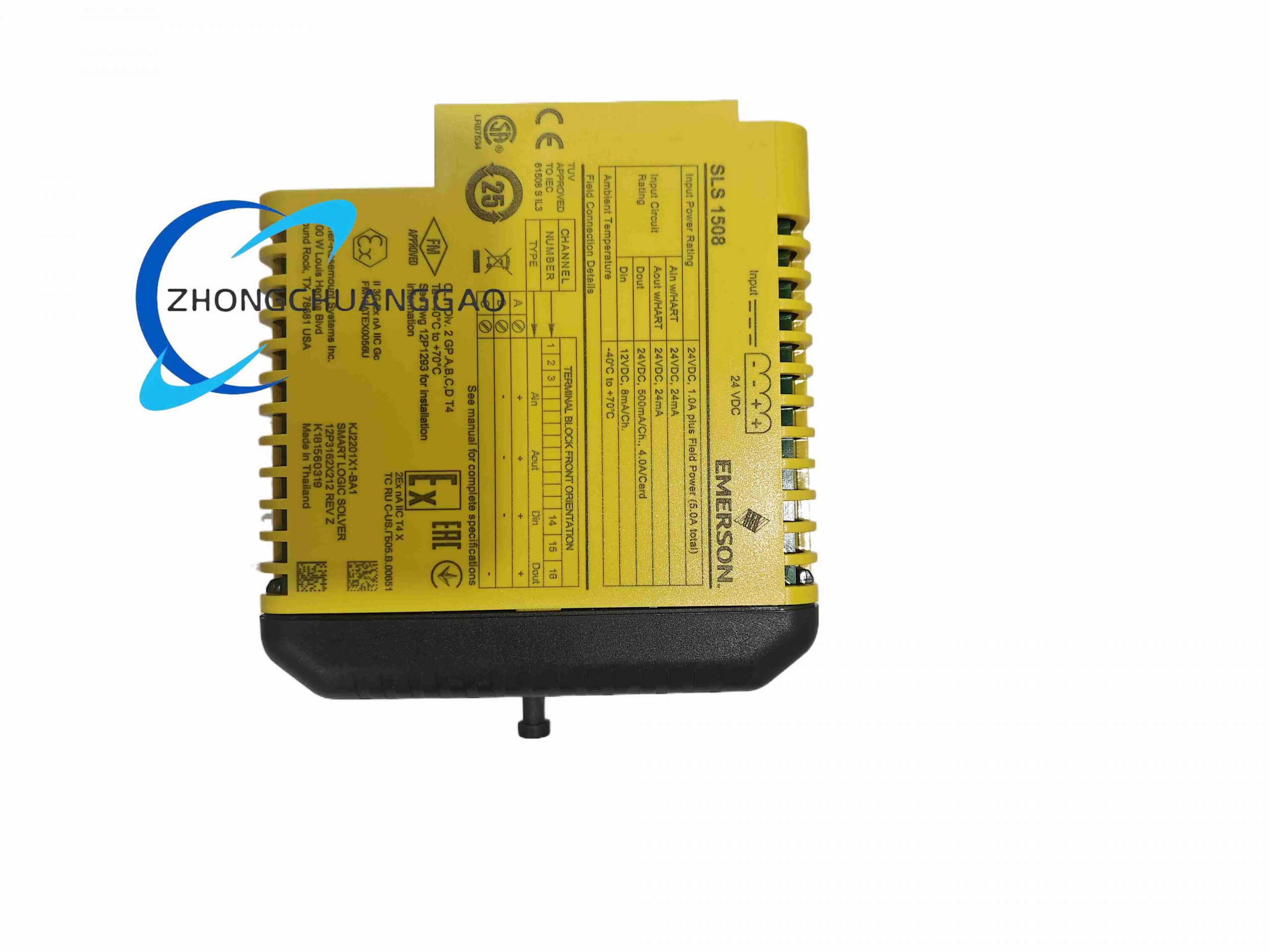

- Outer Housing: Bright yellow UL94-V0 flame retardant safety-grade modified PA plastic housing (safety color identification)
- Safety PCB: Double-redundant dual-core circuit board with full epoxy conformal coating for harsh industrial environments
- Isolation Devices: High-grade safety certified optocoupler isolation barriers per IEC 61508
- Safety Relay Components: Gold contact low-failure safety-rated electromechanical relays
- Heat Dissipation: Integrated aluminum heat sink strip on power stage area
- Terminal Connectors: Anti-loosening gold-plated screw terminals for safety loop wiring
Structural Characteristics
- Standard DeltaV SIS carrier rack plug-in module, installs on odd-numbered carrier slots (1/3/5/7)

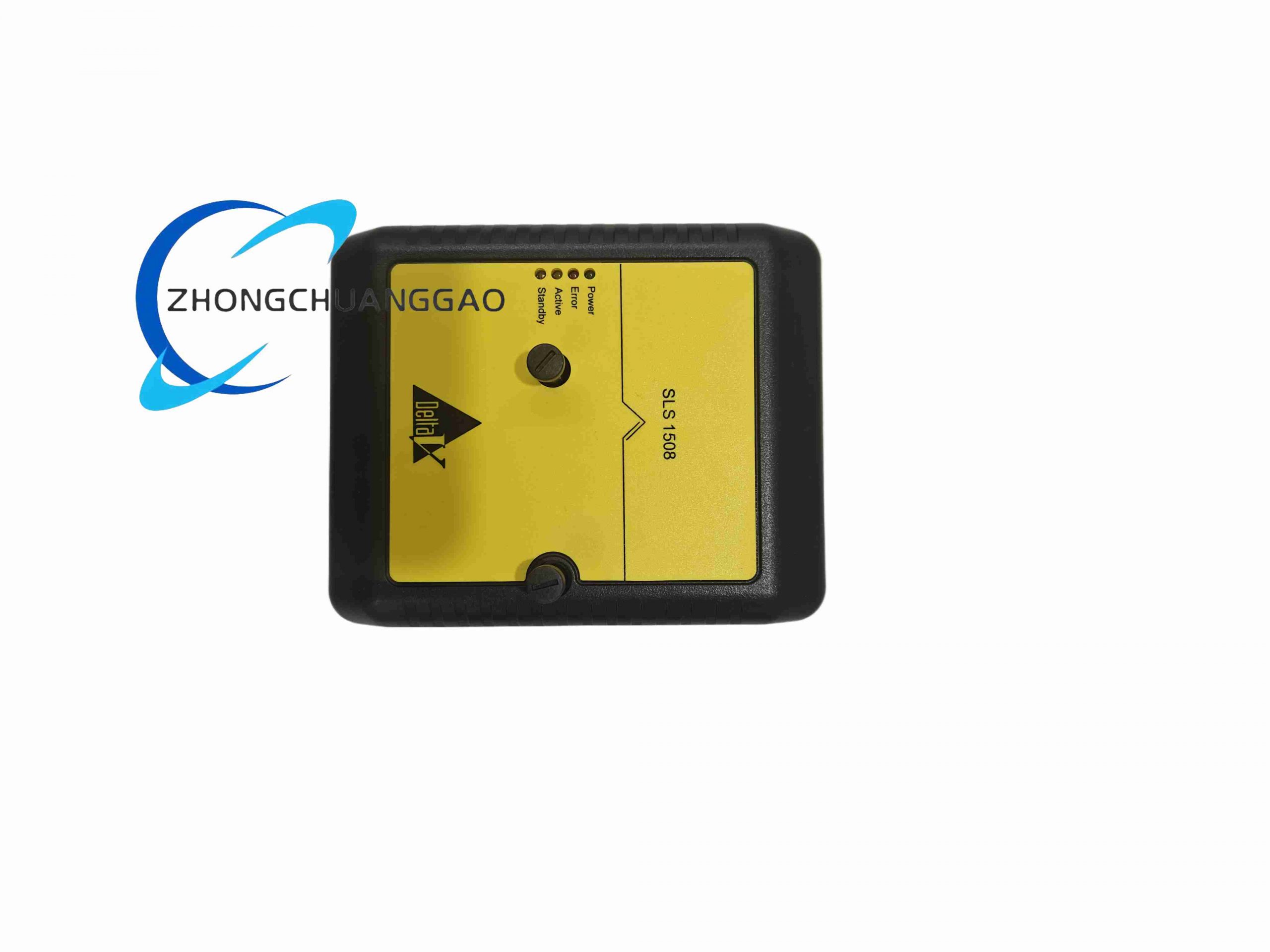

- Front panel safety status LED array: power, dual CPU running, SISnet A/B bus, safety trip fault indicator
- Separate front terminal blocks for safety field I/O wiring and backplane SISnet bus connection

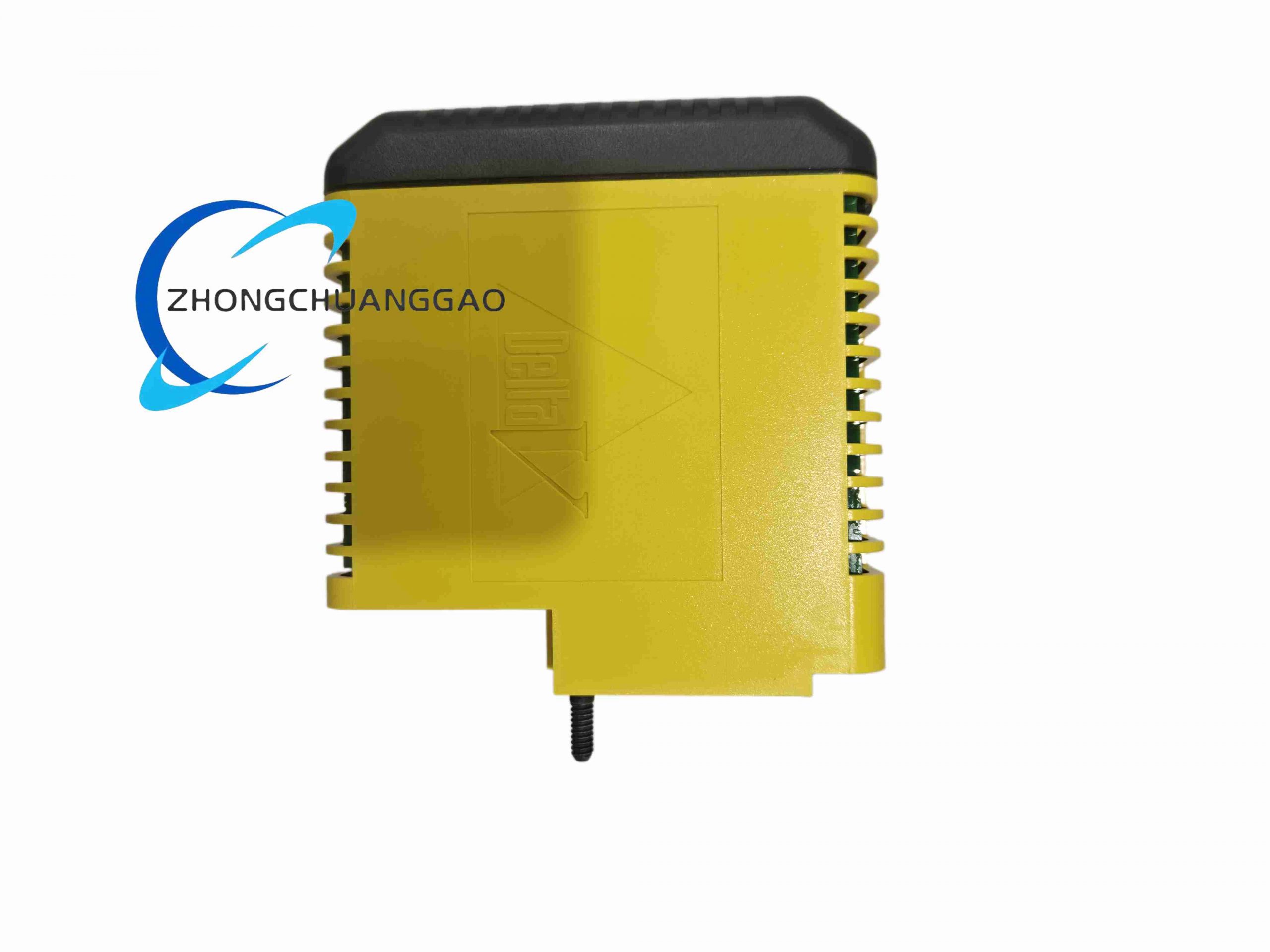

- Side ventilation slotted housing for passive heat dissipation without auxiliary fan
- Lockable module buckle to prevent accidental disconnection during plant operation
Installation Requirements
- Install exclusively in dedicated DeltaV SIS safety cabinet, separate from conventional DCS control cabinets
- Safety loop wiring must use certified IS shielded cable for hazardous zone process equipment
- Maintain ≥50mm spacing between SLS1508 modules for heat dissipation to avoid over-temperature safety degradation
- Redundant SLS1508 pairing must occupy two adjacent 4-slot spaces on carrier rack
- Cabinet ventilation must ensure internal temperature never exceeds 60°C under continuous full load
Application Scenarios
- Offshore oil & gas platform: Wellhead emergency shutdown (ESD) safety interlock system
- Chemical & petrochemical plant: Reactor overpressure runaway protection, burner management BMS
- LNG terminal storage tank fire & gas detection linkage safety trip system
- Thermal power plant boiler turbine overspeed trip safety logic control
- Pharmaceutical high-pressure sterilization autoclave overpressure safety interlock
Operation Precautions
- No user-serviceable internal components; disassembly invalidates SIL3 safety certification
- Do not modify safety logic wiring without complete process safety management (PSM) change approval
- Perform full safety loop diagnostic test quarterly via AMS software to detect hidden channel faults
- Replace internal backup supercapacitor every 10 years per factory maintenance schedule
- Avoid installing within 1m of high-power frequency converters to prevent safety signal EMI distortion
- Cut off both logic power and field safety load power before module replacement operation
