Emerson SE4608T01

Core Technical Specifications

• Channel Count: 8 isolated HART analog input channels
• Input Signal Range: 4–20mA standard process current loop
• HART Version Compatibility: HART 7, supports multi-variable device reading
• Intrinsic Safety Rating: EN 60079-11 IS certified, 375VDC peak isolation voltage
• Channel Impedance: 1kΩ ±10% per input channel
• Measurement Accuracy: ±0.05% full scale analog conversion error
• Update Cycle Time: <1 second per channel HART data refresh
• Power Consumption: Max 1.1W total module power draw
• Operating Temperature: -40°C ~ +70°C cabinet internal
• Wetting Voltage for Field Loop: 24VDC ±10%
• Short Circuit Detection Threshold: <100Ω loop resistance trigger fault alarm

Function Features

1. Per-channel independent intrinsic safety barrier, no cross-channel interference
2. Real-time HART diagnostic: sensor drift, loop resistance abnormal, device communication loss alarm
3. No field calibration required after module replacement, automatic signal matching
4. Supports NAMUR sensor fault detection logic for broken wire identification
5. Hot-pluggable CHARM design, online replacement without interrupting other channel measurement
6. Full compatibility with AMS Device Manager for remote transmitter parameter configuration
7. Configurable signal filtering (100ms–5s adjustable time constant) to suppress field noise

Working Principle

Material Composition

• Outer Shell: UL94-V0 flame retardant modified PA66 plastic
• PCB: High anti-corrosion FR4 board with full epoxy conformal coating for corrosive chemical plant environments
• Isolation Components: Ceramic intrinsic safety barrier chips, high withstand voltage isolation capacitors
• Terminal Contacts: Nickel-plated copper terminals with anti-oxidation coating
• Passive Components: Low-temperature drift precision metal film resistors

Structural Characteristics

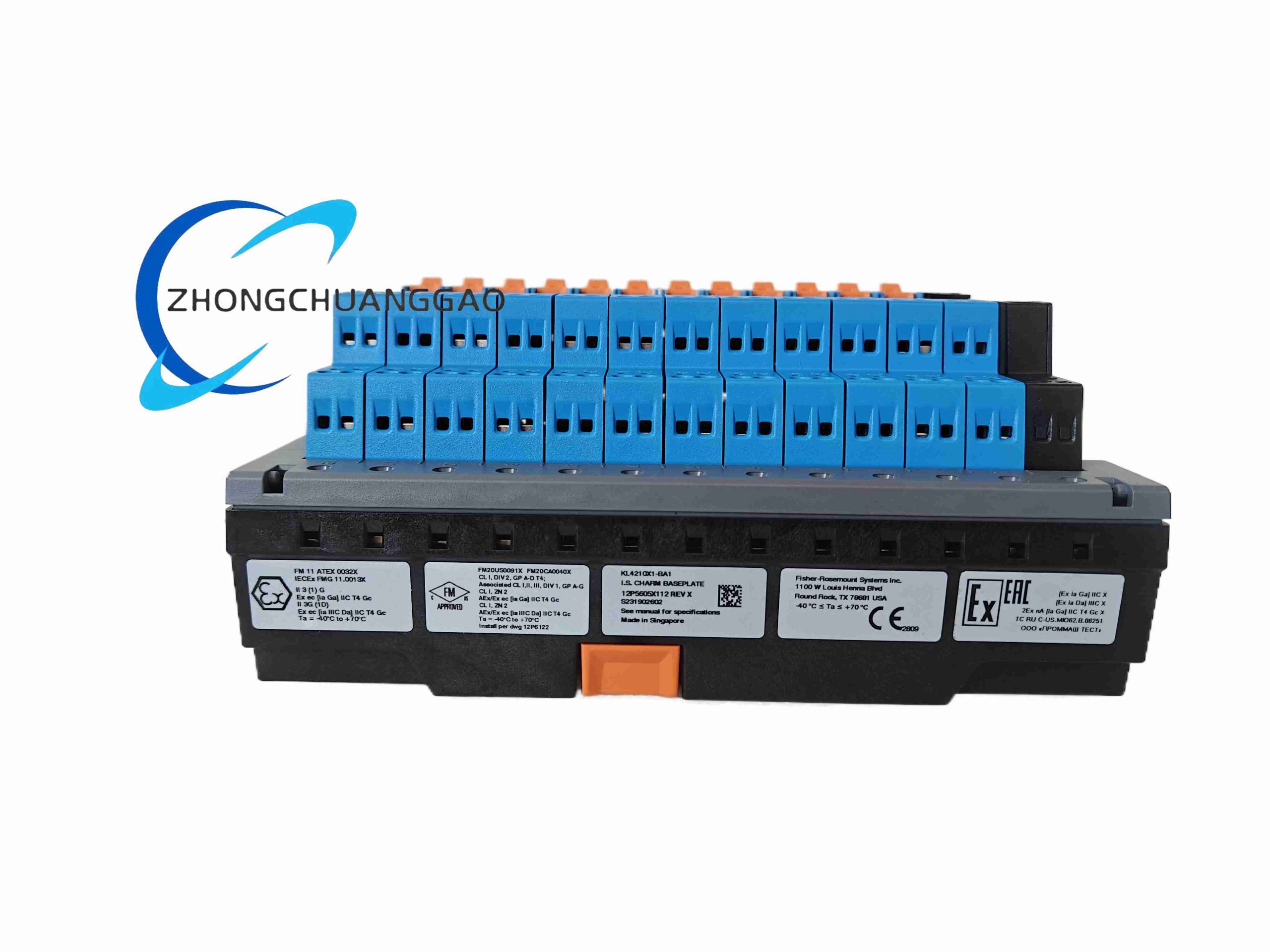

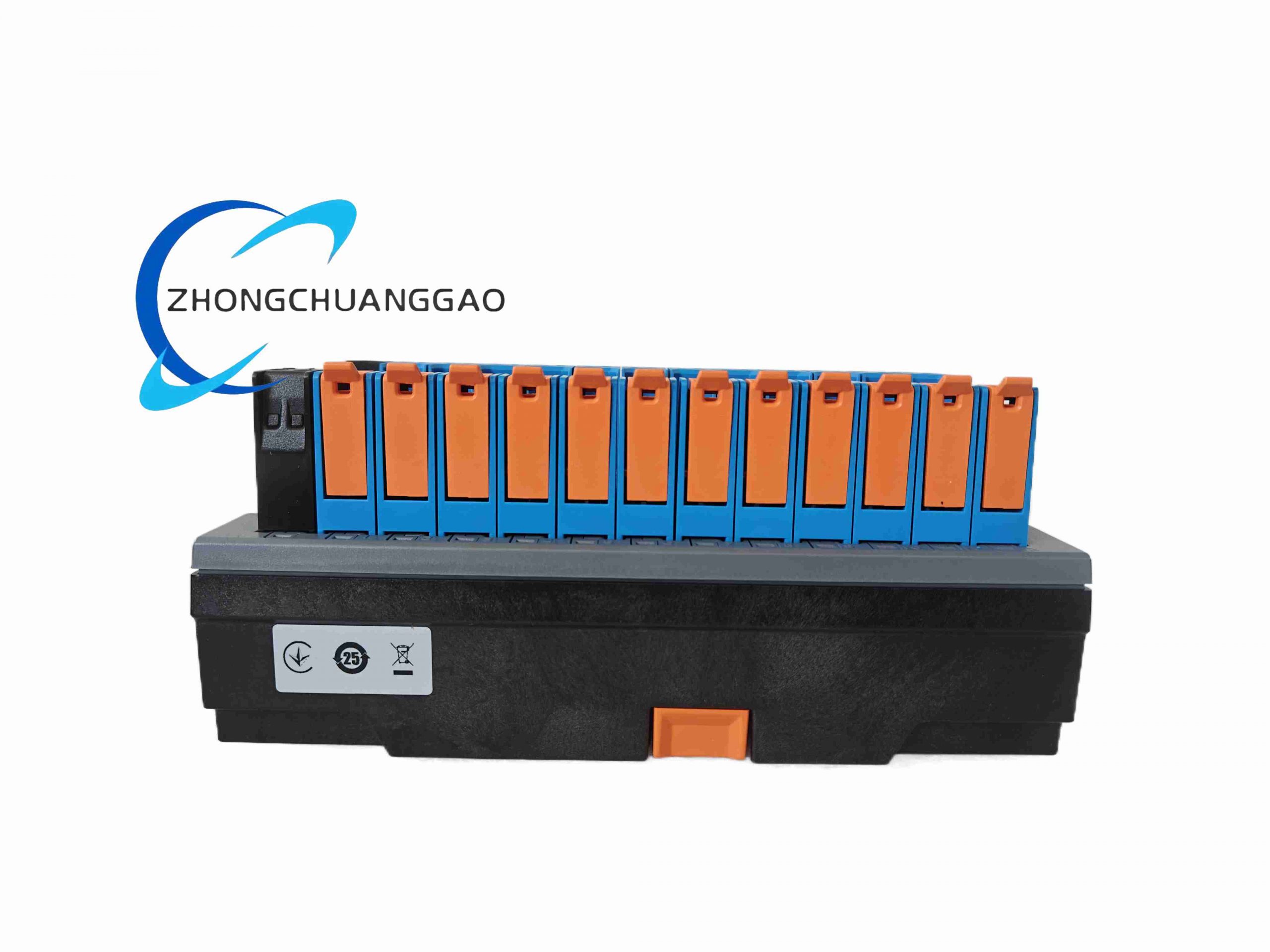

1. Compact rectangular CHARM modular form factor, snap-on mounting on DeltaV CHARM carrier
2. Front terminal strip with color-coded channel marking for fast wiring identification
3. Single bi-color LED per channel: green normal measurement, red fault alarm
4. Integrated spring wire terminals without screw operation for rapid field wiring
5. Built-in small heat sink for ADC power stage passive cooling

Installation Requirements

1. Mount on dedicated DeltaV CHARM carrier DIN rail rack, only install inside Class I Div.2 safe cabinets
2. Field sensor wiring must use IS-certified shielded cable for Zone 0/1 hazardous locations
3. Maintain ≥20mm clearance between CHARM modules for heat dissipation
4. All cable shields single-point grounded at cabinet safety ground bar, no multi-point grounding
5. Maximum field wiring length limited to 1000m for 4–20mA HART loops

Application Scenarios

• Petrochemical refinery: Pressure transmitter, differential flow meter signal collection
• LNG terminal: Low-temperature tank level sensor monitoring
• Fertilizer plant: Ammonia reactor temperature & pressure measurement loops
• Offshore oil platform: Explosion-proof process parameter acquisition
• Power plant flue gas treatment: Continuous emission monitoring sensor input

Operation Precautions

1. Do not modify internal intrinsic safety circuit; any disassembly voids IS certification
2. Avoid connecting non-IS certified field transmitters to module channels in hazardous zones
3. Do not stack multiple heat-generating CHARM modules in tight cabinet spaces without ventilation
4. Perform quarterly loop resistance diagnostic test via DeltaV workstation to prevent hidden wiring corrosion
5. Keep front terminal block sealed to avoid corrosive gas ingress in chemical workshops
