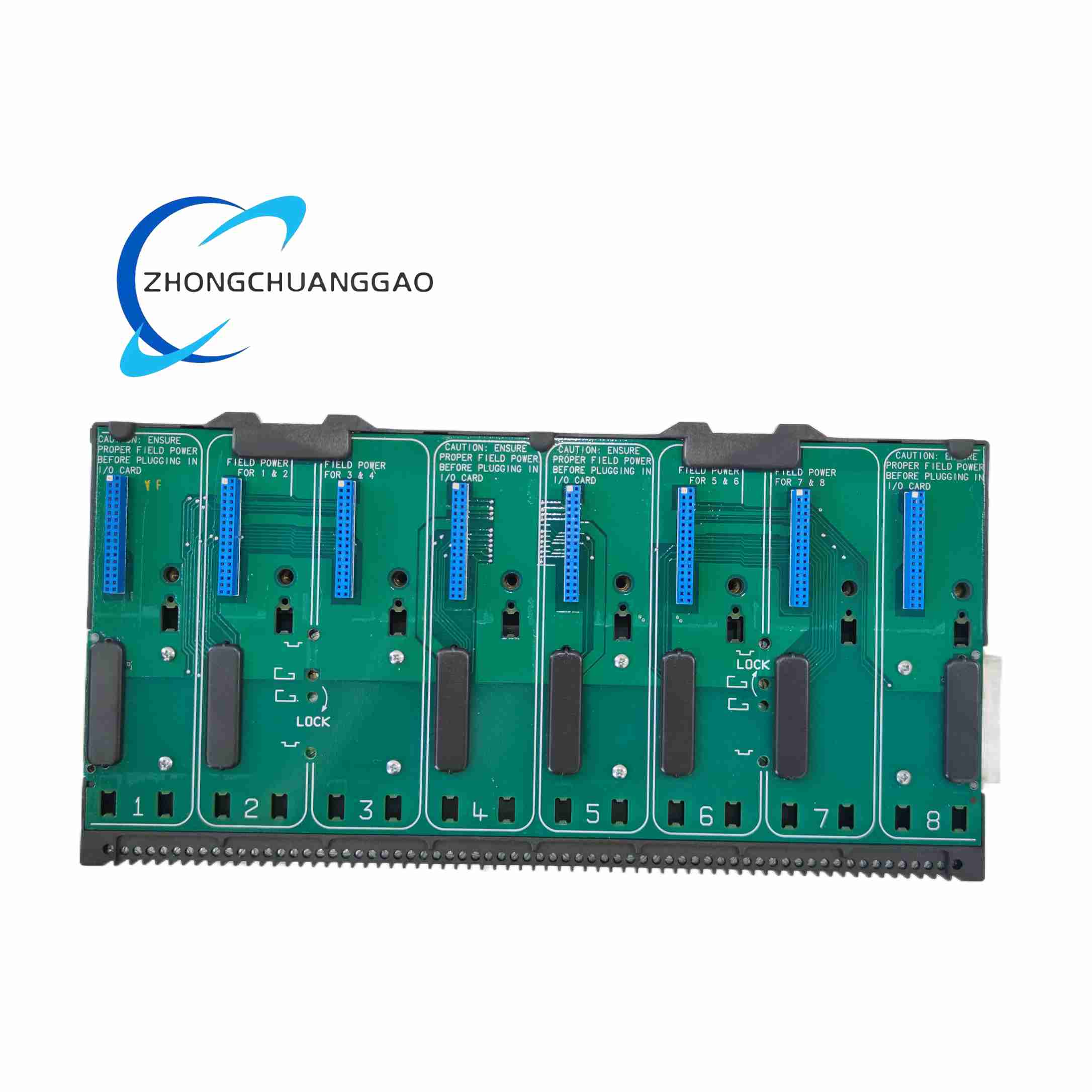

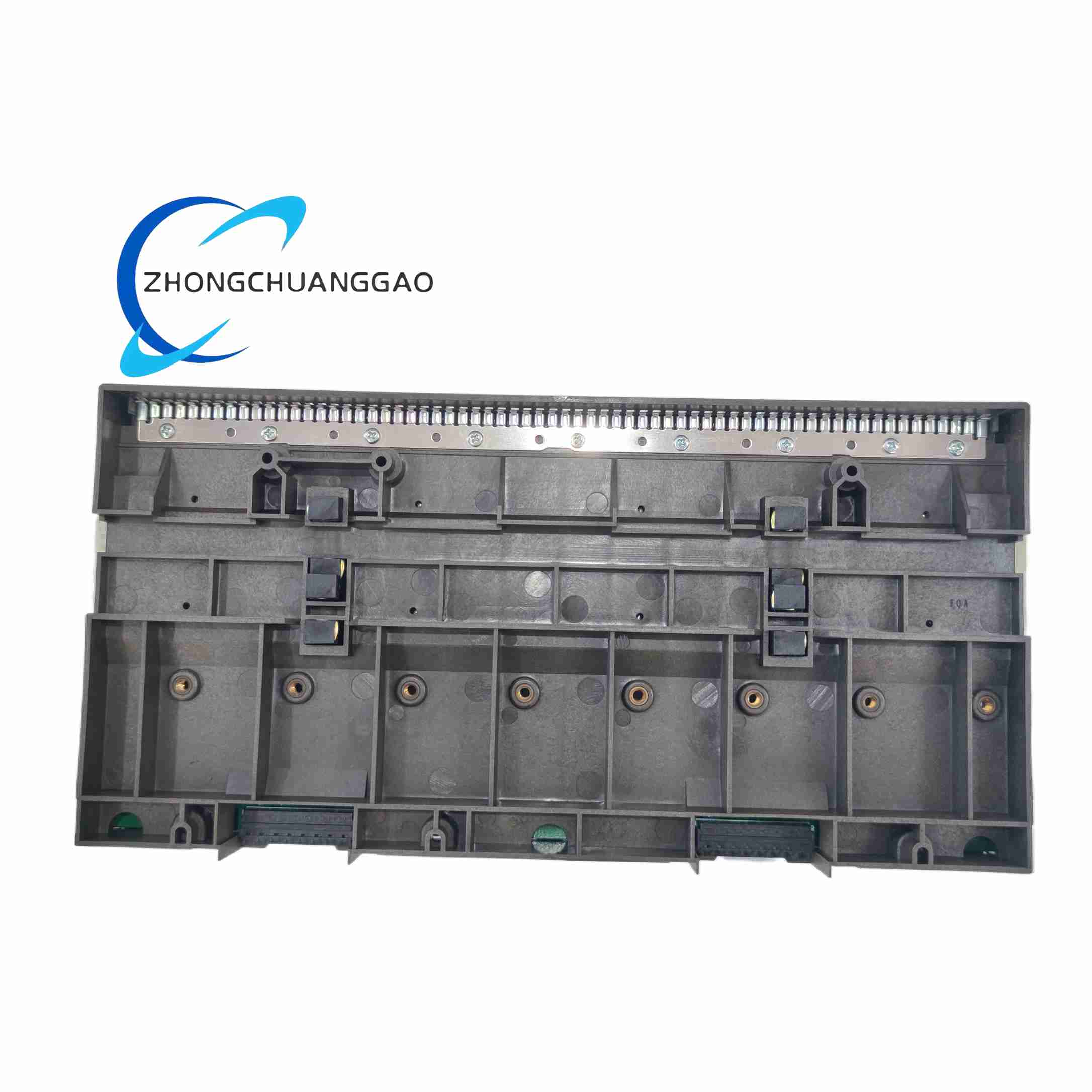

Emerson SE4050E1C0

System compatibility limited exclusively to Emerson DeltaV S-Series DCS controller rack backplane bus hardware and matching CHARM electronic marshalling terminal card assemblies. Logic power supply input accepts standard industrial 24VDC control power with a ±20% allowable voltage fluctuation tolerance range. Maximum full-load operating power consumption of the carrier module is capped at 12W under complete CHARM terminal card slot population. Internal communication bus adopts Emerson proprietary high-speed DeltaV I/O backplane bus architecture to deliver bidirectional millisecond-level real-time data transmission between the carrier module and rack-mounted main process controllers. CHARM terminal expansion capacity supports installation of up to 8 independent CHARM signal terminal card assemblies in the front-side horizontal expansion slots, enabling mixed deployment of analog input, analog output, thermocouple, RTD and digital I/O signal conditioning terminal cards within a single carrier module unit. Each CHARM signal channel incorporates independent galvanic isolation with a 2500VAC one-minute dielectric withstand rating between field wiring circuits and internal DCS backplane bus circuits to eliminate cross-channel signal interference from inconsistent field equipment grounding potentials. Continuous rated operating ambient temperature range spans -20°C to +60°C; off-power storage temperature range extends from -30°C to +70°C for long-term warehouse shelf storage conditions. Environmental compliance certification includes full printed circuit board ISA G3 acrylic conformal coating treatment to resist degradation from industrial acid vapor, sulfur-containing gas, high cabinet humidity and accumulated fine dust particles. Mechanical enclosure protection grade classification reaches IP20, designed solely for fully enclosed industrial control cabinet internal installation, not suitable for direct exposure to open workshop or outdoor environmental conditions. Mounting form factor follows standardized DeltaV S-Series vertical rack slot plug-in modular design specifications compatible with all 8-slot and 16-slot DeltaV control rack backplane assemblies. Single module net physical weight measures 0.22kg without attached CHARM terminal card assemblies. Global industry compliance certification scope includes CE electromagnetic compatibility certification, UL safety certification and FMEDA functional safety certification for SIL2-rated process safety interlock loop deployment scenarios.

Electronic marshalling flexible software signal mapping architecture completely removes the need for labor-intensive hardwired marshalling terminal block assemblies; field measurement signal channels can be reassigned to different DCS control logic points through offline engineering software configuration workflows without physical cable disconnection and re-routing construction work. Native mixed multi-type signal compatibility allows simultaneous installation and operation of CHARM terminal cards supporting 4-20mA HART analog input/output, thermocouple temperature sensing, RTD resistance temperature detection and 24VDC discrete digital input/output signal conditioning within the same SE4050E1C0 carrier module unit. Every individual signal channel is equipped with independent galvanic isolation barriers to fully eliminate cross-channel signal distortion triggered by uneven grounding potential differences between geographically separated field measurement equipment assemblies and central control room rack grounding busbars. Integrated onboard HART communication signal multiplexing circuit transparently extracts superimposed HART digital diagnostic data layered onto standard 4-20mA analog process current signals, transmitting secondary equipment diagnostic metrics including transmitter calibration drift, sensor aging and control valve wear status to the DeltaV AMS Asset Management software platform for predictive maintenance scheduling workflows. Full channel-level real-time fault self-diagnosis logic continuously monitors CHARM terminal card insertion locking status, field cable open-circuit and short-circuit wiring faults, overvoltage field signal input events and internal backplane bus communication error conditions; all fault alarm data is uploaded to the DeltaV central operator station with precise slot and channel number location markers for rapid maintenance fault localization. Full hot-swap plug-and-play support is enabled for both the SE4050E1C0 carrier module main unit and all individual front-mounted CHARM signal terminal card assemblies; component replacement maintenance operations can be executed while the full DeltaV DCS system remains online and fully operational, without triggering process control loop shutdown or temporary loss of critical process monitoring signal data streams. All external field signal input channels integrate hardware-level surge voltage transient suppression and electrostatic discharge protection circuit assemblies; each channel delivers 8kV contact ESD transient voltage suppression performance and a 2kV alternating current surge voltage withstand rating to shield sensitive internal signal conditioning semiconductor components from lightning induction transient voltage spike damage originating from long-distance field measurement cable wiring runs. Complete printed circuit board conformal coating treatment provides long-term barrier protection against high cabinet humidity, industrial corrosive gas vapor accumulation and fine dust particle sedimentation inside process plant central control room cabinet enclosures, extending overall hardware service lifespan under harsh continuous industrial facility operating cycle conditions.

Field process measurement and control signal sources including 4-20mA process transmitters, thermocouple/RTD temperature sensors, tank pressure limit switch feedback contacts and solenoid valve control output wiring are routed to individual CHARM electronic marshalling terminal card assemblies inserted into the front horizontal expansion slots of the SE4050E1C0 carrier module unit. Each CHARM terminal card assembly incorporates dedicated onboard signal filtering, galvanic isolation and analog-to-digital signal conversion circuit hardware components, converting raw unconditioned analog voltage/current or discrete mechanical switch contact electrical signals into standardized digital data frames compatible with the DeltaV proprietary internal rack backplane bus communication protocol. The SE4050E1C0 carrier module’s central communication processor continuously collects digitized multi-channel signal data frames transmitted from all eight populated front-side CHARM terminal card expansion slots via the internal front expansion bus wiring pathways. Aggregated multi-channel digital process signal data streams are transmitted in real-time millisecond-level communication cycles from the carrier module central processor to the DeltaV DCS main process controller hardware unit through the rack rear backplane high-speed I/O bus physical connection interface. Bidirectional communication functionality enables the DeltaV main process controller to transmit analog output control command setpoints and discrete digital valve/solenoid switch output state command data frames back through the rack backplane bus wiring pathways to the SE4050E1C0 carrier module central communication processor hardware unit. The carrier module central communication processor distributes received output control command data frames to the corresponding target CHARM output signal terminal card assemblies installed in the front expansion slot layout; each CHARM output terminal card converts standardized digital bus command data frames back into physical 4-20mA analog current output control signals or 24VDC discrete digital switching output signals to drive field-installed process control valve actuator equipment and solenoid valve assemblies deployed within process production facility operating zones. Dedicated parallel fault diagnostic logic circuitry continuously samples electrical continuity, voltage level and communication link quality parameters for every individual CHARM signal channel assembly and internal backplane bus communication pathway hardware components; detection of abnormal electrical operating conditions including open-circuit wiring faults, short-circuit wiring faults, overvoltage field signal input events and lost CHARM card communication link connection status triggers generation of coded fault identification data frames stored within non-volatile memory chip assemblies integrated onto the carrier module printed circuit board hardware structure. All fault identification data frames containing precise slot and channel number location marker information are transmitted automatically to the DeltaV central operator monitoring workstation software platform to generate visual maintenance alert notification pop-up windows for field instrumentation and control system maintenance engineering staff. Onboard integrated HART multiplexing circuit hardware continuously extracts superimposed HART digital diagnostic data packets layered onto standard 4-20mA analog process current signal waveforms received from field-installed HART-compatible process transmitters and smart control valve positioner equipment assemblies; extracted HART digital diagnostic data packets are bundled alongside primary analog process measurement digital data frames for bidirectional transmission to the DeltaV AMS Asset Management software platform to support equipment calibration tracking, predictive failure diagnostics and scheduled preventive maintenance workflow planning activities for all field process instrumentation hardware assemblies deployed within industrial process production facility operating zones.
