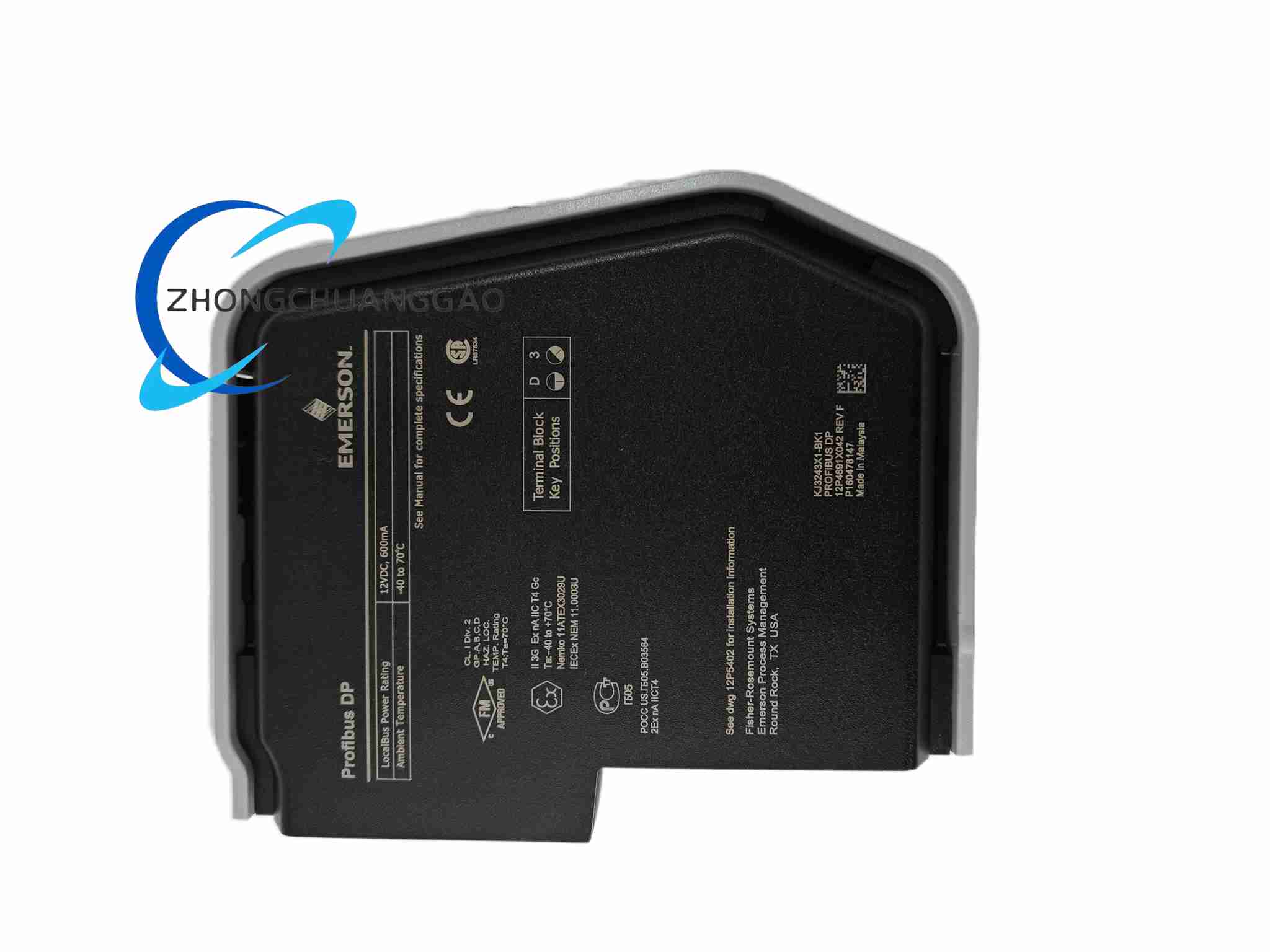

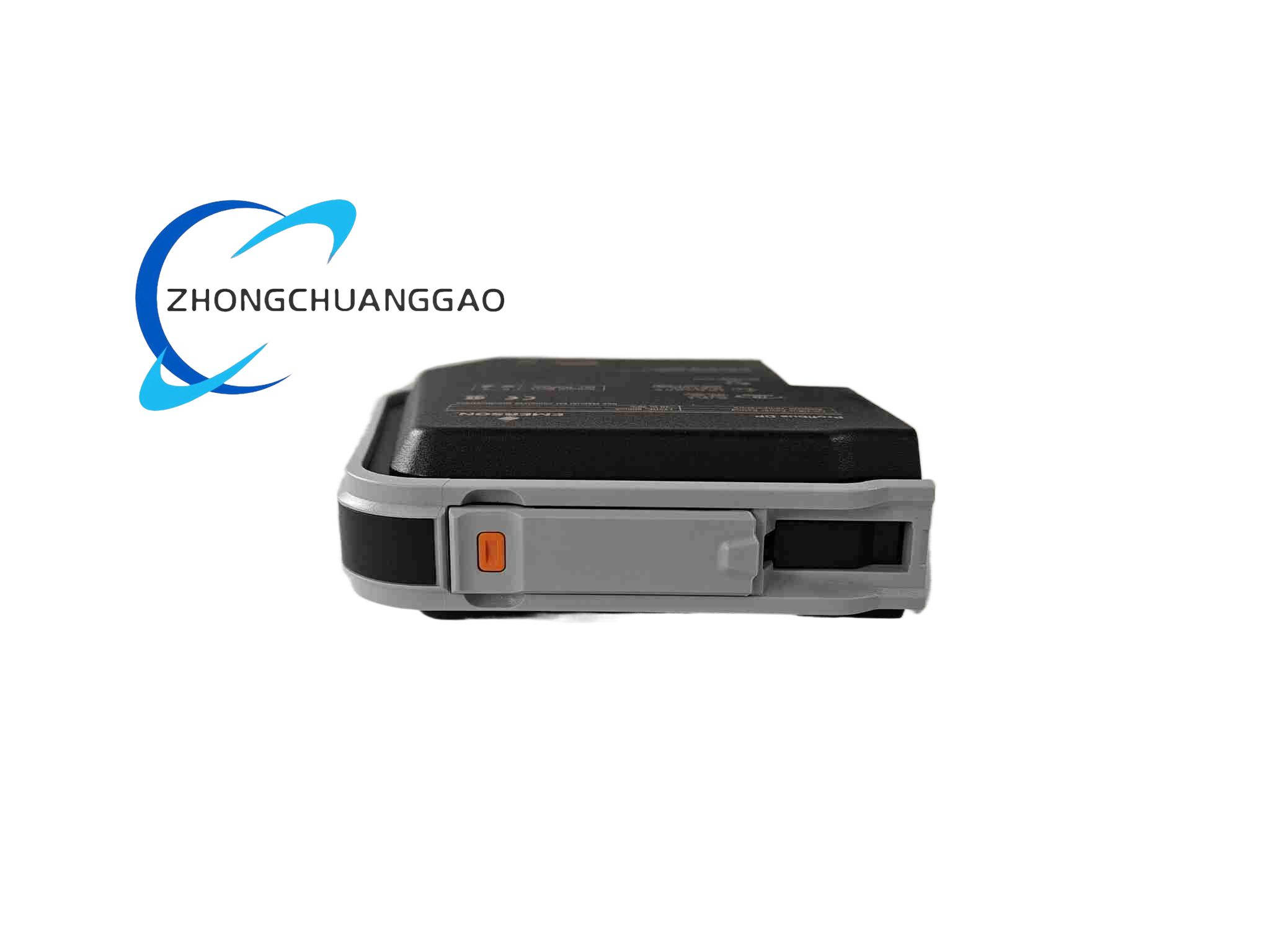

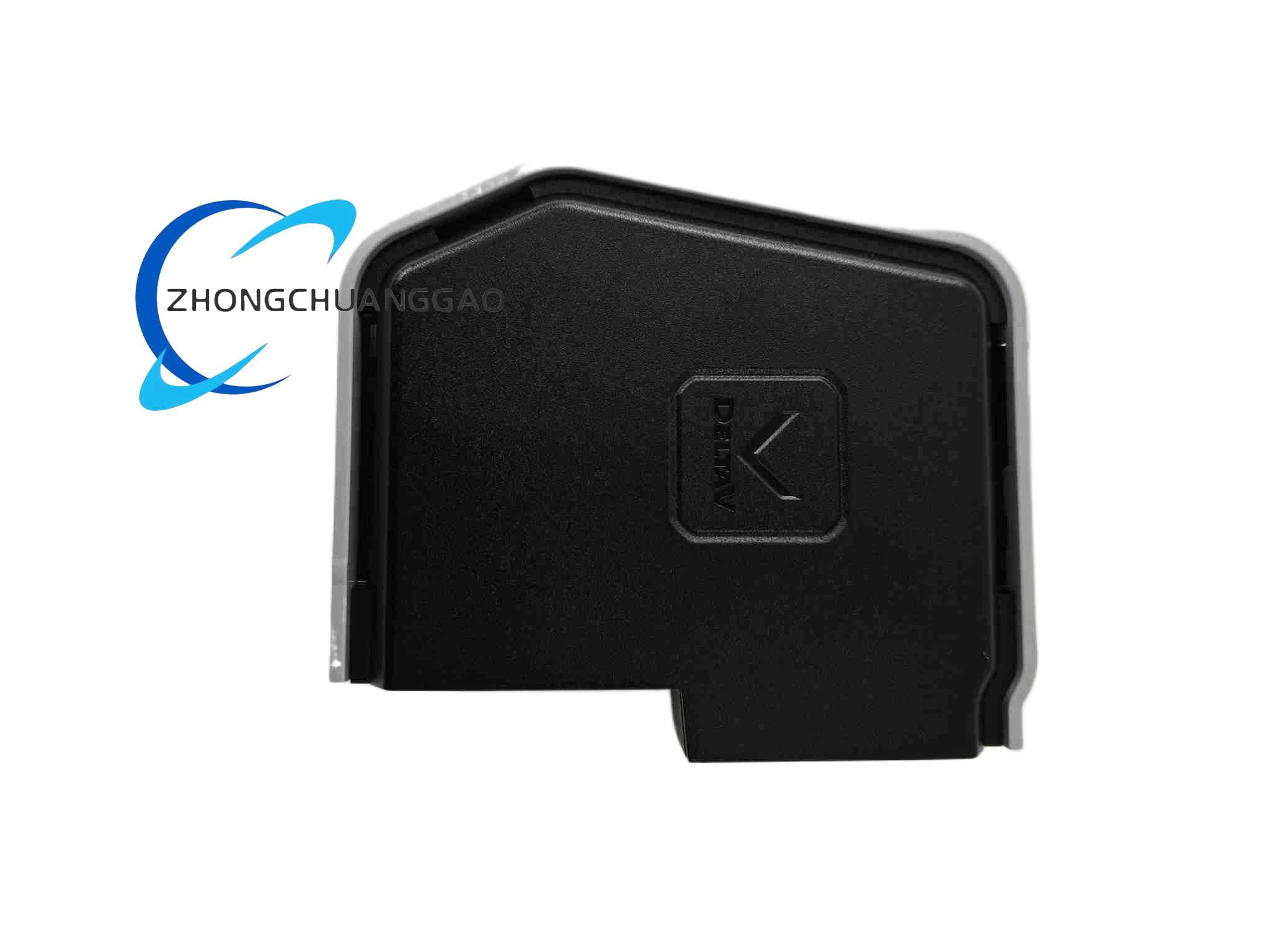

Emerson SE4022 KJ3243X1-BK1

Dual identification coding system: primary marketing model designation SE4022, unique factory production tracking part number KJ3243X1-BK1. Hardware compatibility is strictly limited to Emerson DeltaV Series 2 Plus control rack backplane bus hardware, and cannot be mounted on earlier DeltaV S-Series or Series 1 rack structures. The core processing unit adopts a 32-bit real-time operating system microprocessor optimized for low-latency industrial fieldbus data conversion. Internal memory allocation includes 64KB non-volatile flash memory for permanent storage of PROFIBUS communication firmware, bus baud rate configurations and slave node mapping parameters; 4KB high-speed volatile RAM serves as real-time data frame buffering for cyclic PROFIBUS DP data exchange cycles. The module draws operating power directly from the rack’s internal 12VDC backplane power rail, with a maximum steady-state operating current consumption of 600mA. Typical power draw under full bus load with maximum slave count connected measures 1.8W. Supported PROFIBUS protocol layers cover PROFIBUS DP V0 for high-speed cyclic real-time process value transmission required for closed-loop control loops, and PROFIBUS DP V1 for acyclic on-demand operations including field device parameter read/write, advanced equipment fault diagnosis and smart transmitter calibration workflows. Configurable PROFIBUS bus transmission baud rate range covers all standard industrial rates from 9.6kbps up to 12Mbps, adjustable via DeltaV engineering workstation software without physical hardware reconfiguration. Single PROFIBUS trunk line capacity supports connection of up to 124 independent PROFIBUS DP slave node devices, with each slave’s input/output process data individually mapped to dedicated memory address points inside the DeltaV main controller through offline engineering configuration tools. A 2500VAC one-minute dielectric withstand galvanic isolation barrier separates the internal DeltaV rack bus circuit and the external PROFIBUS fieldbus wiring circuit, eliminating ground loop noise and transient voltage cross-coupling between geographically separated central control room racks and field-mounted slave equipment. Continuous rated operating ambient temperature range is -20°C to +60°C; off-power long-term warehouse storage temperature extends to -30°C to +70°C. All printed circuit board assemblies receive full ISA G3 acrylic conformal coating to resist degradation from cabinet humidity, industrial acid and sulfur vapor, and accumulated fine dust sediment. Mechanical enclosure protection rating reaches IP20, designed solely for fully enclosed indoor control cabinet installation, not suitable for open workshop or outdoor hazardous area deployment. Mounting form factor follows standardized DeltaV Series 2 vertical rack slot plug-in modular dimensions, fully compatible with all 8-slot and 16-slot Series 2 Plus control rack backplane assemblies. Single module net physical weight measures 0.2kg without external PROFIBUS cable connections. Manufacturing origin is Thailand, with complete batch and serial number traceability embedded within the module’s internal firmware and printed serial label on the front panel. Global compliance certifications include CE electromagnetic compatibility certification, UL industrial control safety certification, and official PROFIBUS International conformance certification verifying full adherence to standardized PROFIBUS DP protocol specifications.

Dual-way protocol conversion gateway functionality serves as the core hardware capability, seamlessly translating proprietary DeltaV rack backplane bus digital data frames into industry-standard PROFIBUS DP protocol telegrams for transmission to field slave devices, while simultaneously converting PROFIBUS slave measurement, status and diagnostic data packets back into DeltaV-native bus data frames for delivery to the DCS main process controller. The module fully supports dual-mode PROFIBUS DP protocol operation: cyclic V0 communication delivers constant millisecond-level real-time exchange of process input/output values mandatory for continuous closed-loop industrial process control; acyclic V1 communication enables on-demand non-real-time access to field device internal parameters, extended fault diagnostic registers and calibration adjustment data without interrupting cyclic control data transmission cycles. High-capacity PROFIBUS slave node management architecture supports up to 124 individual PROFIBUS DP slave nodes on a single fieldbus trunk line. Every slave device’s analog measurement values, discrete status signals and control output setpoints can be independently mapped to unique dedicated memory address registers within the DeltaV main controller through offline engineering workstation configuration software, enabling flexible custom signal mapping tailored to each production process control requirement. Hardware-implemented galvanic isolation barrier fully separates the low-voltage internal DeltaV rack backplane bus circuit and the external PROFIBUS fieldbus wiring circuit. This electrical isolation completely eliminates ground loop electromagnetic noise distortion induced by differing ground potential levels between central control room rack grounding busbars and field equipment grounding points located kilometers apart in process plant production zones. Comprehensive continuous real-time fieldbus diagnostic logic runs in parallel with normal cyclic data transmission workflows, constantly monitoring all critical PROFIBUS bus operating health parameters including bus communication error frame count, slave node online/offline connection status, trunk line short-circuit and open-circuit wiring faults, baud rate matching errors and communication timeout failures. All detected bus fault codes, faulty slave node physical addresses and precise fault occurrence timestamps are automatically transmitted to the DeltaV central operator station graphical interface with clear text fault descriptions, enabling maintenance personnel to rapidly locate and resolve fieldbus communication failures without manual on-site bus testing equipment. Full hot-swap plug-and-play hardware design supports online module replacement while the entire DeltaV DCS system remains fully operational without shutting down process control loops or interrupting other rack module communication channels. When the SE4022 module is removed and replaced with a new identical unit, pre-saved PROFIBUS bus configuration parameters stored within the DeltaV controller’s non-volatile memory automatically load to the replacement module immediately after power restoration, eliminating the need for full bus reconfiguration after maintenance replacement work. Built-in hardware-level surge and electrostatic discharge protection circuits are integrated onto the PROFIBUS fieldbus signal terminal block, delivering 8kV contact ESD suppression and 2kV surge voltage withstand performance to protect internal microprocessor and communication chip components from lightning-induced transient voltage spikes and electrostatic discharge damage originating from long-distance fieldbus cable wiring runs. Full PCB ISA G3 conformal coating treatment provides long-term environmental barrier protection against high cabinet relative humidity, industrial corrosive chemical vapor accumulation and fine dust particle sedimentation inside process plant central control room cabinet enclosures, extending total hardware service lifespan under continuous 24/7 industrial facility operating cycles.

All PROFIBUS DP field slave devices including variable frequency drives, smart valve positioners and remote I/O modules connect to the SE4022 module’s external PROFIBUS fieldbus terminal block via shielded twisted-pair PROFIBUS bus trunk cables. The module’s internal 32-bit real-time microprocessor continuously executes two parallel core processing workflows: cyclic PROFIBUS DP V0 real-time data exchange and acyclic PROFIBUS DP V1 on-demand diagnostic/parameter access. For outgoing control data transmission from the DeltaV controller to field slave devices: the DeltaV main process controller sends target analog output setpoints and discrete digital control command data frames through the rack rear backplane bus to the SE4022 module’s internal bus receiving circuit. The microprocessor extracts the mapped slave node data values from incoming DeltaV bus frames, reorganizes the extracted data into standardized PROFIBUS DP cyclic output telegrams formatted to match each target slave device’s defined input/output data structure, then transmits the assembled PROFIBUS telegrams outwards through the galvanically isolated fieldbus signal circuit onto the external PROFIBUS trunk line for reception by the corresponding field slave node hardware. For incoming field measurement and status data transmission from field slave devices back to the DeltaV controller: each PROFIBUS slave device periodically transmits cyclic input telegrams containing real-time process measurement values, equipment operating status flags and basic fault indicator bits onto the PROFIBUS trunk line. The SE4022 module’s fieldbus receiving circuit captures all incoming slave telegrams, filters out irrelevant telegrams from unconfigured slave node addresses, parses valid measurement and status data values from received PROFIBUS telegrams, then repackages the parsed field data into proprietary DeltaV backplane bus data frames formatted to match the pre-configured memory mapping addresses inside the DeltaV main controller. The repackaged DeltaV-compatible data frames are transmitted through the rack backplane bus to the main process controller, which executes closed-loop process control logic, alarm limit comparison and equipment status monitoring based on the received field measurement data streams. When maintenance personnel initiate acyclic PROFIBUS DP V1 communication requests via the DeltaV engineering workstation software or asset management platform, the microprocessor temporarily suspends low-priority background bus diagnostic processing while generating targeted acyclic PROFIBUS read/write telegrams to retrieve or modify internal parameter registers on specified field slave devices. All acyclic communication response data returned from slave devices is repackaged into DeltaV bus data frames and uploaded to the engineering workstation for maintenance review and parameter adjustment operations, without disrupting the uninterrupted cyclic V0 real-time control data transmission cycles critical to continuous industrial process operation. The integrated galvanic isolation barrier between internal rack bus circuits and external fieldbus wiring physically blocks any transient voltage surges, ground loop noise currents or electrostatic discharge pulses originating from the fieldbus trunk line from propagating into the sensitive low-voltage DeltaV rack backplane bus circuit, preventing permanent damage to rack controller and I/O module communication chips. Parallel continuous fieldbus diagnostic circuitry constantly samples PROFIBUS bus signal integrity parameters, frame error rates and slave node connection status; upon detection of any abnormal bus operating fault condition, the microprocessor generates standardized fault identification data frames containing detailed fault location and fault type information, which are transmitted through the rack backplane bus to the DeltaV central operator station to trigger visual and audible maintenance alarm notifications.
