Product Short Description
Product Brief Introduction

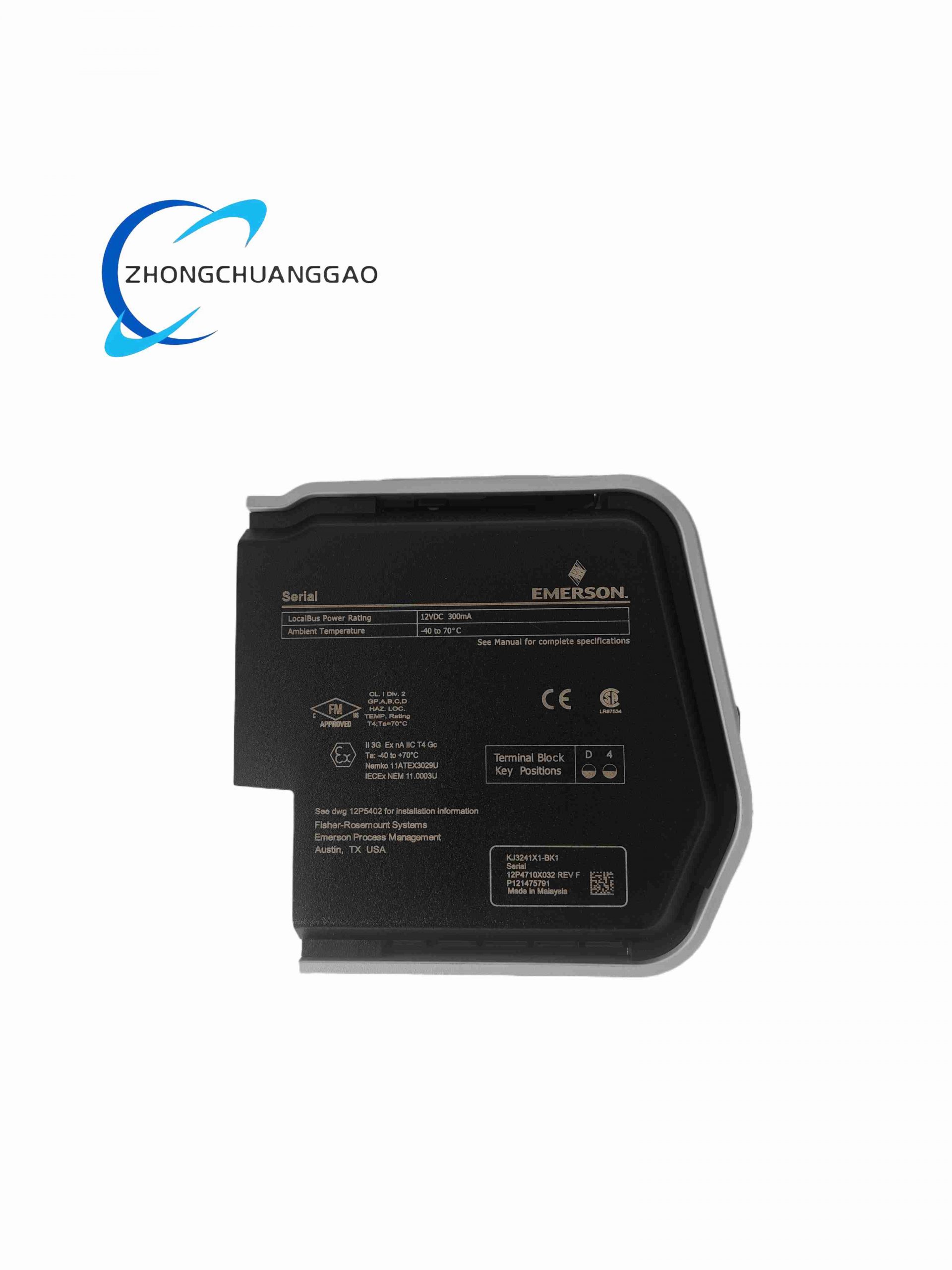

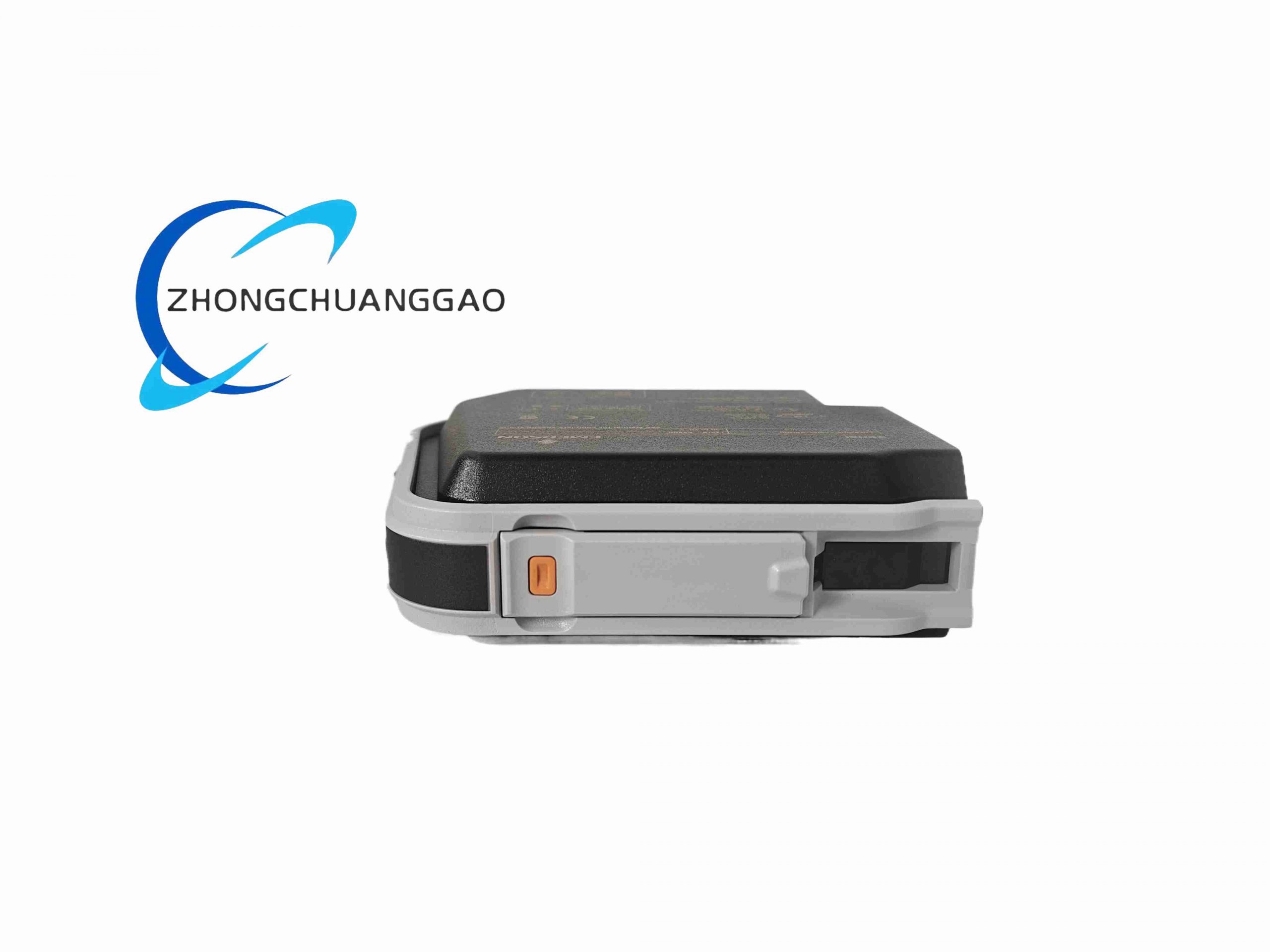

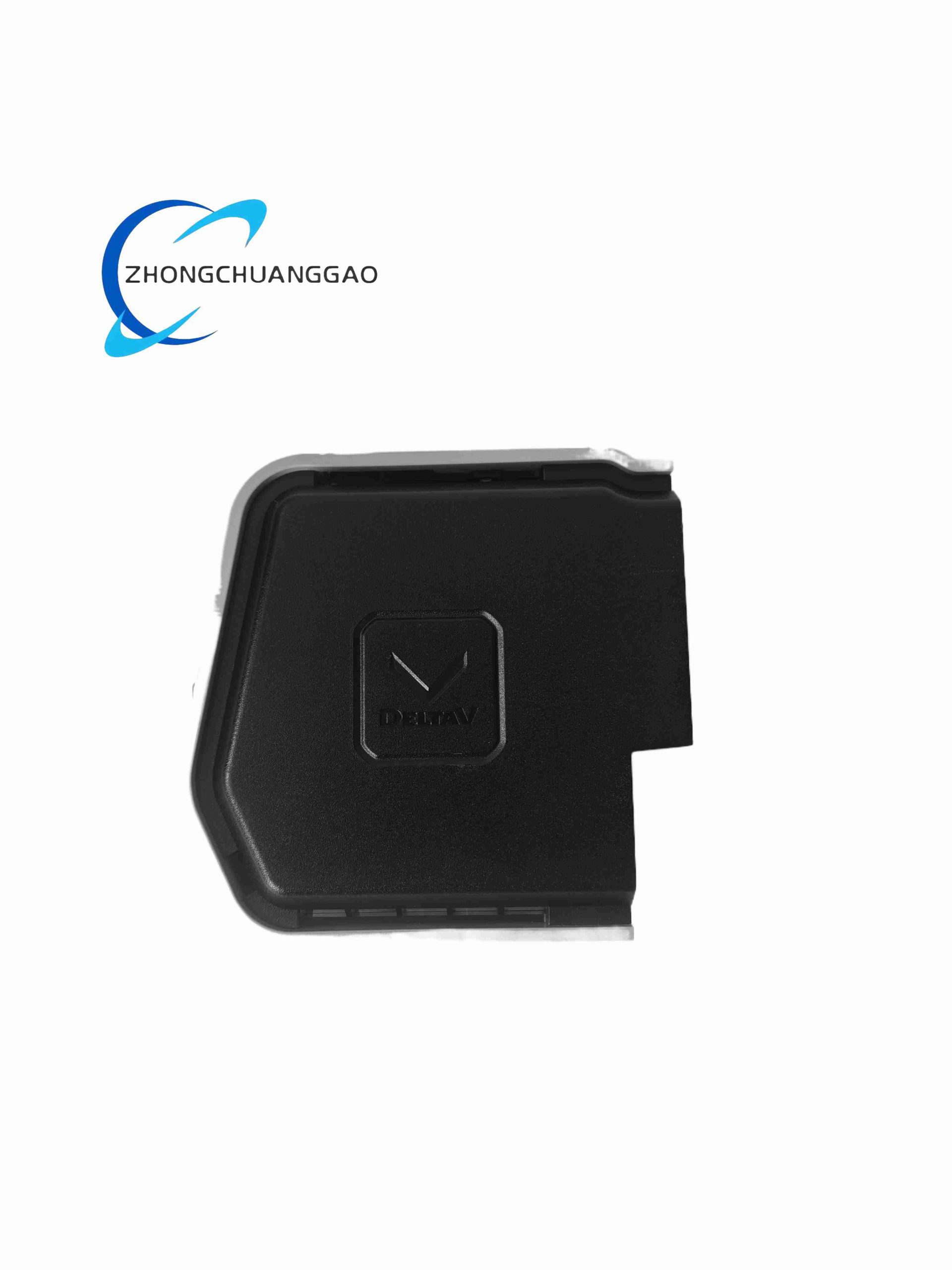

SE4006P2 is a core digital output card for Emerson DeltaV distributed control system, designed to drive field discrete actuators in process industrial environments. It delivers isolated 24VDC switching signals to solenoid valves, contactors, relays and small motor starters, supporting hot-swap online replacement without full system shutdown, optimized for continuous critical process control.
Description
Core Technical Specifications
- Channel Quantity: 8 independent galvanically isolated discrete output channels
- Power Supply: 24VDC nominal (20–28VDC operating range)
- Electrical Load Rating: Continuous 1A per channel; 6A surge current for max 20ms inductive loads
- Isolation Grade: 1500VDC channel-to-backplane optical isolation
- Communication Rate: Backplane bus up to 115200bps; Modbus RTU/ASCII serial expansion supported
- Response Latency: ≤50ms full channel switching cycle
- Operating Temperature: -40°C ~ +85°C
- Humidity Tolerance: 5%–95% RH non-condensing
- Vibration Standard: 1mm peak-to-peak 5–16Hz; 0.5g 16–150Hz
- Protection Rating: IP20 (cabinet-only installation)
- Dimension: Standard DeltaV 1-slot I/O card size (120mm×45mm×180mm)
Function Features
- Multi-mode output configuration: continuous level output, momentary pulse output, timed pulse output configurable via DeltaV workstation
- Per-channel short-circuit overcurrent self-protection with fault LED indicator
- Full hot-swappable design, no power cut required for single module maintenance
- Built-in channel loop integrity diagnosis, automatically report open-circuit/short-circuit field wiring faults
- Supports redundant dual-module pairing for ultra-high availability process loops
- EMI/EMC industrial grade filtering to resist high-frequency motor and transformer interference
- HART signal pass-through compatible with hybrid digital-analog field devices
Working Principle
The module receives digital logic commands from DeltaV system backplane bus via internal ASIC processor. Each channel converts low-voltage logic control signals to isolated 24VDC drive power through optocoupler isolation circuits. Internal current sensing resistors monitor channel load current in real time; once overload or short circuit is detected, hardware fast-cut circuit triggers within 20μs to lock output and trigger fault alarm signal transmitted back to control workstation. Optical isolation eliminates ground loop potential between DCS cabinet and field explosion-proof equipment.
Material Composition
- Housing: Flame-retardant black PC engineering plastic, UL94-V0 fire resistance
- PCB Substrate: High TG FR4 industrial circuit board with full epoxy conformal coating
- Internal Semiconductors: Industrial-grade optocouplers, power MOSFET switching tubes, multi-layer surge absorption TVS diodes
- Terminal Connectors: Gold-plated phosphor copper spring terminals for anti-corrosion long-term contact
- Heat Dissipation Structure: Integrated aluminum alloy heat sink strip on power stage area
Structural Characteristics
- Standard DeltaV plug-in card form factor, front wiring terminal block with lockable screw terminals
- Front panel multi-color LED array: power indicator, module running status, per-channel fault indicator
- Backplane gold finger connector with dustproof anti-oxidation coating
- Side integrated ventilation slot for passive heat dissipation without auxiliary fan
- Card lock buckle for fixed installation on DeltaV I/O carrier rack
Installation Requirements
- Install exclusively inside DeltaV standard I/O cabinet, mounted on DIN rail carrier slot
- Maintain ≥30mm vertical ventilation gap between adjacent power-intensive modules
- Field wiring must adopt 18–22AWG shielded twisted pair cable, shield single-point grounded at cabinet ground bar
- Strictly follow polarity of 24VDC field load power supply, reverse polarity will trigger channel self-protection
- Cabinet ambient temperature must not exceed 70°C under continuous full load operation
- For redundant configuration, install two SE4006P2 in adjacent paired slots of carrier rack
Application Scenarios
- Oil & gas upstream/downstream: Emergency shutdown solenoid valve control, pump motor contactor switching
- Chemical processing: Reactor feed valve interlock, cooling fan discrete control
- Thermal power plant: Boiler auxiliary equipment interlock, soot blower valve logic drive
- Water treatment: Chemical dosing pump relay control, filter backwash valve switching
- Pharmaceutical process: Sterilization tank safety interlock actuators
Operation & Maintenance Precautions
- Do not disassemble module housing; no user-serviceable internal components
- Cut off field load power before plugging/unplugging module to avoid surge current damage
- Regularly clean terminal block dust every 6 months in dusty industrial environments
- Avoid installing within 50cm of high-voltage frequency converters to prevent signal distortion
- Replace module immediately if multiple channel fault lights persist after wiring inspection
- Do not connect capacitive load exceeding 100μF directly to output channels without external discharge resistance
- Storage environment temperature limited to -45°C ~ +90°C, humidity below 80% RH
