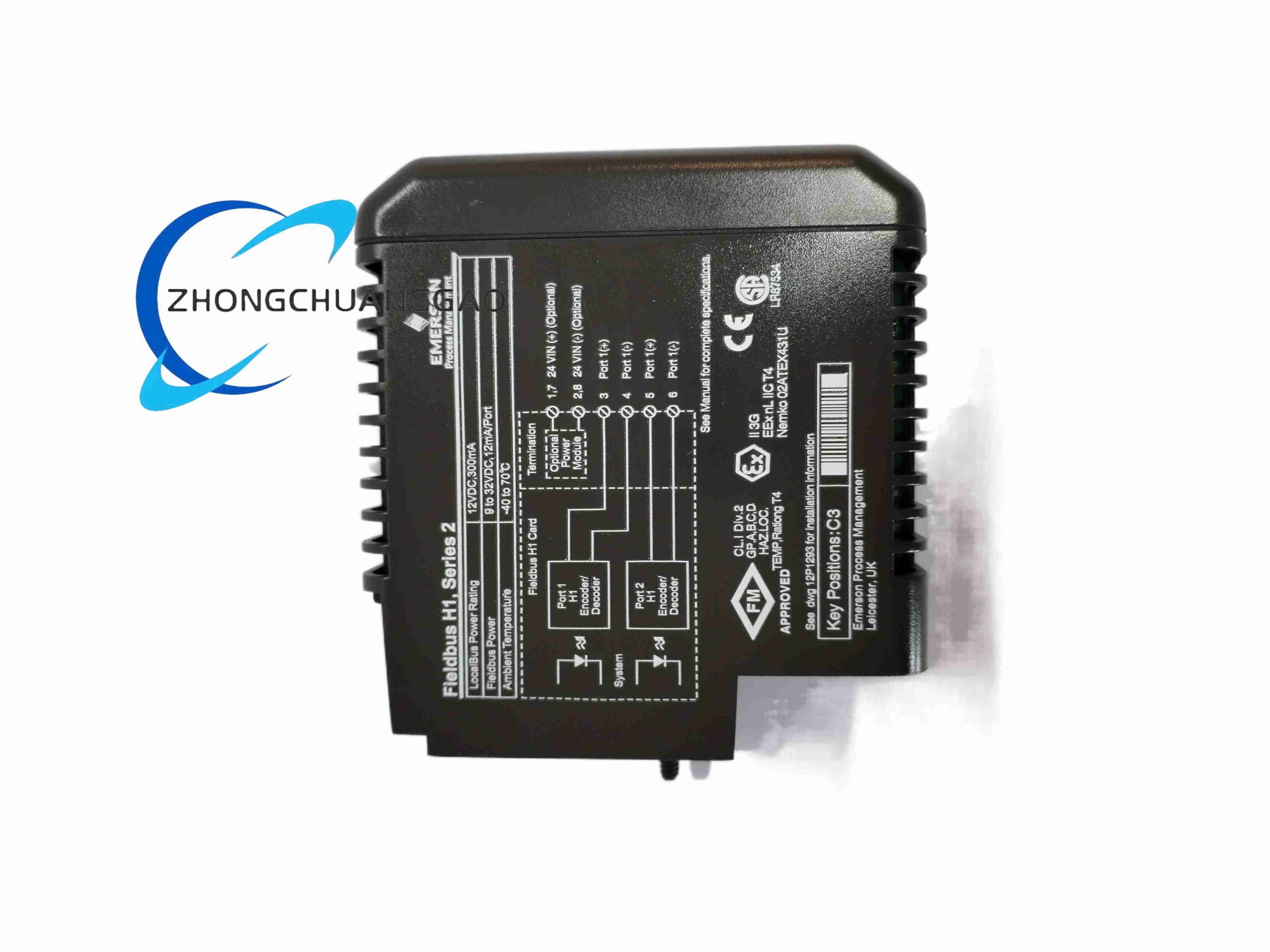

Emerson KJ3242X1-BA1

Core Technical Performance Parameters

• Backplane LocalBus Power: 12VDC, 300mA power consumption
• H1 Fieldbus Loop Supply: 9–32VDC, maximum 12mA output per fieldbus port
• Fieldbus Standard Compliance: FOUNDATION Fieldbus H1 IEC 61158-2, 31.25kbps fixed baud rate
• Maximum Field Devices Per H1 Loop: 32 fieldbus instruments
• Cable Length Limit: 1900 meters with 18AWG shielded fieldbus cable
• Operating Temperature: -40°C ~ +70°C
• Shock/Vibration Standard: Identical to KJ3241X1-BK1 (10g shock, 0.7g vibration)
• Hazardous Location Certification: ATEX II 3G Ex ec IIC Gc, FM Class I Div.2 T4
• Contamination Grade: ISA-S71.04 G3 industrial heavy pollution environment
• Relative Humidity: 5%–95% non-condensing
• Alternate Part Number: 12P2471X042
• Net Weight: 0.35kg

Functional Features

1. Intrinsically safe limited energy fieldbus circuit design, suitable for Zone 2 flammable gas environment installation
2. Built-in H1 bus power supply short-circuit protection and current limiting circuit
3. Multi-channel hardware isolation between backplane logic and fieldbus loop circuits
4. Full real-time module self-diagnosis: bus short circuit, cable open circuit, device communication timeout, bus power under-voltage fault reporting

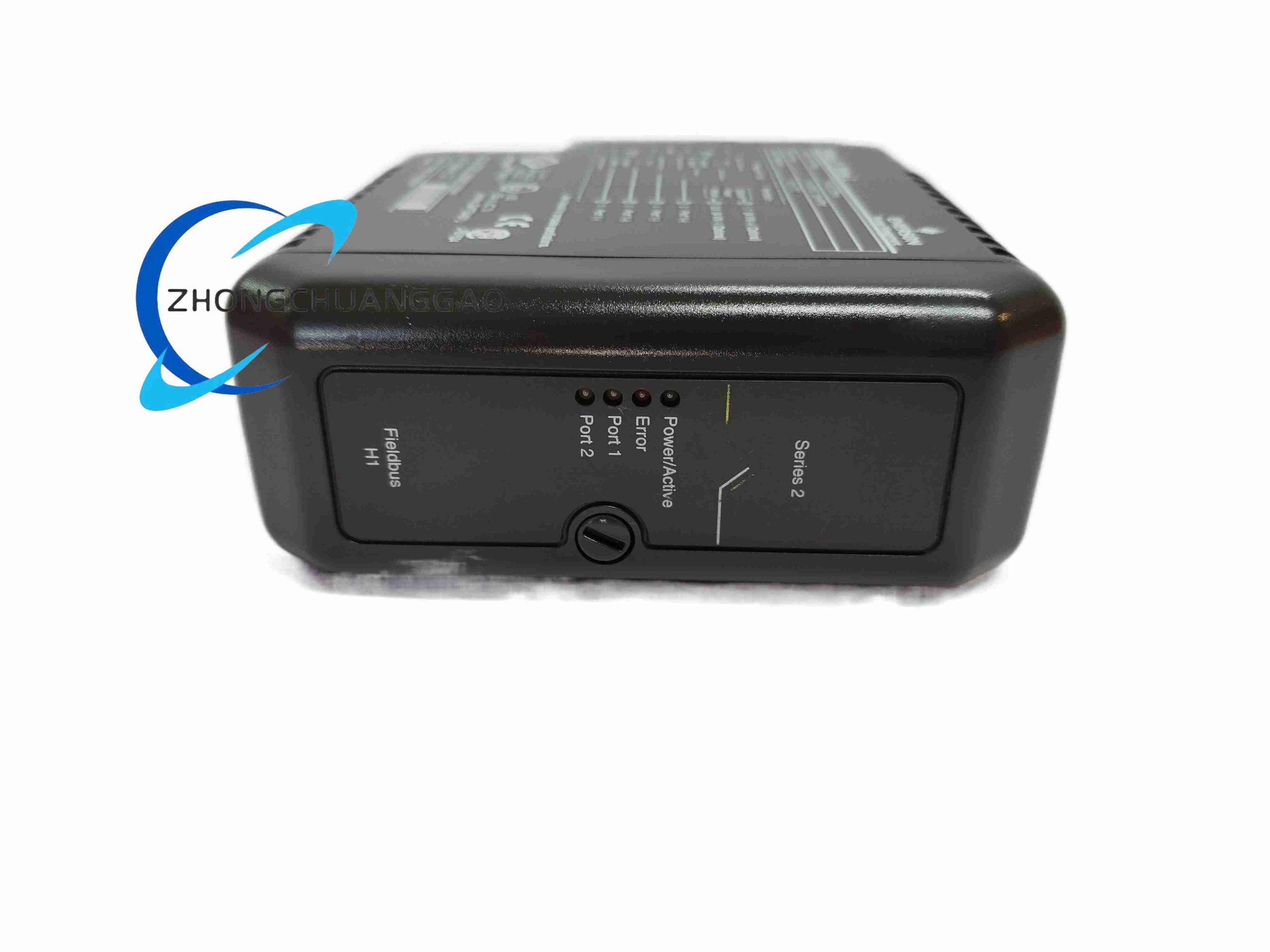

5. Front panel LED group: backplane power indicator, H1 bus communication activity light, general fault alarm LED
6. Hot-swappable modular design, replacement without full rack power cut-off
7. Supports H1 bus segment scheduling, function block download and field device parameter upload/download via DeltaV control workstation
8. Built-in bus signal noise filtering circuit for heavy industrial EMI environment

Working Principle

Material Composition & Structural Characteristics

• Outer Enclosure: UL94 V-0 flame retardant anti-static black ABS plastic housing
• PCB Substrate: FR4 double-layer gold-plated anti-corrosion circuit board
• Isolation Hardware: Reinforced isolation optocouplers, 2500VAC dielectric strength
• Backplane Connector: Gold-plated copper edge contact strip for low-resistance bus connection
• Mechanical Fastening: Stainless steel spring latch for rack mounting fixation

Installation Requirements

1. Install on standard DeltaV 8-slot vertical carrier rack, matched with D6 keyed KJ3242X1 series terminal block
2. H1 fieldbus cable must use dedicated FOUNDATION Fieldbus shielded twisted-pair cable, shield single-point grounded at cabinet earth bar
3. Hazardous area wiring must strictly comply with limited energy circuit parameter limits specified in ATEX installation manual
4. Maintain 20mm vertical ventilation gap between adjacent modules for heat dissipation
5. Cabinet protective earth bus must be connected with minimum 4mm² copper conductor

Application Scenarios

• Refinery and petrochemical plant FOUNDATION Fieldbus H1 instrument control loops
• Natural gas pipeline compressor station fieldbus pressure and flow monitoring
• Chemical reaction kettle H1 temperature transmitters and control valve positioners
• Offshore platform process safety fieldbus measurement equipment
• Fertilizer plant ammonia synthesis process intrinsic safety fieldbus control system

Operation & Maintenance Precautions

1. Never disassemble module outer housing; internal circuits contain high-precision communication chips without user maintenance parts
2. Cut off fieldbus loop power before connecting or disconnecting field instruments
3. Do not mix H1 fieldbus wiring with high-voltage power cables in the same cable tray
4. Regularly check bus fault LED status during daily cabinet inspection
5. Avoid storage environment with high sulfur or chloride gas to prevent PCB corrosion
6. All H1 bus topology design must comply with fieldbus maximum cable length and device quantity limits
