Product Short Description
Product Brief Introduction

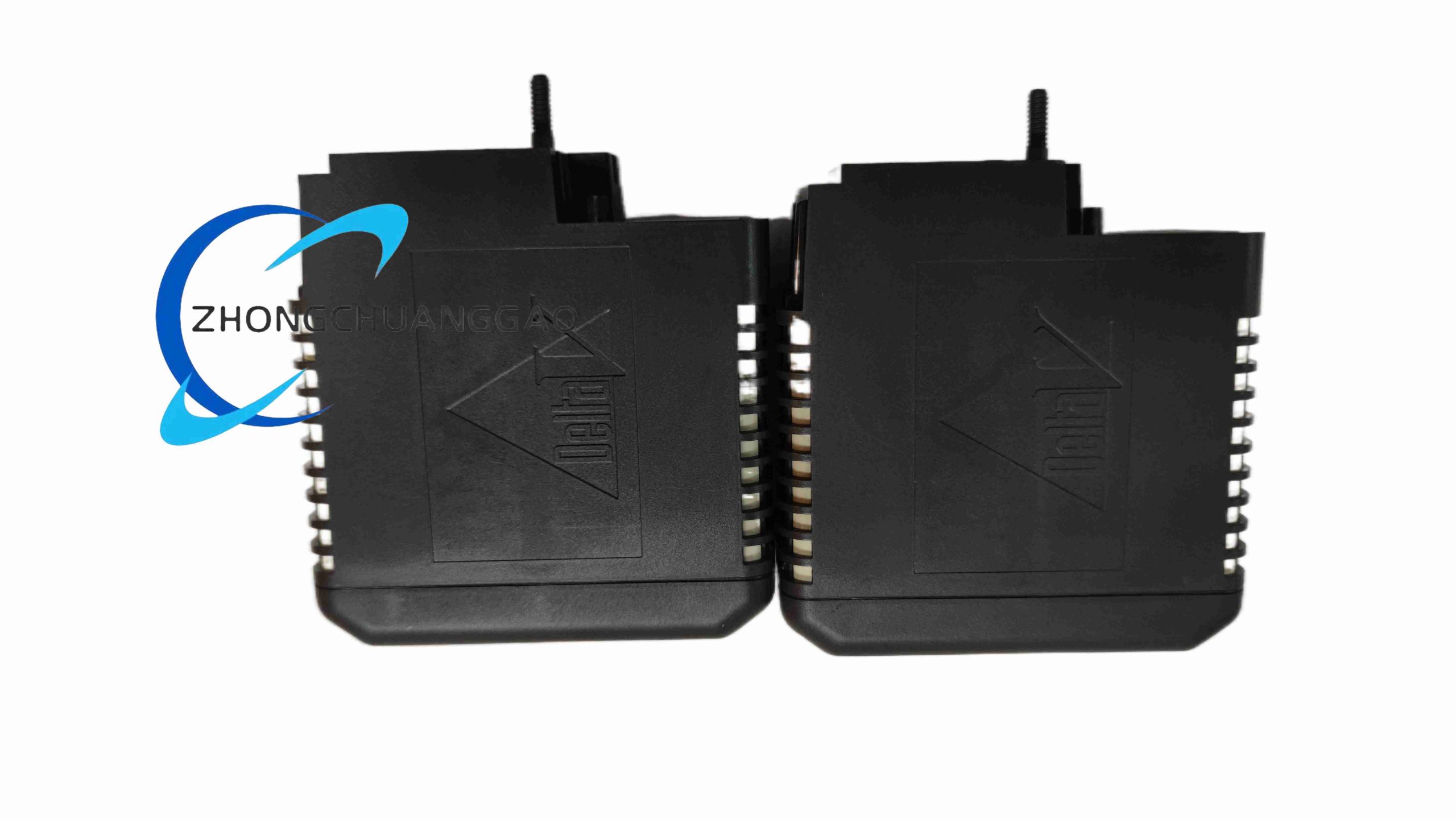

8-channel isolated digital output terminal block to drive AC/DC field actuators including solenoid valves, contactors and indicator lights, matched with DeltaV DO function cards, with built-in channel short-circuit protection and status LED feedback.
Description
Technical Specifications
- Output Channel Count: 8 independent isolated output channels
- Supported Load Voltage: 24VDC / 120VAC mixed load compatibility
- Per-channel Maximum Load Current: 1 A resistive load, 0.3 A inductive load
- Galvanic Isolation: 2000 VAC between backplane and field load circuits
- Protection: Per-channel self-resetting fuse for short-circuit load faults
Material & Structure
UL94 V-0 flame retardant plastic enclosure, screw cage terminals, ventilation heat dissipation slots, front panel power and channel fault LED indicators.
Working Principle
Digital logic signals from DeltaV DO function cards trigger internal solid-state switching circuits (optocoupler isolated triac/MOSFET) to connect/disconnect field load power supply, achieving on/off discrete equipment control. Short-circuit current triggers channel fuse protection without affecting adjacent output channels.
Application Scenarios
- Process valve solenoid drive, local cabinet alarm light control, small motor contactor coil actuation
- Chemical batch processing, water wastewater treatment plant discrete output control
Installation Requirements
- Mounted on standard DeltaV I/O chassis backplane, hot-swap supported
- Inductive loads (solenoids, coils) must install external freewheeling diode surge suppression components
