Product Short Description
Product Brief Introduction

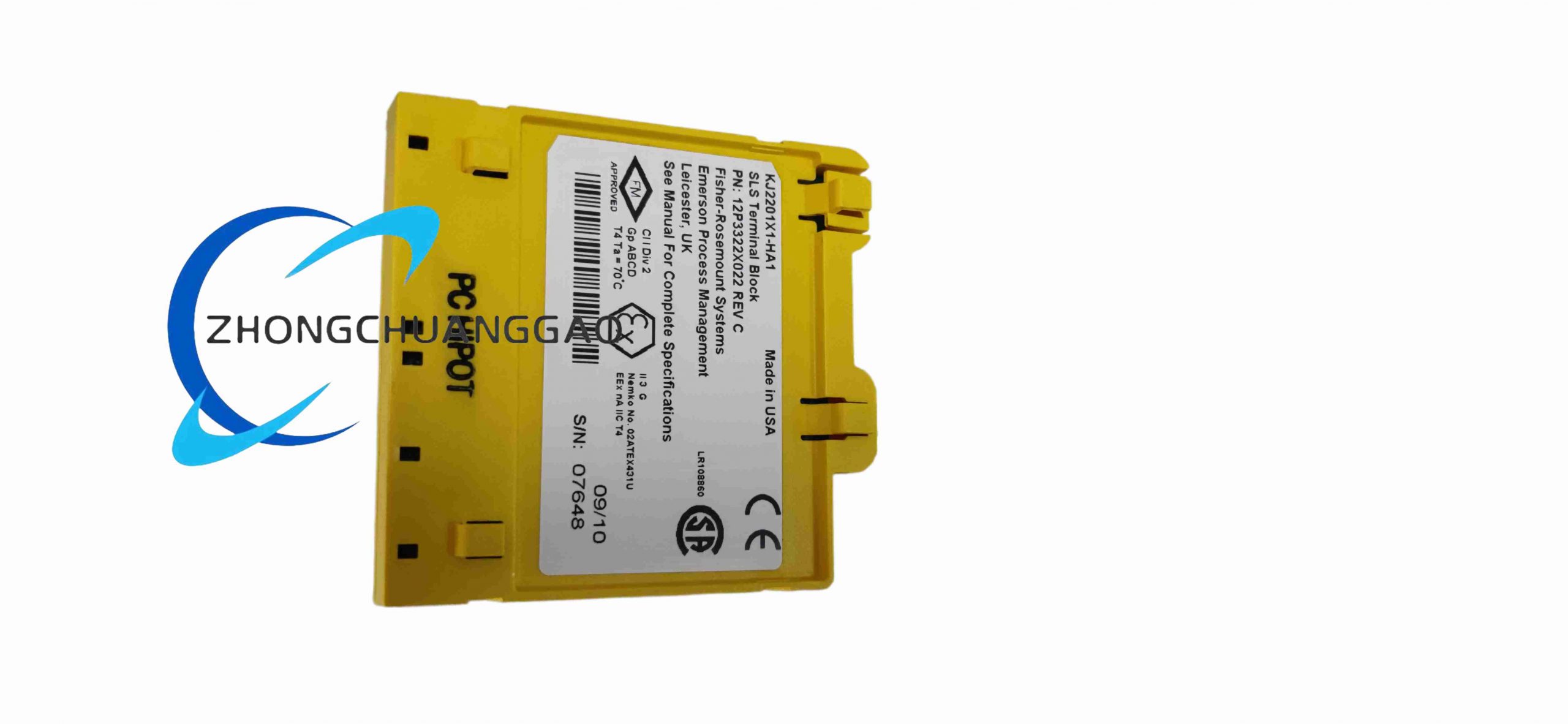

This terminal block mates with DeltaV AI analog input cards to provide field wiring termination for 4–20mA transmitters with HART digital communication. It delivers full galvanic isolation between field instrument loops and control system backplane, supports hot-swappable maintenance, and integrates strain relief wire routing and transparent short-circuit protection cover.
Description
Technical Specifications
- Signal Type Compatibility: 2-wire / 4-wire 4–20mA analog transmitters, HART 5 / HART 7 protocol compatible
- Channel Isolation: Each channel isolated at 1500 VAC channel-to-backplane, channel-to-channel partial isolation
- Field Loop Supply: 24 VDC loop power supply output to field transmitters

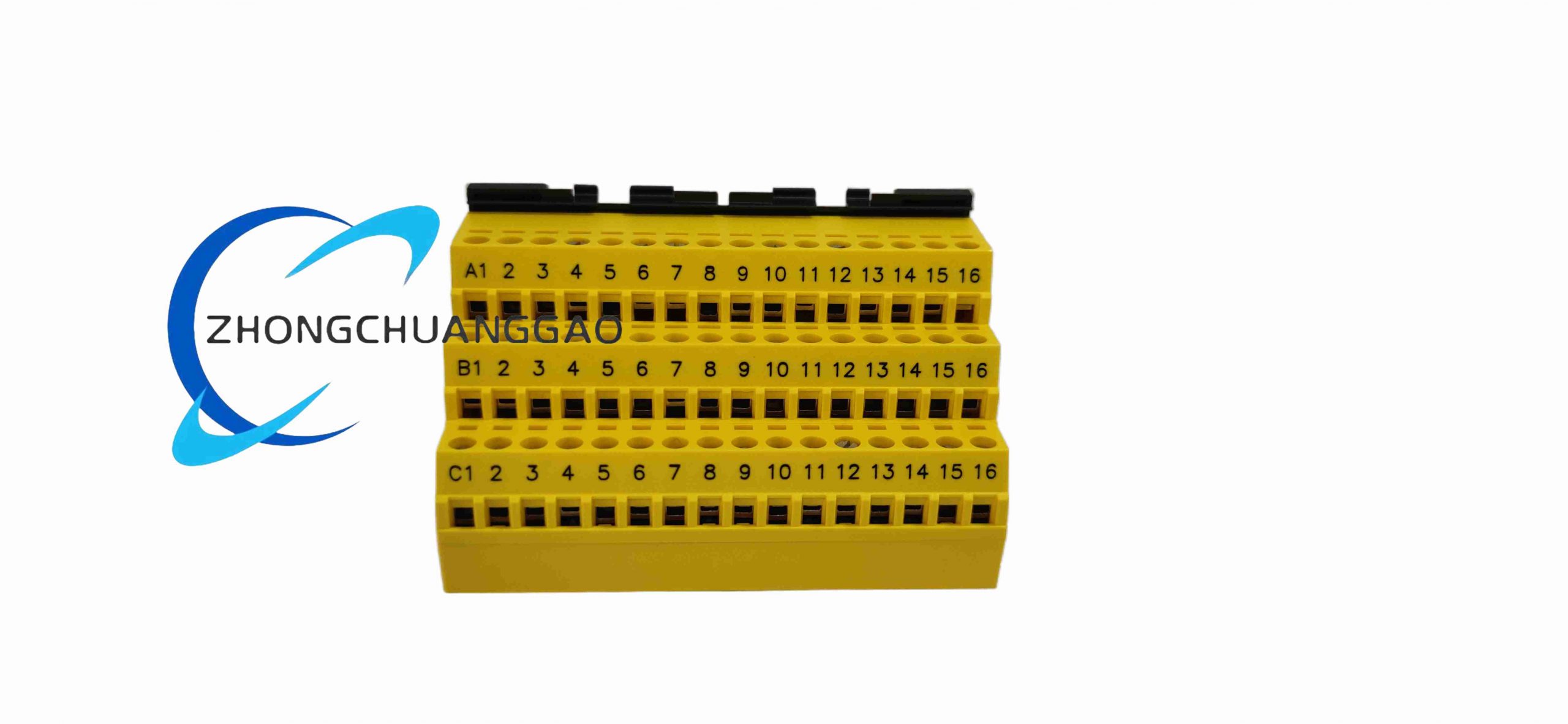

- Terminal Type: Screw-clamp terminals supporting 0.5mm² ~ 2.5mm² copper field cables
- Built-in Diagnostic: Per-channel open-circuit detection, short-circuit fault reporting via DeltaV system software
- Operating Temperature: 0 °C to +60 °C
- Environmental Rating: IP20 for cabinet internal installation
Structural & Material Features
- UL94 V-0 flame retardant plastic housing
- Transparent removable terminal cover to prevent accidental wiring short-circuits
- Internal optocoupler isolation components separating field and control circuit grounds
- Matching mechanical key lock to prevent mismatched insertion with non-AI I/O cards
Working Principle
Field 4–20mA analog signals with superimposed HART digital modulation enter screw terminals, pass through overvoltage surge suppression circuits and optoelectronic isolation barriers before transmitting analog current signals to the paired DeltaV AI I/O card. HART digital data is extracted and routed to the controller for AMS asset predictive maintenance diagnostics.
Applications
- Flow meter, pressure transmitter, temperature RTD transmitter signal collection
- Chemical, petrochemical, power plant continuous process analog measurement loops
- Safety instrumented system (SIS) secondary analog signal acquisition
Installation & Operation Notes
- Match exclusively with KJ22xx series analog input function cards; mechanical key prevents cross-mounting with digital I/O cards
- All field cable shielding must single-point ground inside control cabinet only
- Hot-swap replacement allowed without shutting down field transmitter loops
